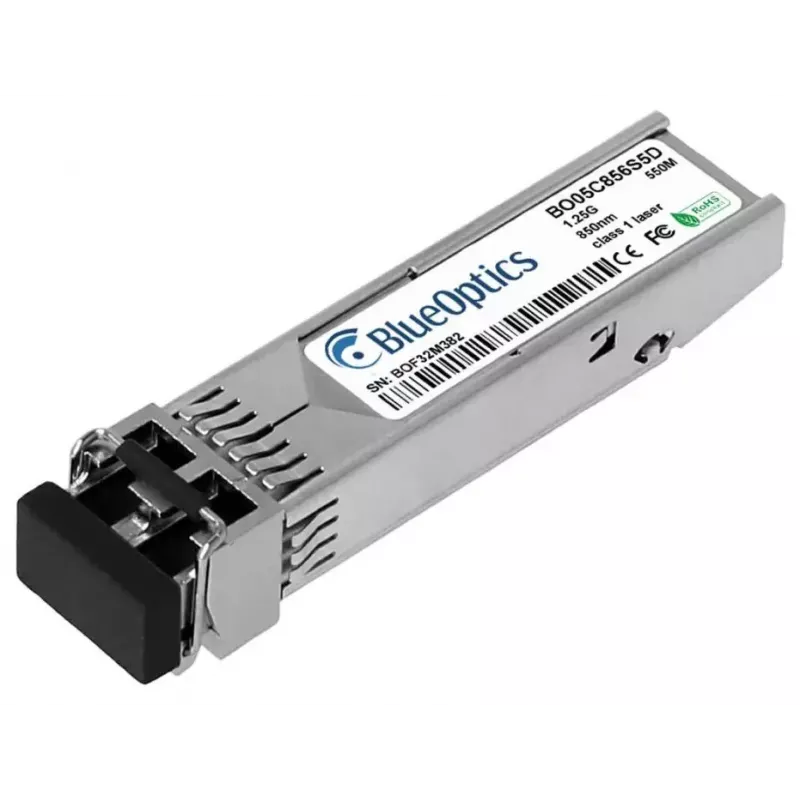

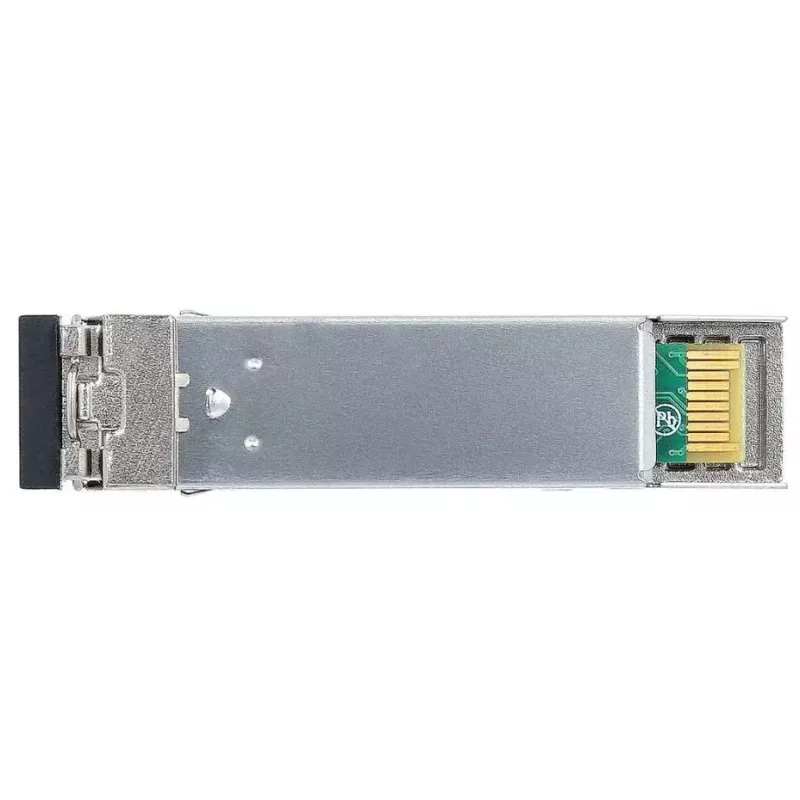

SFP transceiver module BlueOptics TRPUG1ESXC000E2G-BO 1250 Mbit/s

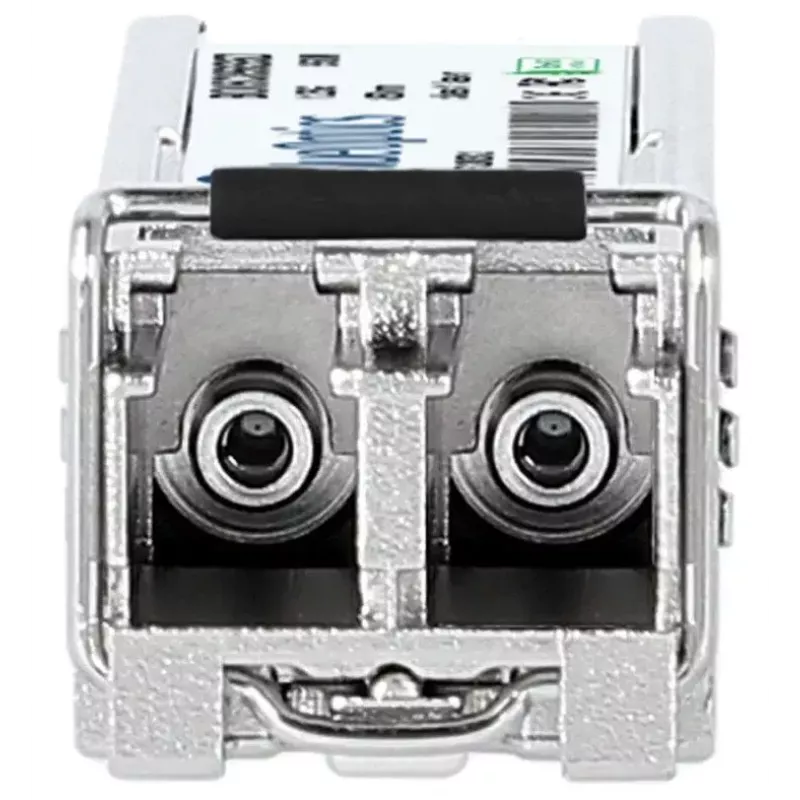

The BlueOptics TRPUG1ESXC000E2G-BO SFP transceiver module is a compact fiber optic pluggable transceiver designed for 1000Base-SX multimode links with a maximum data transfer rate of 1250 Mbit/s. Housed in a metal enclosure with a silver finish and weighing approximately 20 g, this SFP module provides a standardized LC duplex optical interface and complies with Multi-Source Agreement (MSA) form factor and electrical specifications for interoperable deployment in switches, routers and storage systems that support SFP optics.

Advantages

The module offers single-fiber transmit and receive paths using 850 nm optics suitable for multimode fiber and is engineered for long operational life with an MTBF around 1,000,000 hours. Its metal housing increases durability and EMI resistance, while the SFP form factor enables hot-pluggable installation. Digital diagnostics (DDM/DOM) support may be available depending on system compatibility, enabling remote monitoring of parameters such as supply voltage and optical power when the host hardware supports the feature.

Suitable for

Key specifications

How to use

Install the transceiver module into a compatible SFP slot on your switch, router or storage device while the host port is powered and supports SFP optics. Connect an LC duplex multimode fiber patch cord to the module’s optical ports, ensuring correct transmit/receive orientation. Verify link status and negotiated speed on the host device. If the host supports DDM/DOM, enable the monitoring interface in the system management software to observe real-time optical and electrical parameters. For safe handling, avoid touching the optical interfaces and keep dust caps on unused ports until connection.

Recommendations

Use high-quality multimode fiber and LC duplex patch cords matched to the module’s 850 nm wavelength to achieve optimal reach and signal quality. Confirm host device compatibility with 1000Base-SX SFP modules and DDM/DOM support before deployment. Perform link tests after installation and schedule periodic checks of optical power and diagnostics if available to maintain reliable operation.
