SFP transceiver module BlueOptics SFPX-0000-R00-BO 10000 Mbit/s 850 nm

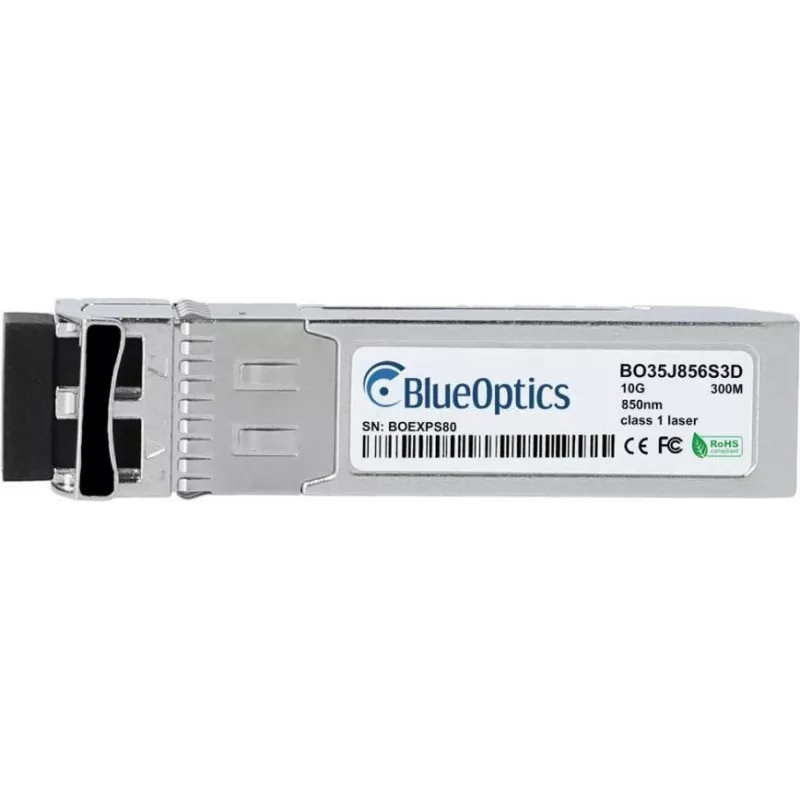

The BlueOptics SFPX-0000-R00-BO is an SFP+ fiber optic transceiver module designed for 10 Gbit/s (10000 Mbit/s) links over multimode fiber. It operates at an 850 nm wavelength and uses an LC duplex optical interface for simultaneous transmit and receive over separate fibers. The module is compact, lightweight (approx. 20 g) and finished in silver, intended for use in network switches, routers and storage systems that accept SFP+ form-factor transceivers.

Advantages

This SFP+ transceiver supports 10GBASE-SR applications and complies with common MSA SFP+ mechanical and optical form factors, providing straightforward insertion into compatible ports. The 850 nm VCSEL-based optical path is suited for short-range multimode fiber links, delivering high throughput with immunity to electromagnetic interference. The module’s lightweight metal housing aids thermal dissipation and mechanical protection while keeping overall weight minimal for dense port deployments.

Suitable for

Key specifications

How to use

Before installation, verify that the host device supports SFP+ transceivers and the 10GBASE-SR optical standard. Insert the BlueOptics SFPX-0000-R00-BO into an empty SFP+ port until it clicks into place, then connect LC duplex multimode fiber patch cords with the appropriate polarity. Power up the host device and check the link LEDs or management interface to confirm link negotiation at 10 Gbit/s. For removal, power down or disable the port if required by the host, release the transceiver latch and gently extract the module; replace dust caps on unused optical interfaces to prevent contamination.

Recommendations

Use multimode fiber of recommended grade (OM3/OM4 for best short-range 10G performance) and high-quality LC duplex patch cords to achieve specified reach and signal integrity. Ensure connectors and ports are clean before mating, and confirm host compatibility for SFP+ modules and digital diagnostics if monitoring is required.
