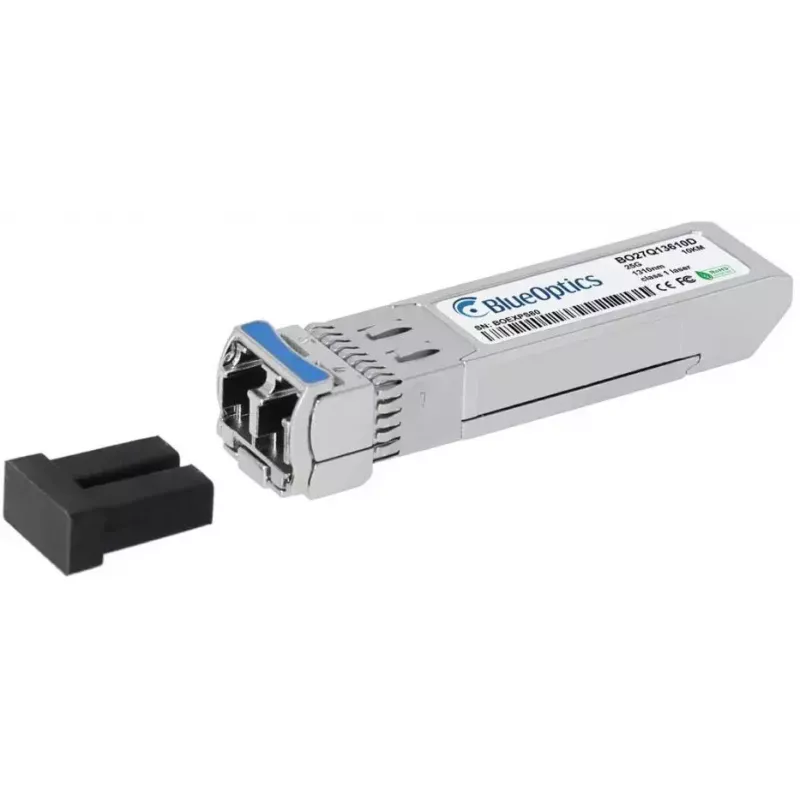

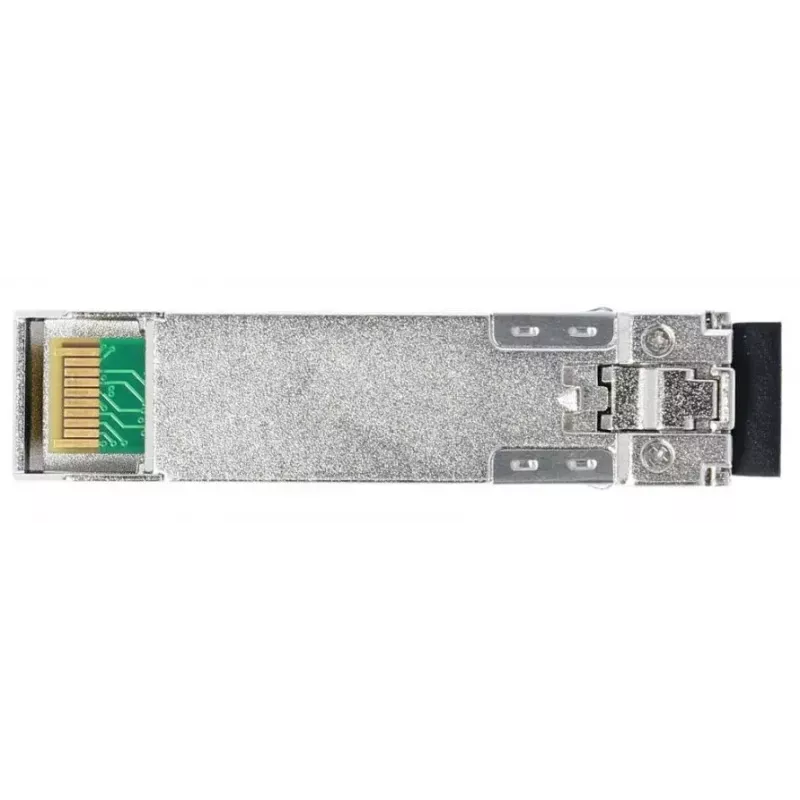

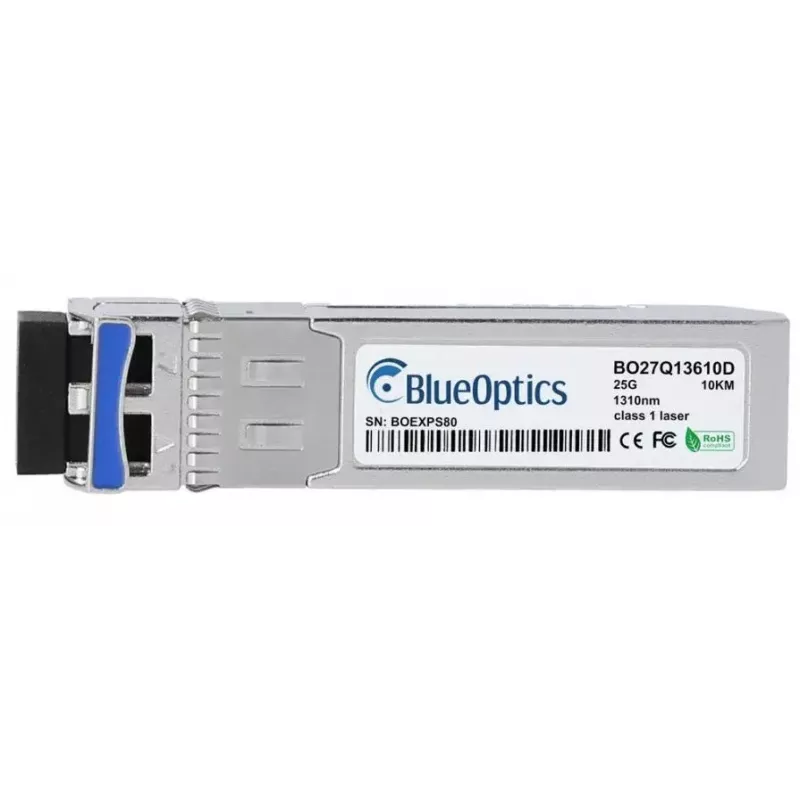

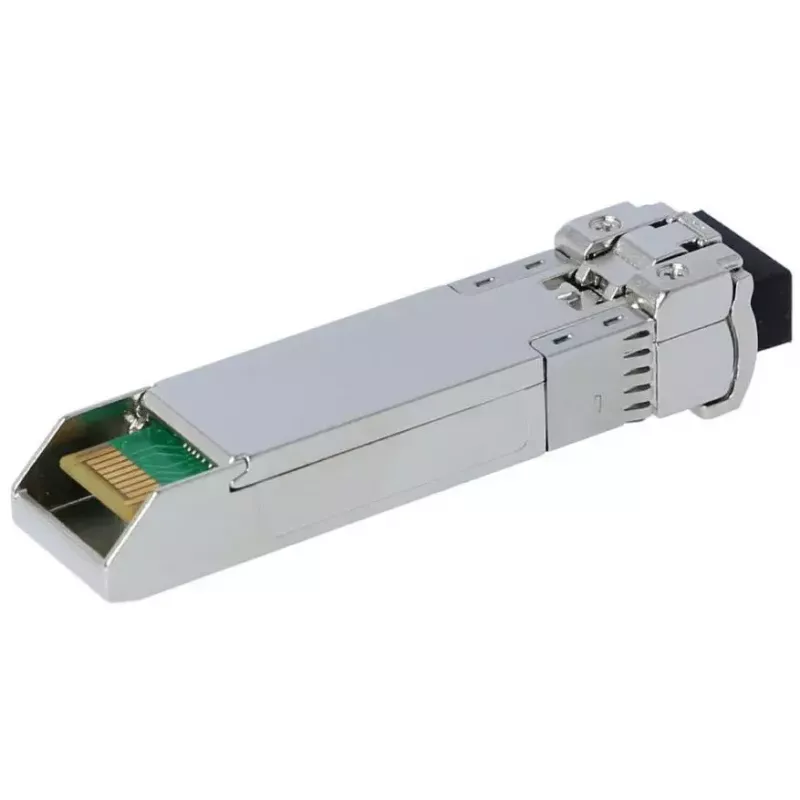

SFP transceiver module BlueOptics SFP28-25G-LR-NG-BO 10000 Mbit/s 1310 nm

The BlueOptics SFP28-25G-LR-NG-BO is a fiber optic SFP transceiver module designed for single-mode links with an LC duplex connector. It supports high-speed data transmission at up to 10,000 Mbit/s over distances to 10 km using a 1310 nm wavelength. Housed in a compact metal casing and powered by a 3.3 V input, the module is lightweight (approx. 2 g) and intended for use in network equipment that accepts SFP28 form-factor transceivers.

Advantages

This SFP28 module provides a standardized SFP28 interface and single-mode optical transmission, allowing interoperability with hardware platforms that support compatible 25GBASE-LR optics. The metal housing offers mechanical robustness and thermal stability. Low weight and industry-standard dimensions make the module easy to install in switches, routers and storage systems. The unit is suitable for applications requiring optical links up to 10 km and operates at a common telecom wavelength of 1310 nm.

Suitable for

• 10G/25G single-mode Ethernet connections with LC duplex cabling
• Optical uplinks between switches and routers up to 10 km
• Interconnects in data centers and storage networks supporting SFP28
• Environments requiring compact, metal-cased transceivers

Key specifications

• Interface type: SFP28
• Maximum data transfer rate: 10000 Mbit/s
• Wavelength: 1310 nm
• Maximum link distance: up to 10 km over single-mode fiber
• Connector type: LC duplex
• Supply voltage: 3.3 V
• Housing: metal casing
• Weight: approx. 0.002 kg

How to use

Insert the BlueOptics SFP28-25G-LR-NG-BO into an available SFP28-compatible port on the network device until it latches. Connect an LC duplex single-mode fiber cable ensuring correct transmit/receive orientation. Verify that the host device supports the SFP28 form factor and the relevant optical module before enabling the link. Configure link speed and protocol settings on the host platform as required by your network setup. Monitor link status through the device management interface.

Recommendations

Ensure the connected hardware officially supports SFP28 modules and, if required, enable Digital Diagnostics Monitoring (DDM/DOM) in the host device to access real-time optical and electrical parameters. Use quality single-mode LC duplex patch cords and follow proper fiber handling practices to maintain link performance and minimize insertion loss.
