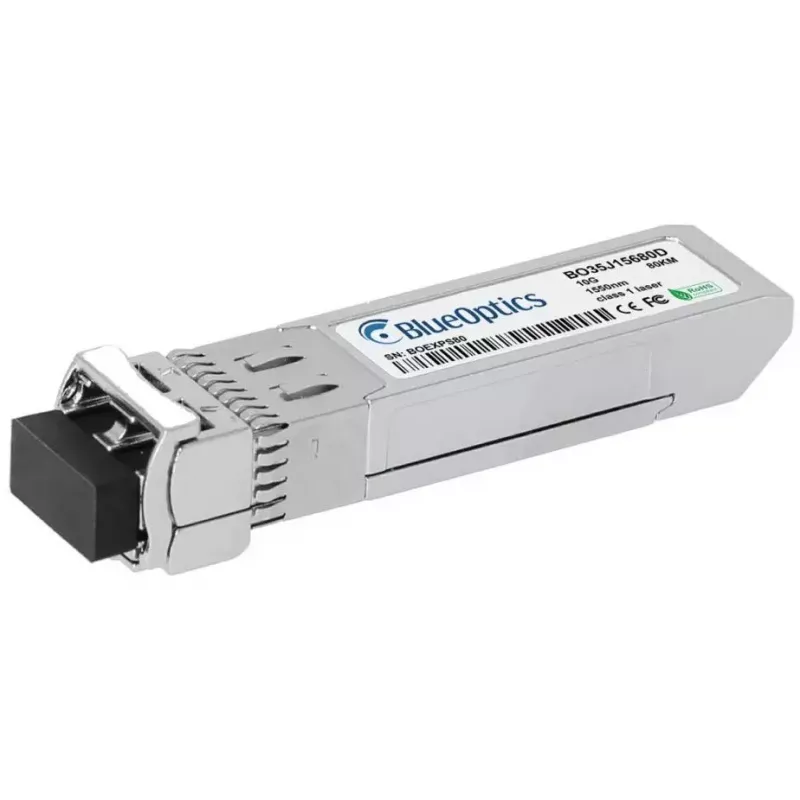

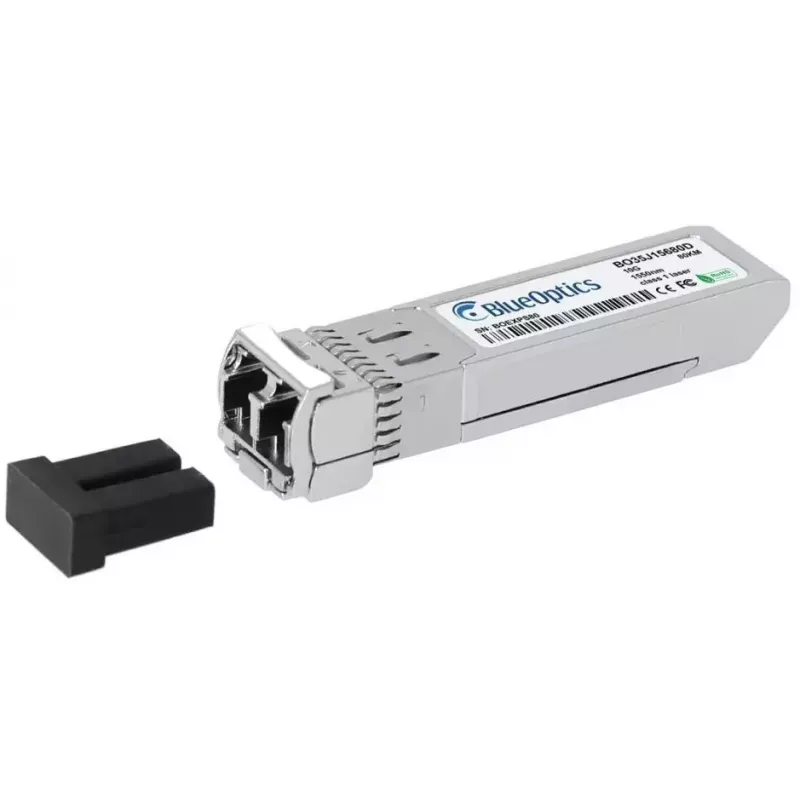

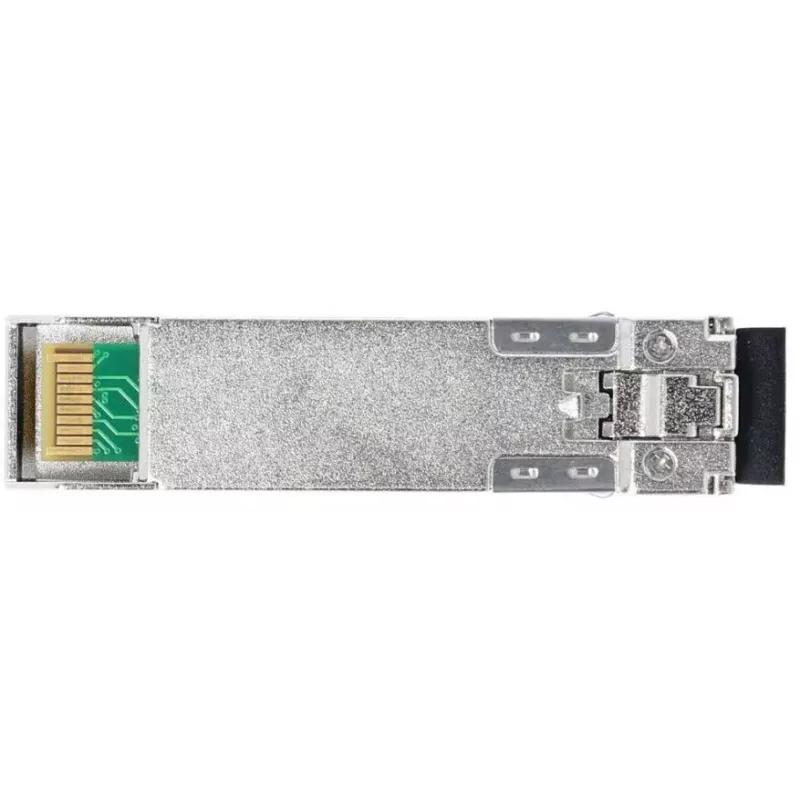

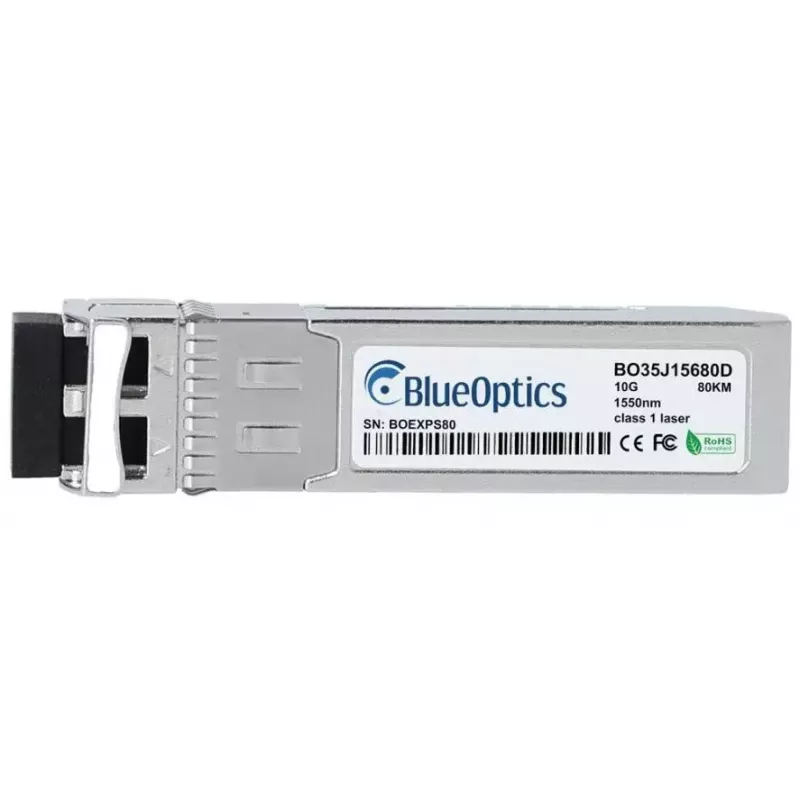

SFP transceiver module BlueOptics SFP10G-TR15H-BO 10000 Mbit/s 1550 nm

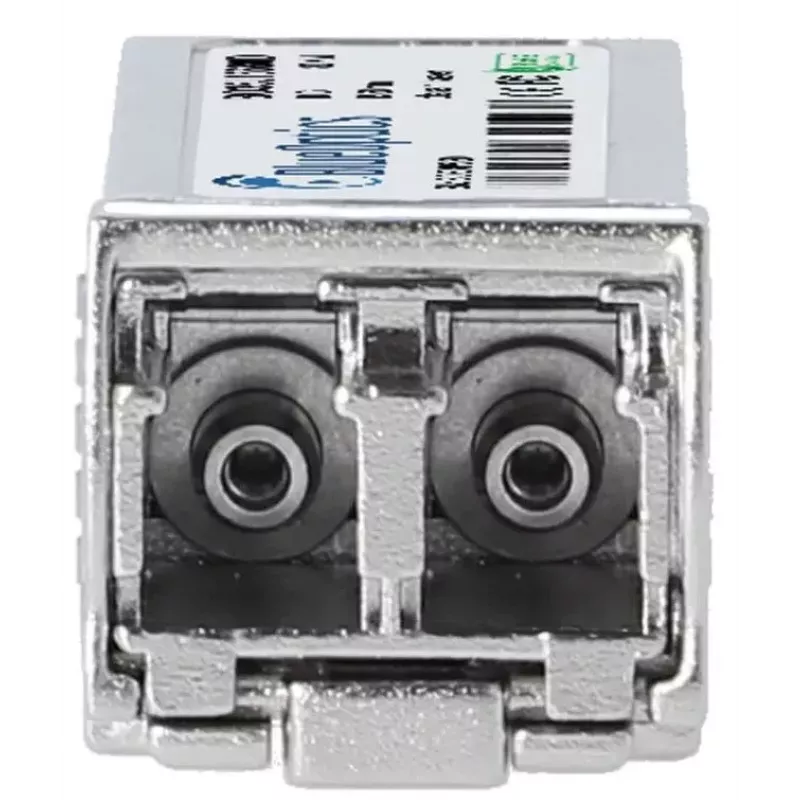

The BlueOptics SFP10G-TR15H-BO is an SFP+ fiber-optic transceiver module designed for high-speed single-mode network links. It supports a maximum data rate of 10 000 Mbit/s and operates at a wavelength of 1550 nm. The module is housed in metal for mechanical durability, draws 3.3 V input voltage, and weighs approximately 2 g. The transceiver uses an LC duplex optical interface and is intended for long-reach optical connections in compatible SFP+ ports.

Advantages

The module provides 10G data throughput over single-mode fiber with a 1550 nm wavelength, enabling long-distance optical transmission. Its metal housing offers mechanical protection and heat dissipation while the compact SFP+ form factor saves space in densely populated networking equipment. The device is compliant with standard SFP+ interfaces and is suitable for integration into systems that accept SFP+ transceivers.

Suitable for

Key specifications

How to use

Install the BlueOptics SFP10G-TR15H-BO into a compatible SFP+ port following the host hardware vendor's guidance: ensure the transceiver is correctly oriented, insert until it seats and the latch engages, then connect LC duplex single-mode fiber patch cords to the transmit and receive ports. Verify that the host device supports SFP+ transceivers and the required optical wavelength and data rate. Monitor link status through the host device and, if supported, read digital diagnostics via the management interface to confirm optical power and operational parameters.

Recommendations

Use single-mode fiber with appropriate LC duplex patch cords and ensure connectors and fiber are clean before mating. Confirm firmware or driver compatibility on the target hardware and check for support of digital diagnostic monitoring if remote monitoring of optical parameters is required. Handle the transceiver by its housing and avoid touching the optical interfaces; use protective dust caps when the ports are not connected.
