SFP transceiver module BlueOptics SFP10G-TR13-BO 10000 Mbit/s 1310 nm

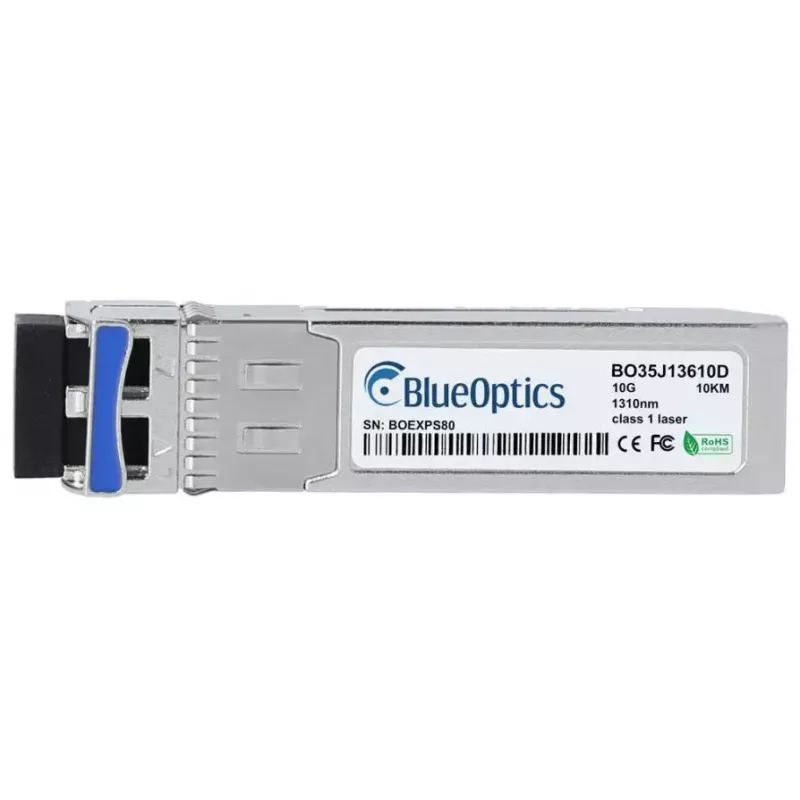

The BlueOptics SFP10G-TR13-BO is a compact SFP+ fiber optic transceiver module designed for 10 Gbit/s data links. It operates at a wavelength of 1310 nm, uses a standard LC duplex connector for single-mode fiber, and requires a 3.3 V supply. With a lightweight metal housing in silver and a small form factor, the module is intended for use in networking equipment that supports SFP+ interfaces and 10GBASE-LR-type single-mode links up to several kilometers.

Advantages

The module supports a maximum data transfer rate of 10000 Mbit/s and conforms to common SFP+ physical interface standards for interoperability. Its silver metal housing provides mechanical stability and helps dissipate heat while weighing only 2 g, which simplifies handling and installation. The transceiver implements transmit and receive functions at 1310 nm and is compatible with standard LC duplex cabling for single-mode connections. Built to MSA-aligned dimensions and electrical characteristics, it enables high-speed optical connectivity in switches, routers and storage systems.

Suitable for

Key specifications

How to use

Install the transceiver into an SFP+ port of a compatible network device following the device manufacturer's instructions. Ensure the host port supports 10 Gbit/s SFP+ modules and that the receiving equipment is configured for the correct optical mode and wavelength. Connect single-mode LC duplex fiber patch cords to the module's LC connector, observing correct transmit-to-receive orientation. Power on the network device and verify link status through the device interface; if supported, enable digital diagnostics monitoring on the host to view real-time optical parameters.

Recommendations

Use single-mode LC duplex patch cords and route fibers to avoid excessive bending. Verify host compatibility with SFP+ optics and, when possible, test the module in your specific hardware before large-scale deployment. If available, monitor the module via the DDM/DOM interface to track supply voltage, laser bias, transmit power, receive power and temperature for proactive maintenance.
