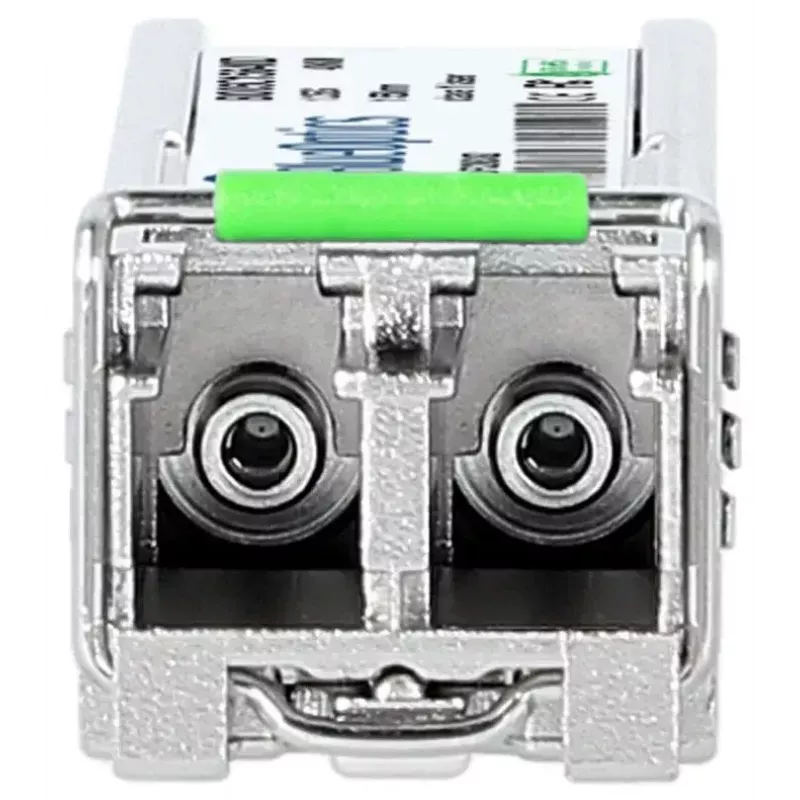

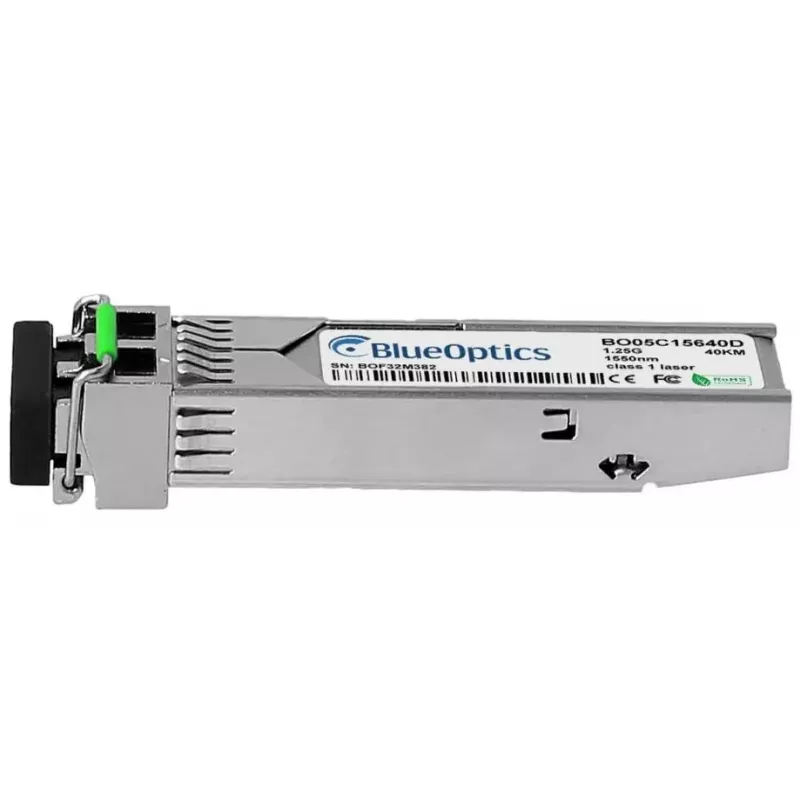

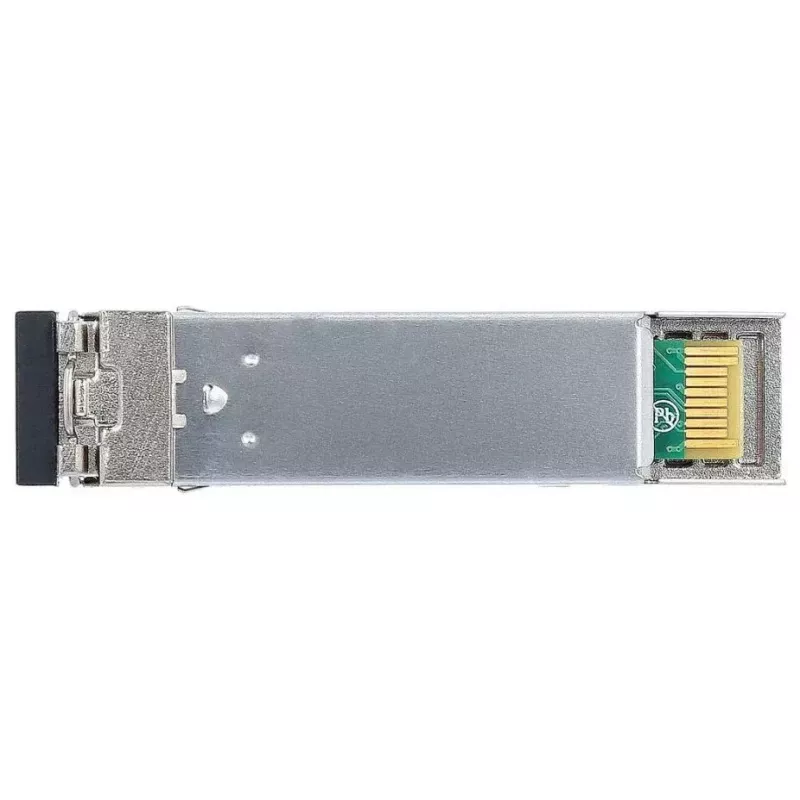

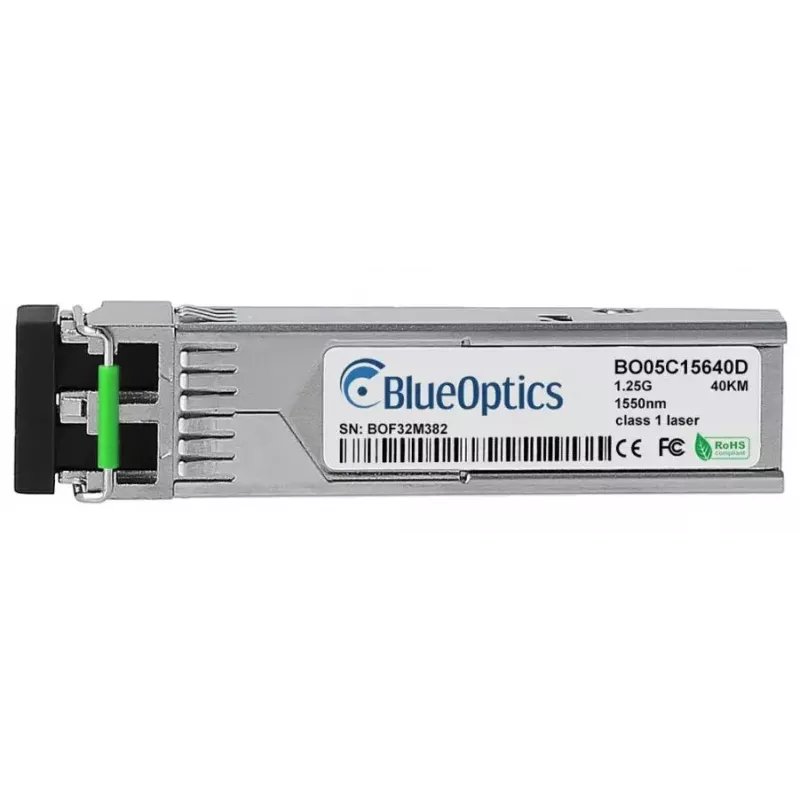

SFP transceiver module BlueOptics SFP-GIG-LH40-BO 125 Mbit/s 1550 nm

The BlueOptics SFP-GIG-LH40-BO is an SFP fiber optic transceiver module designed for single-mode links operating at 1550 nm with a maximum data transfer rate of 125 Mbit/s. It uses an SFP interface and an LC duplex connector and is intended for deployment in compatible network devices that support SFP modules. The module is RoHS, FCC and CE certified and weighs approximately 20 g, providing a compact option for extending optical connectivity in network infrastructures.

Advantages

This SFP transceiver provides optical transmission and reception at 1550 nm for long-reach single-mode fiber links while following MSA-defined SFP form-factor standards to ensure mechanical and electrical interoperability. The module is tested for compatibility with relevant platforms and is designed using industry-grade components to support reliable operation. Its small stainless-steel enclosure and low weight make it easy to install in switches, routers and other SFP-capable equipment.

Suitable for

Key specifications

How to use

Power down or follow hot-plug procedures recommended by your device vendor, then insert the SFP module into an available SFP slot until it latches. Connect an LC duplex single-mode fiber patch cable to the module with proper transmit/receive orientation. Confirm link status through the host device’s management interface and ensure any required configuration or port speed settings match the module’s capabilities. If the host supports digital diagnostic monitoring (DDM/DOM), enable and monitor available diagnostic parameters as needed.

Recommendations

Verify device compatibility and software support before deployment. Use single-mode LC duplex patch cords and observe correct polarity. When troubleshooting, check link LEDs, verify fiber continuity and, if available, consult DDM/DOM readings for voltage, temperature and optical power values.
