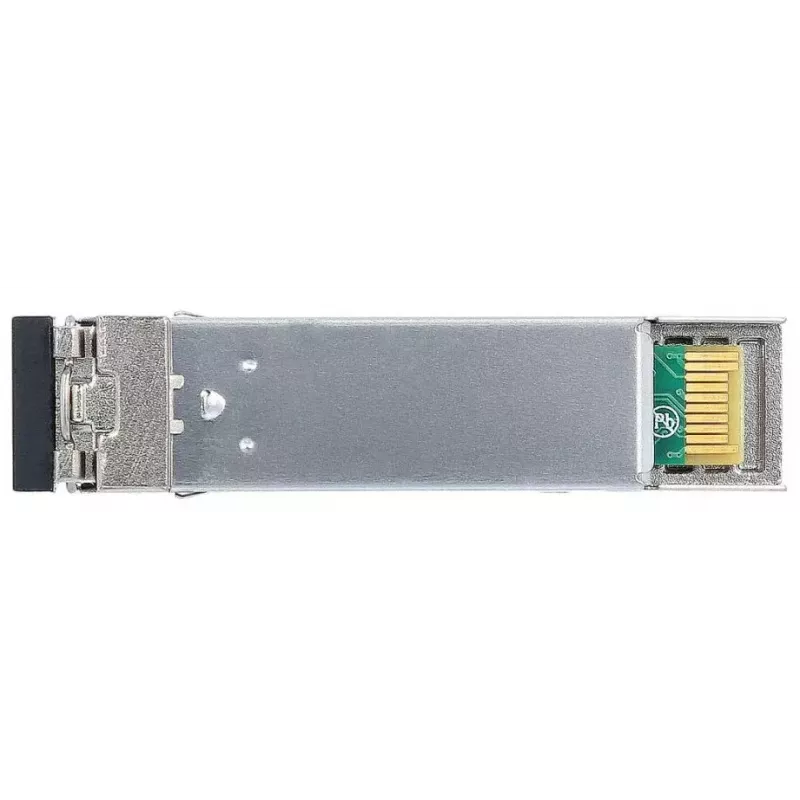

SFP transceiver module BlueOptics SFP-FAST-MM/LC-BO 155 Mbit/s 1310 nm

The BlueOptics SFP-FAST-MM/LC-BO 155 Mbit/s 1310 nm is a compact fiber optic SFP transceiver module designed for 100BASE-FX applications over multimode fiber. It supports a maximum data transfer rate of 155 Mbit/s at a wavelength of 1310 nm, in a metal housing that provides mechanical durability while keeping the module weight to approximately 3 g. The module operates from a 3.3 V supply and uses an LC duplex connector for bidirectional optical transmission, making it suitable for a range of networking equipment that accepts SFP form-factor transceivers.

Advantages

The module follows MSA-compliant SFP standards and is compatible with devices that support Hirschmann 100BASE-FX SFP transceivers, providing straightforward plug-and-play replacement without requiring proprietary identifiers. Its metal enclosure offers physical robustness and EMI resilience typical for fiber-optic transceivers. Built to industry component standards, the transceiver supports long service life and stable optical performance for distance links up to approximately 2 km on appropriate multimode fiber. The small size and standard interface simplify installation and inventory management.

Suitable for

Key specifications

How to use

Install the BlueOptics SFP-FAST-MM/LC-BO by inserting the SFP module into an available SFP slot on a compatible switch, router, or other network device while the device is powered on or following the vendor’s hot-swap guidance. Connect LC duplex multimode fiber patch cords to the module ensuring proper transmit/receive orientation. Verify link status through the host device’s port indicators or management interface. If the host supports Digital Diagnostics Monitoring (DDM/DOM) and the function is enabled, monitor voltage, temperature, transmit power and receive power through the device management tools.

Recommendations

Use high-quality multimode LC patch cords and follow the equipment vendor’s guidance for DDM/DOM support. Ensure compatible fiber type and observe recommended bend radii and connector cleanliness to maintain optimal link performance and long-term reliability.
