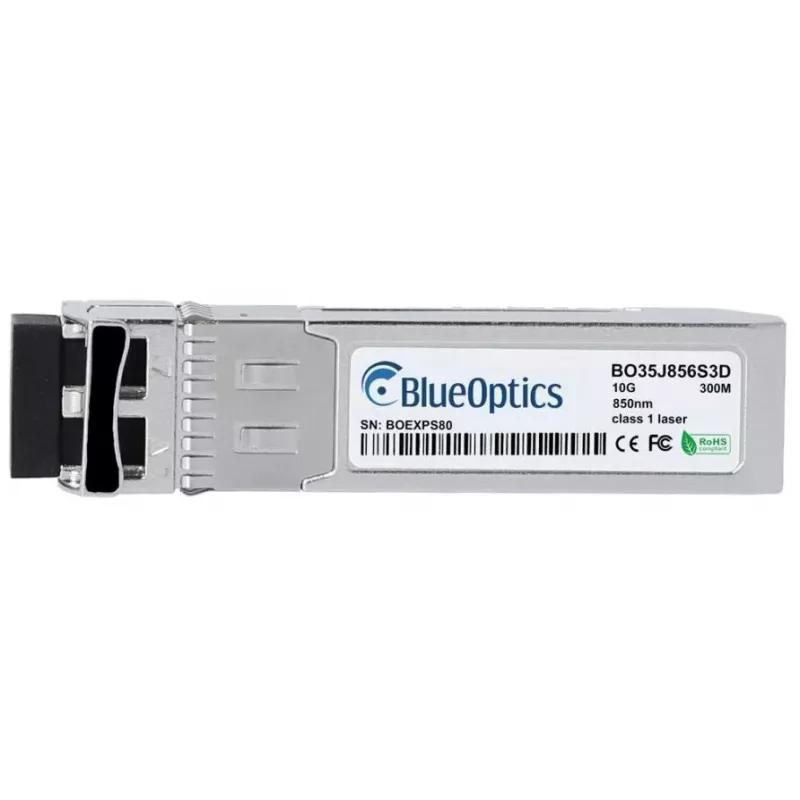

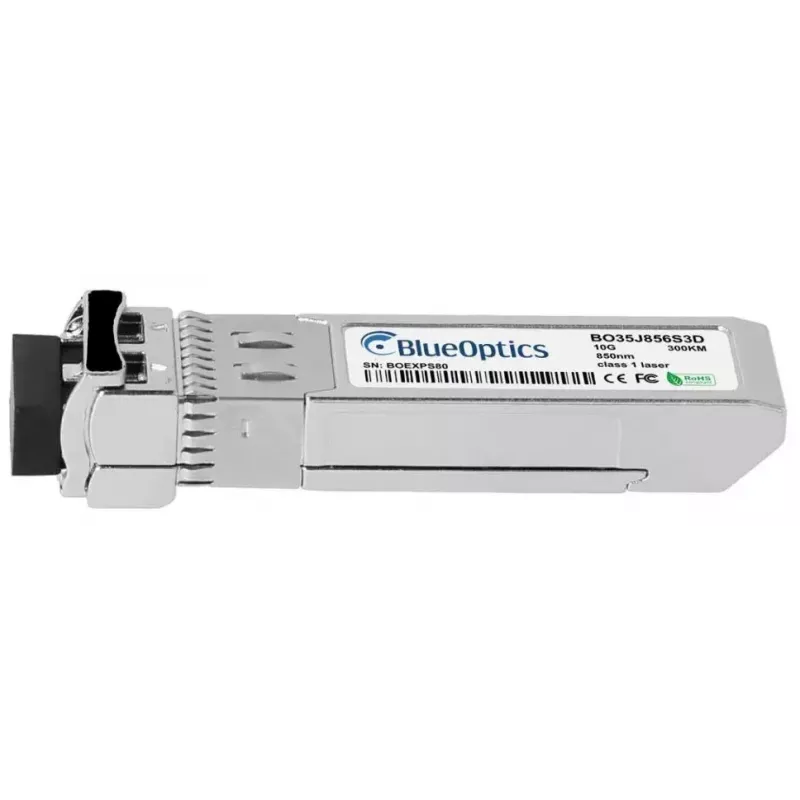

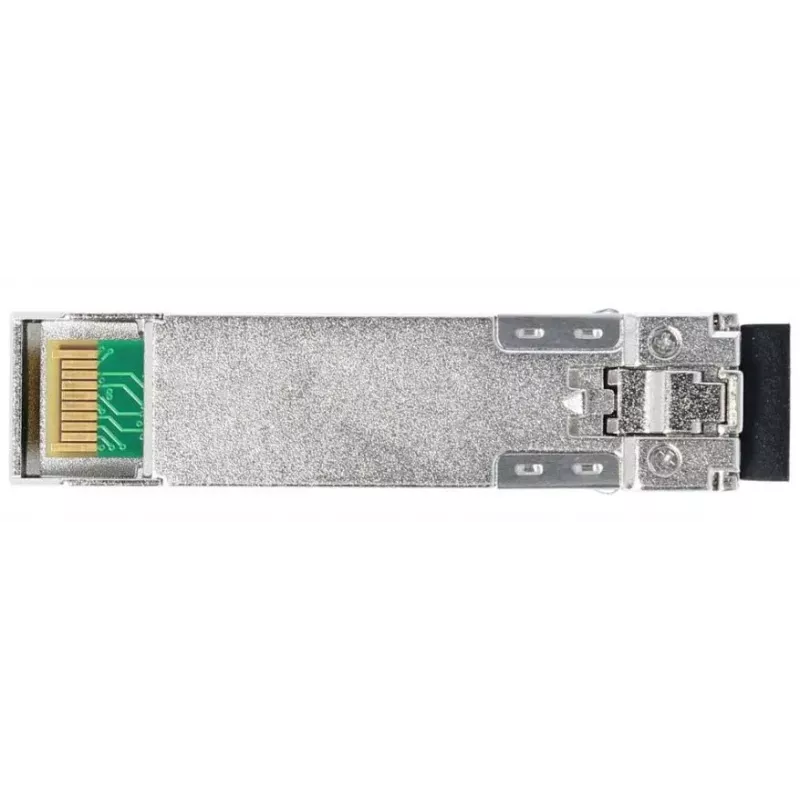

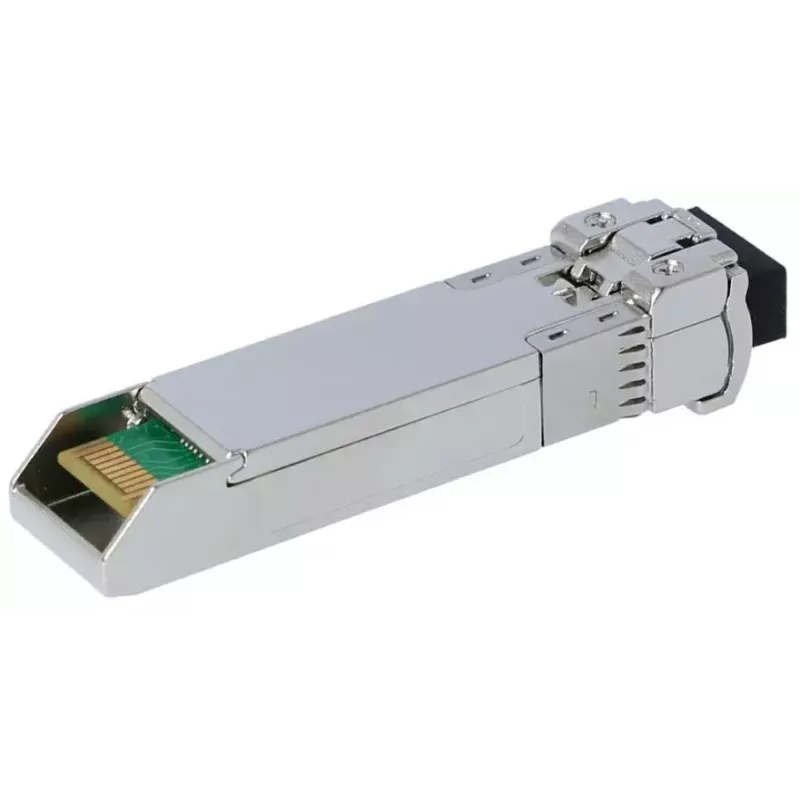

SFP transceiver module BlueOptics SFP-2000-MM85-X3-BO Fiber optic SFP+ 300 m

The BlueOptics SFP-2000-MM85-X3-BO is a 10G SFP+ fiber optic transceiver module designed for short-range multimode fiber links. Constructed with an aluminium housing and weighing approximately 20 g, the module supports 10GBASE-SR transmission over multimode fiber at 850 nm and is specified for distances up to 300 m. It uses an LC duplex connector and follows MSA-compliant SFP+ form-factor standards for insertion into compatible network equipment.

Advantages

The module provides high-speed 10 Gbit/s data transfer for Ethernet and Fibre Channel over Ethernet applications while maintaining a compact, hot-pluggable SFP+ form factor. Its aluminium casing offers mechanical durability and heat dissipation, and the multimode 850 nm optics deliver reliable short-range connectivity up to 300 m. Built and tested to industry MSA interoperability guidelines, the transceiver supports digital diagnostic monitoring when used in hardware that exposes the DDM/DOM interface.

Suitable for

Key specifications

How to use

Install the SFP+ transceiver into a compatible SFP+ port on your switch, router or storage device while the host device is powered on or off according to the equipment manual. Connect an LC duplex multimode patch cord to the transceiver and to the remote transceiver or patch panel, ensuring correct transmit/receive orientation. Verify link status and speed through the host device management interface. If DDM/DOM is supported by the host, enable or query diagnostic values for supply voltage, laser bias current, output power, input power and temperature to monitor link health.

Recommendations

For optimal performance, use OM3/OM4 multimode fiber and high-quality LC duplex patch cords, ensure clean connector end-faces, and verify that the host device firmware supports the BlueOptics SFP-2000-MM85-X3-BO module and DDM if you require real-time diagnostics.
