SFP transceiver module BlueOptics SFP-1GLHLC-BO Fiber optic 40000 m

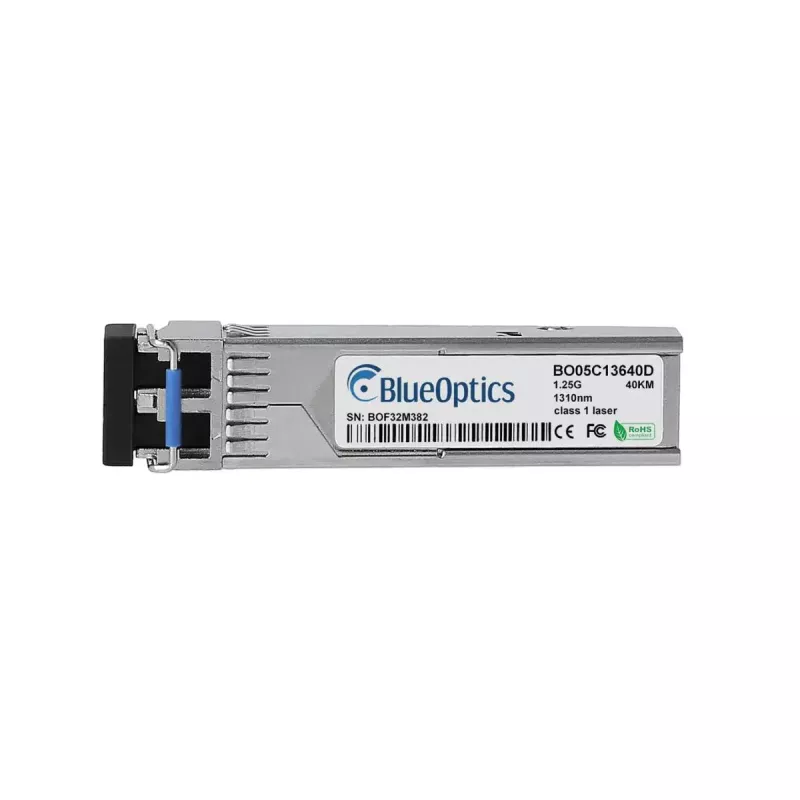

The BlueOptics SFP-1GLHLC-BO is a 1000BASE-LH SFP transceiver module with an LC duplex connector for single-mode fiber links up to 40,000 m. Following MSA standards, it uses 1310 nm transmit and receive lasers and supports Ethernet, Fibre Channel over Ethernet and SDH/SONET applications at data rates up to 1.25 Gbit/s. The module has an aluminum housing, weighs 20 g and is designed for use in hardware that supports the original Moxa SFP-1GLHLC transceiver.

Advantages

This BlueOptics SFP transceiver is built to MSA specifications to ensure compatibility with devices that accept the Moxa SFP-1GLHLC. Components such as high-quality lasers and controller ICs are selected from established manufacturers to provide long service life and high availability. The module supports Digital Diagnostics Monitoring (DDM/DOM) compliant with SFF-8472 for real-time monitoring of voltage, laser bias current, output power, received power and temperature.

Suitable for

• Long-distance single-mode fiber links (up to 40 km)
• Gigabit Ethernet uplinks and backbone connections
• Fibre Channel over Ethernet and SDH/SONET high-speed links
• Use in switches, routers, storage systems and compatible network appliances that accept Moxa SFP-1GLHLC

Key specifications

• Form factor: SFP (LC duplex)
• Standard: 1000BASE-LH
• Wavelength: 1310 nm (Tx/Rx)
• Maximum distance: 40,000 m (40 km) over single-mode fiber
• Data rate: up to 1.25 Gbit/s
• Housing: aluminium
• Weight: 0.02 kg
• MPN: SFP-1GLHLC-BO, EAN: 4063232018317

How to use

Insert the BlueOptics SFP-1GLHLC-BO into a compatible SFP port on a switch, router or other network device that supports the Moxa SFP-1GLHLC form factor. Connect LC duplex single-mode fiber patch cords—one fiber for transmit and one for receive—to establish the link. Ensure the host device supports DDM/DOM if you require real-time diagnostics. Configure the network interface and verify link status and data rate through the host device management interface.

Recommendations

For optimal performance use high-quality single-mode fiber patch cords and, when applicable, connect via a patch panel or a directly compatible transceiver at the remote end. Confirm device compatibility with the Moxa SFP-1GLHLC profile and enable DDM/DOM support on the host to monitor link parameters. Handle the module by its housing, avoid touching the optical interfaces, and keep protective caps on when not in use.
