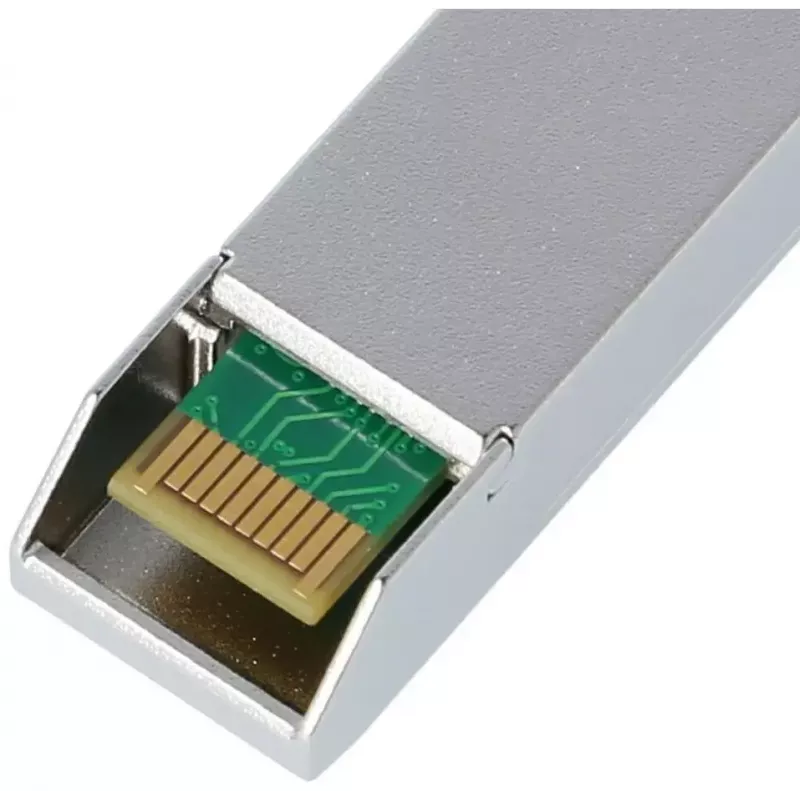

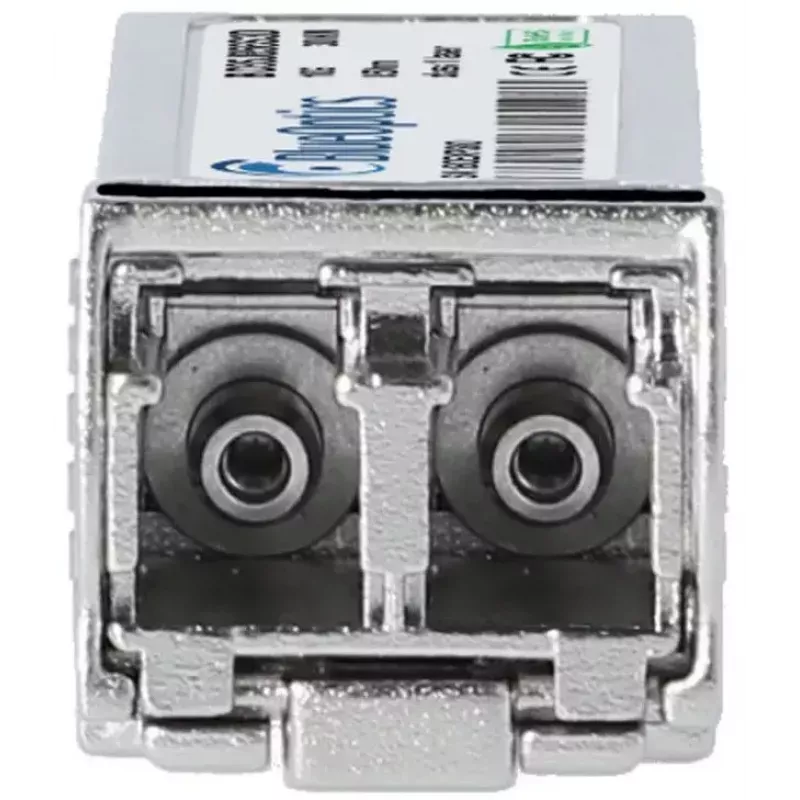

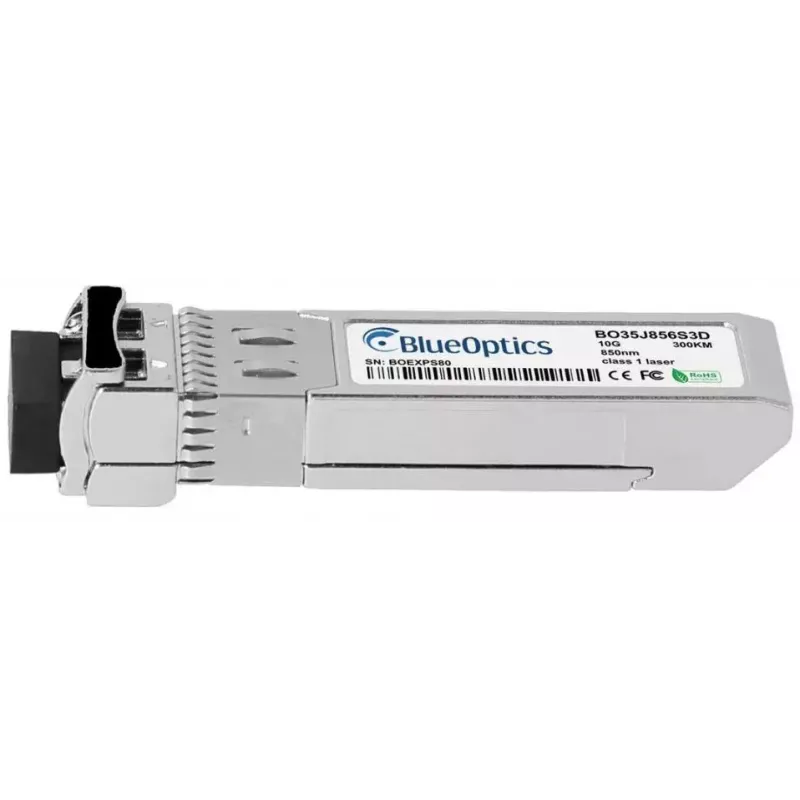

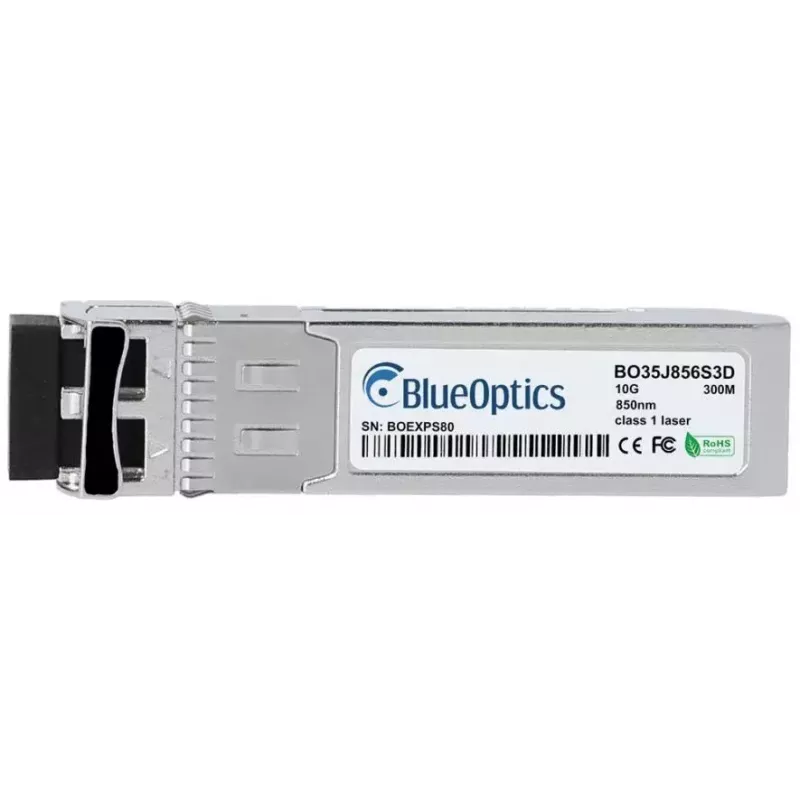

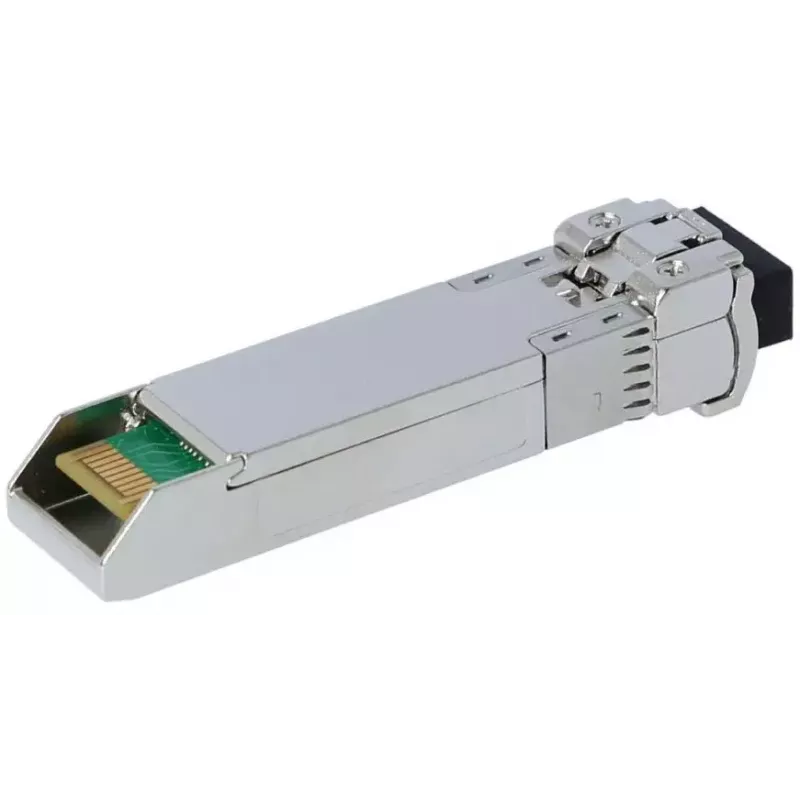

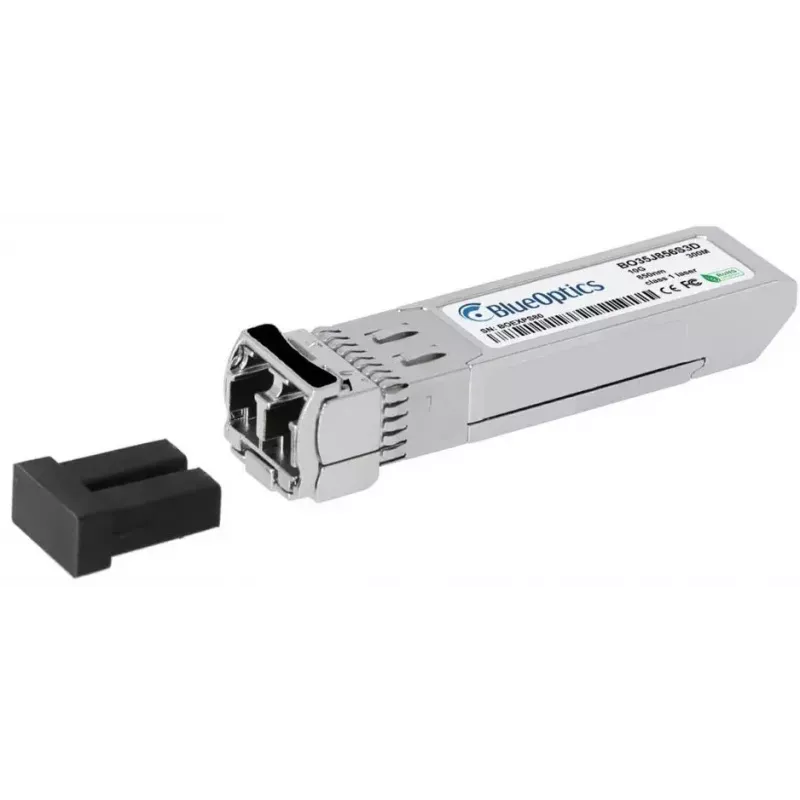

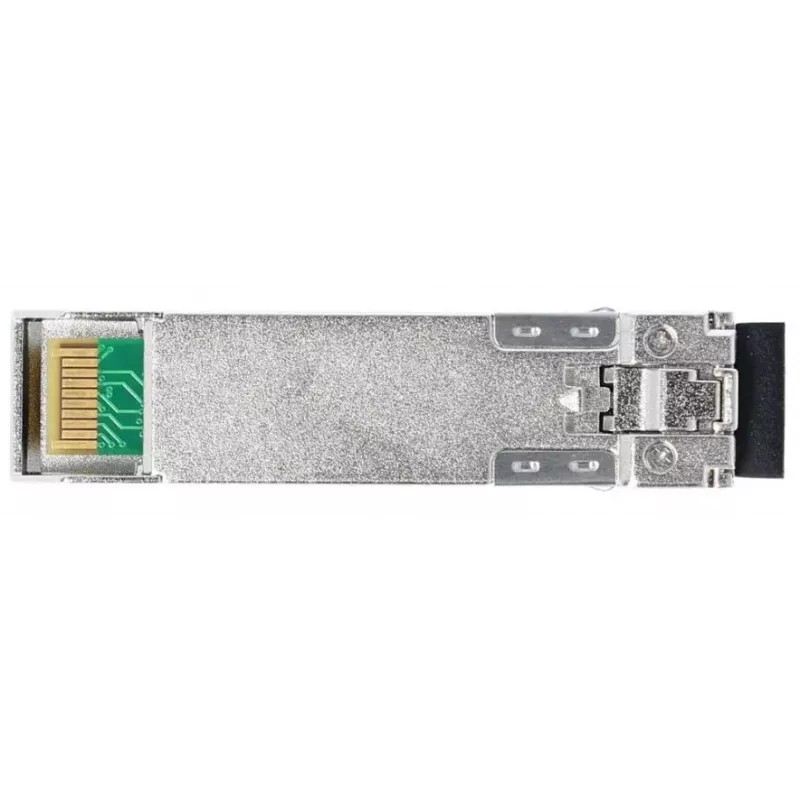

SFP+ transceiver module BlueOptics PAN-SFP-PLUS-SR-BO 10000 Mbit/s 850 nm

The BlueOptics PAN-SFP-PLUS-SR-BO is a 10G SFP+ fiber optic transceiver module designed for short-range multimode links. It operates at 850 nm with a maximum data transfer rate of 10000 Mbit/s and uses an SFP+ interface with LC duplex connectivity. The module is RoHS compliant, has a compact silver housing and a weight of approximately 20 g, making it suitable for integration into networking equipment that accepts SFP+ optics.

Advantages

This SFP+ transceiver supports 10GBASE-SR multimode fiber links and is built to industry MSA mechanical and electrical standards for plug-and-play interoperability with compatible hardware. The 850 nm wavelength and LC duplex interface enable simultaneous transmit and receive channels over multimode fiber. The module's compact design and RoHS compliance support straightforward installation and environmentally conscious deployment in data center and enterprise environments.

Suitable for

Key specifications

How to use

Install the BlueOptics PAN-SFP-PLUS-SR-BO by inserting the SFP+ module into a compatible SFP+ port until it clicks into place. Connect LC duplex multimode fiber patch cords to the module, ensuring correct orientation of transmit and receive fibers. Verify link status on the host device and configure network settings as required by your switch, router or server. Observe electrostatic discharge (ESD) precautions during handling and keep dust caps on the connector when not in use to protect the optical interface.

Recommendations

For optimal performance, use high-quality OM3/OM4 multimode fiber patch cords and keep multimode link lengths within the recommended short-range limits for 850 nm optics. Confirm that the target hardware supports third-party SFP+ modules and, where available, enable digital diagnostic monitoring in the host device to monitor voltage, temperature and optical parameters.
