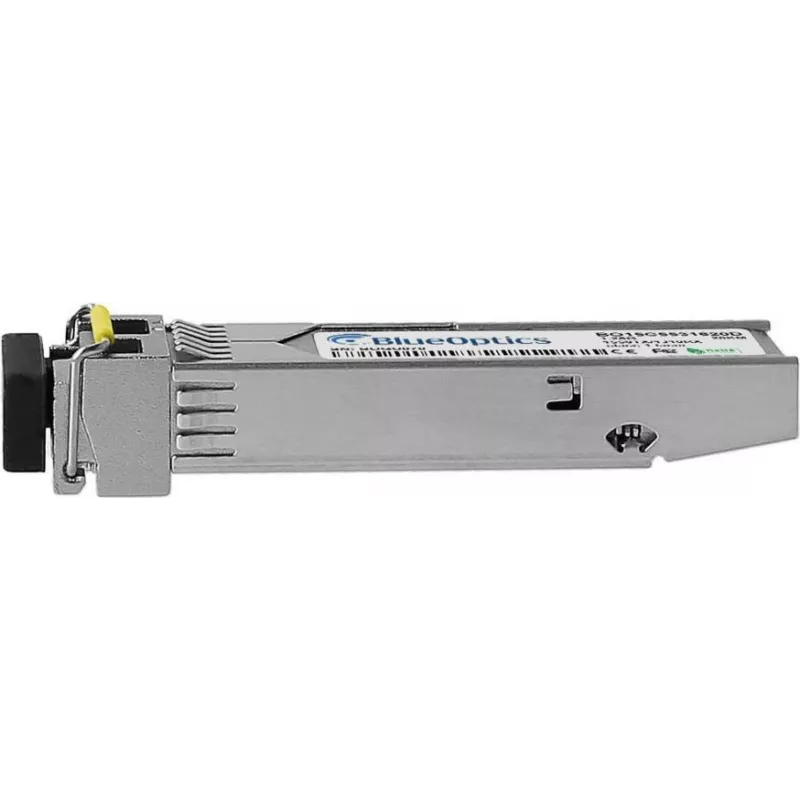

SFP transceiver module BlueOptics MG-1000PD1 V2-BO 1250 Mbit/s

The BlueOptics MG-1000PD1 V2-BO is an SFP fiber optic transceiver module designed for 1000BASE-BX-D applications with a maximum data transfer rate of 1250 Mbit/s. The module uses an LC simplex fibre connector for single-mode links and supports optical transmission over distances up to 20,000 m. Finished in silver and weighing approximately 20 g, this compact transceiver is intended for use in network equipment that accepts MSA-compliant SFP modules and supports 1000BASE-BX-D signalling.

Advantages

The module delivers a stable 1.25 Gbit/s line rate for Gigabit Ethernet and similar applications while maintaining a small form factor that fits standard SFP ports. Built to MSA physical interface standards, it offers interchangeability with compatible SFP ports and is suitable for long-reach single-mode links up to 20 km. The LC simplex connector and single-fibre BX-D design allow simultaneous transmit and receive operation on a single fibre using different wavelengths.

Suitable for

Key specifications

How to use

Install the BlueOptics SFP module into an available SFP port on a switch, router or other compatible network device while the device is powered down or following the device manufacturer's hot-swap procedure. Connect an appropriate single-mode LC patch cable between transceivers at each end, ensuring correct orientation for LC simplex connectors and verifying that the remote transceiver uses the complementary BX-D wavelength pair. Confirm link status on the host device and, where available, enable Digital Diagnostics Monitoring (DDM/DOM) in the host to read optical parameters if supported.

Recommendations

Use single-mode fiber patch cords and ensure both ends use compatible BX-D transceivers (one side transmitting at 1310 nm and the other receiving at 1550 nm) for proper single-fibre operation. Verify host compatibility with MSA-compliant third-party SFP modules and enable DDM/DOM support in the host system to monitor realtime optical parameters when available.
