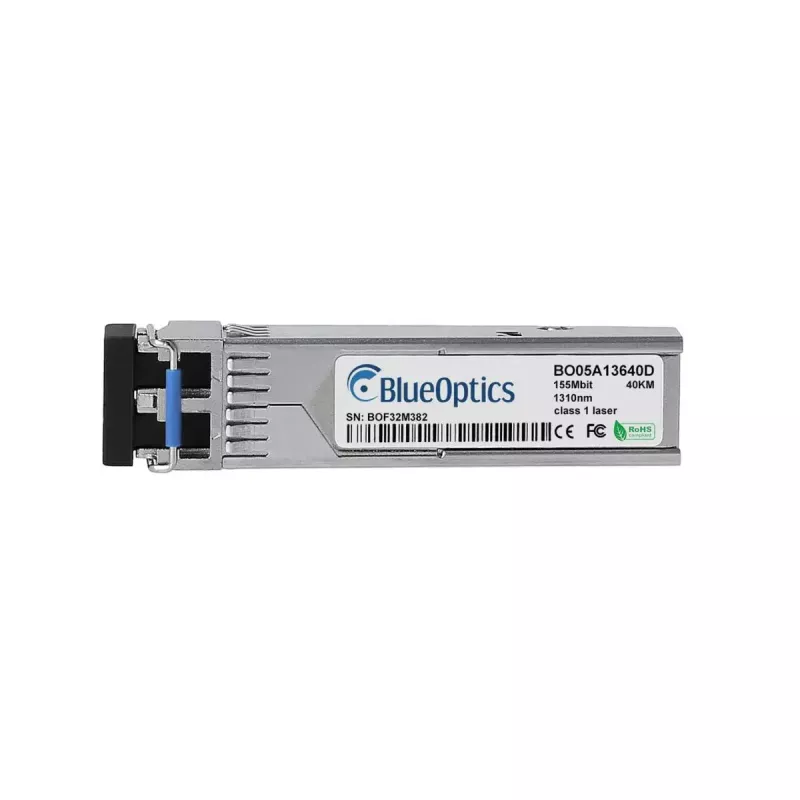

SFP transceiver module BlueOptics AC-SFP-FXSME-BO 155 Mbit/s

The BlueOptics AC-SFP-FXSME-BO is an SFP fiber optic transceiver module designed for single-mode optical links with a maximum data transfer rate of 155 Mbit/s. Encased in a durable silver metal housing and weighing approximately 0.02 kg, the module follows MSA-compliant SFP form-factor conventions to ensure mechanical and electrical interoperability with compatible host devices. With an MTBF of 1,000,000 hours, the module is intended for continuous network operation where predictable availability is required.

Advantages

The module provides a compact SFP interface suited for space-constrained network equipment and supports single-mode optical transmission at 155 Mbit/s. Its metal housing contributes to mechanical robustness and EMC stability, while the long MTBF rating supports deployments that require reduced maintenance and predictable service life. Compliance with standard SFP mechanical and electrical specifications aids compatibility across a range of supported devices.

Suitable for

• Point-to-point single-mode fiber links up to the supported optical reach for 155 Mbit/s links
• Plug-in installations in switches, routers and storage systems with SFP ports
• Network environments requiring compact hot-pluggable transceivers

Key specifications

• Interface type: SFP (Small Form-factor Pluggable)
• Maximum data transfer rate: 155 Mbit/s
• Optical fiber type: single-mode (LC duplex connector expected for single-mode SFPs)
• Housing: metal, silver colour
• Weight: 0.02 kg
• Reliability: MTBF approximately 1,000,000 hours

How to use

Install the BlueOptics AC-SFP-FXSME-BO by inserting the module into a compatible SFP port on the host device until it latches. Connect single-mode LC duplex patch cords between the transceiver and the remote transceiver or patch panel, observing correct transmit/receive orientation. Ensure the host device supports the required optical parameters and link speed. Power up the host device and verify link status via the device management interface or status LEDs. For removal, power down the port if required by the host, release the latch and gently extract the module.

Recommendations

Use certified single-mode LC duplex fiber patch cords and ensure that the host hardware and firmware support SFP modules at 155 Mbit/s. Avoid exposing the module to excessive mechanical stress; store unused transceivers with dust caps installed to protect optical interfaces. Confirm compatibility with the specific switch, router or storage system prior to deployment to enable correct operation and diagnostics.
