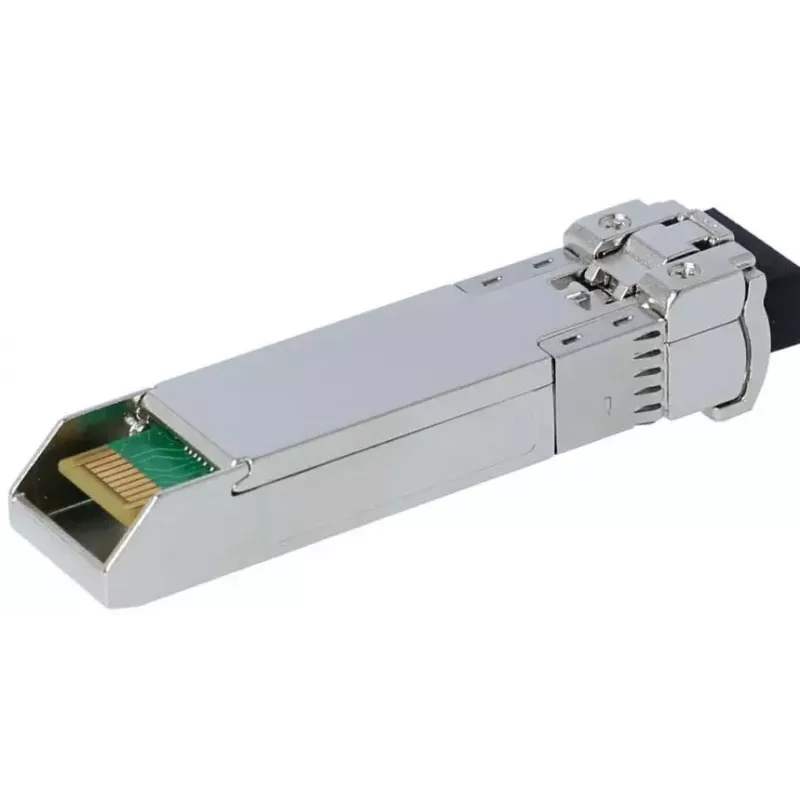

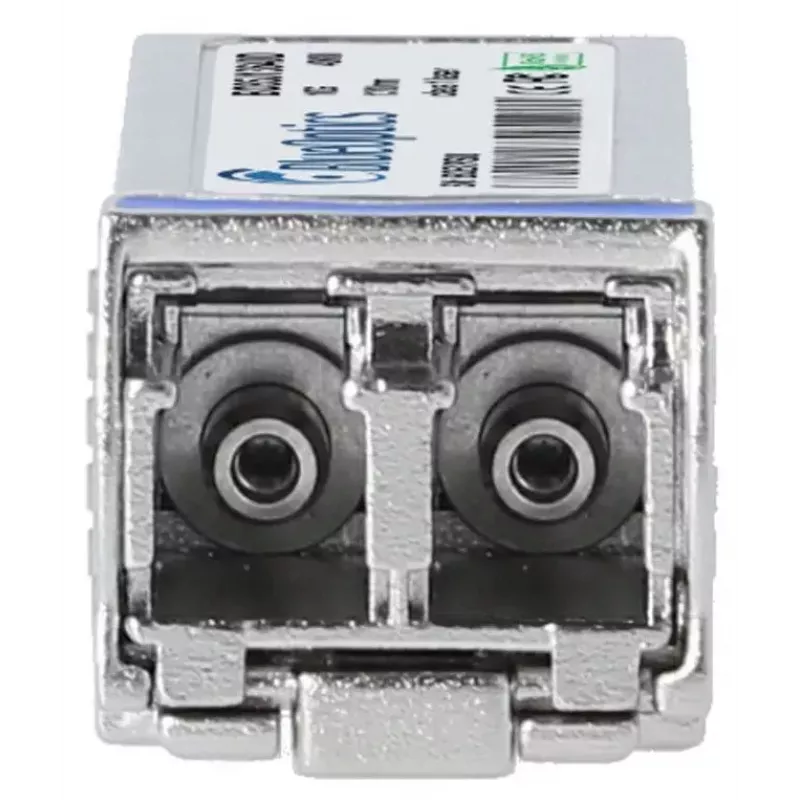

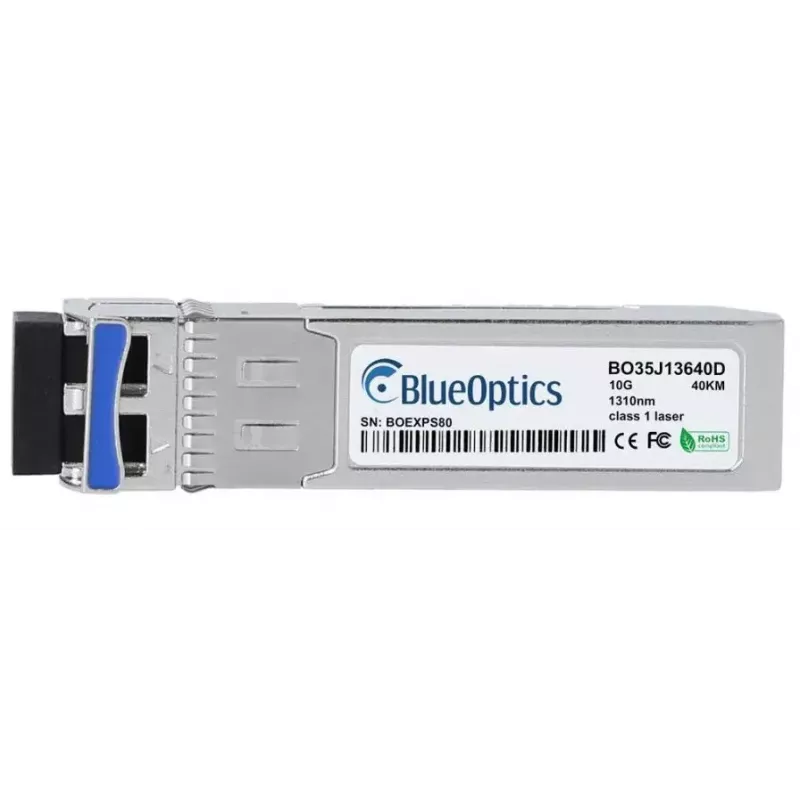

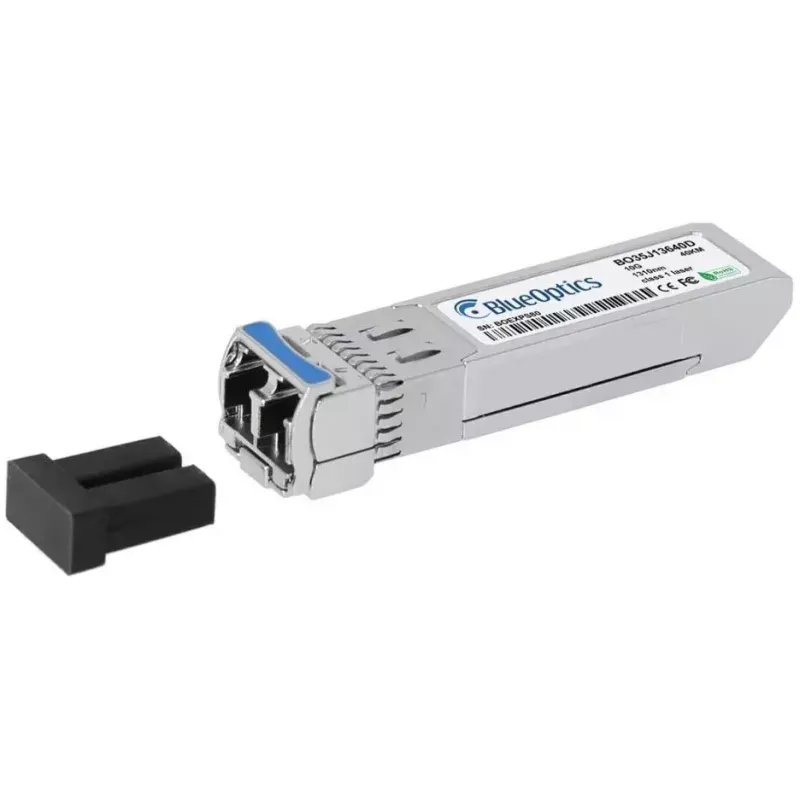

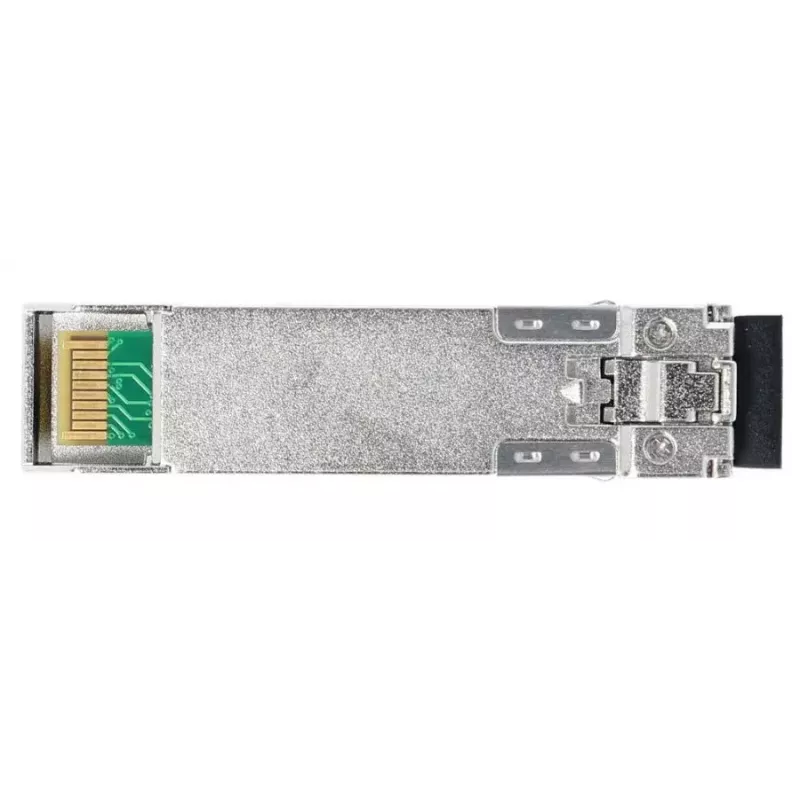

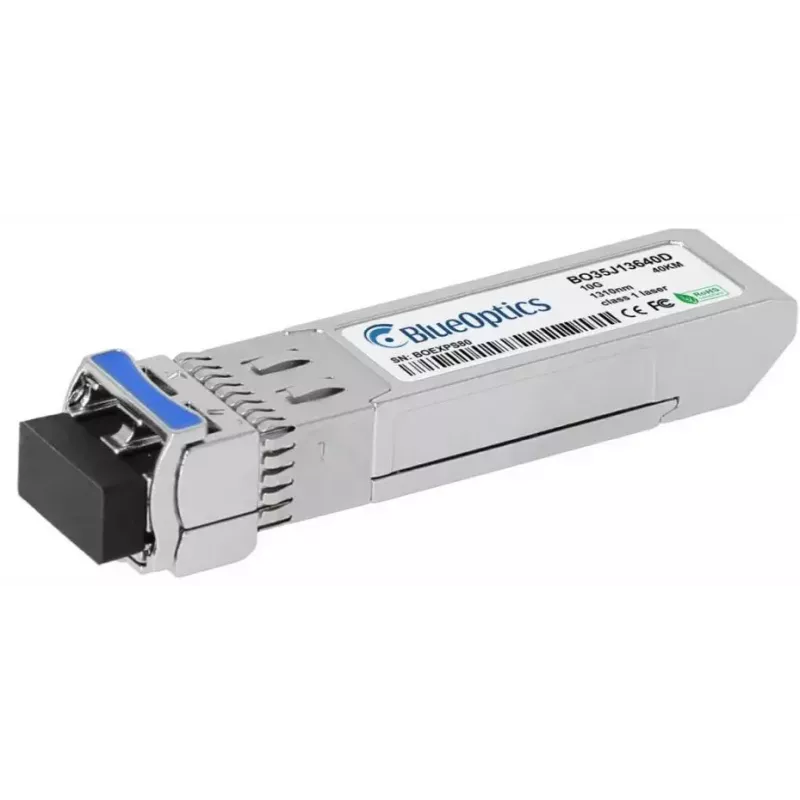

SFP+ transceiver module BlueOptics 6K3Y6-AS-BO 10000 Mbit/s Fiber optic

The BlueOptics 6K3Y6-AS-BO is a 10 Gbit/s SFP+ fiber optic transceiver module designed for single-mode links. Encased in a durable silver metal housing, this compact module supports 10,000 Mbit/s data rates and uses an LC duplex optical connector for simultaneous transmit and receive on separate fibers. The module is compatible with MSA SFP+ form-factor standards and is intended for deployment in network switches, routers and storage systems that accept SFP+ transceivers.

Advantages

This SFP+ transceiver offers high-speed optical transmission up to 10 Gbit/s while maintaining a compact, lightweight design (approx. 20 g). The metal housing provides mechanical durability and helps with thermal dissipation. Built and tested to MSA-compatible electrical and mechanical standards, the module simplifies integration into existing SFP+ ports. A high MTBF value contributes to long operating life and reduced maintenance needs.

Suitable for

• 10 Gbit/s Ethernet links over single-mode fiber
• Interconnection of switches and routers in enterprise networks
• Storage network uplinks and SAN interconnects
• Long-distance optical links where LC duplex connectors are used

Key specifications

• Interface type: SFP+
• Maximum data transfer rate: 10000 Mbit/s (10 Gbit/s)
• Optical connector: LC duplex (single-mode fiber)
• Housing: metal, silver colour
• Weight: approximately 0.02 kg
• Mean time between failures (MTBF): 1,000,000 hours

How to use

Insert the SFP+ transceiver into a compatible SFP+ port on your switch, router or storage system until it seats firmly and the latch engages. Connect LC duplex single-mode fiber patch cords to the transmit and receive ports, ensuring correct polarity. Ensure the host device supports SFP+ modules and the desired 10 Gbit/s link speed; if required, enable or configure the port through the device management interface. Monitor link status and diagnostics through the host system if Digital Diagnostics Monitoring (DDM/DOM) is supported by the hardware.

Recommendations

Use single-mode LC duplex fiber patch cords and adhere to correct polarity and connector cleanliness to ensure optimal link performance. Verify host compatibility and, where available, enable DDM/DOM for remote monitoring. Store unused transceivers in anti-static packaging and avoid excessive mechanical stress during installation.
