SFP+ transceiver module BlueOptics 500406-001-BO 10000 Mbit/s

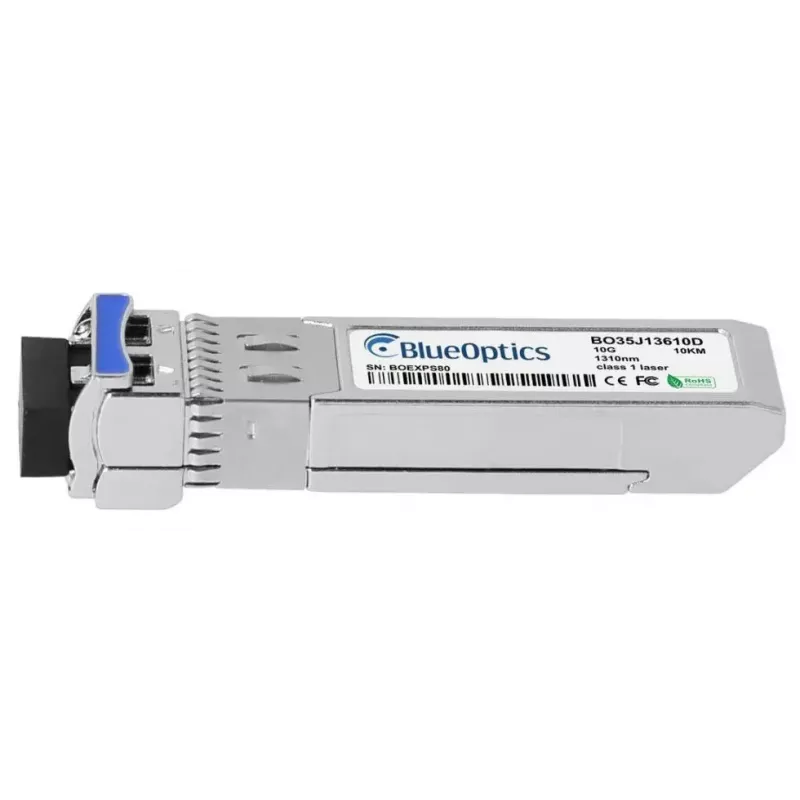

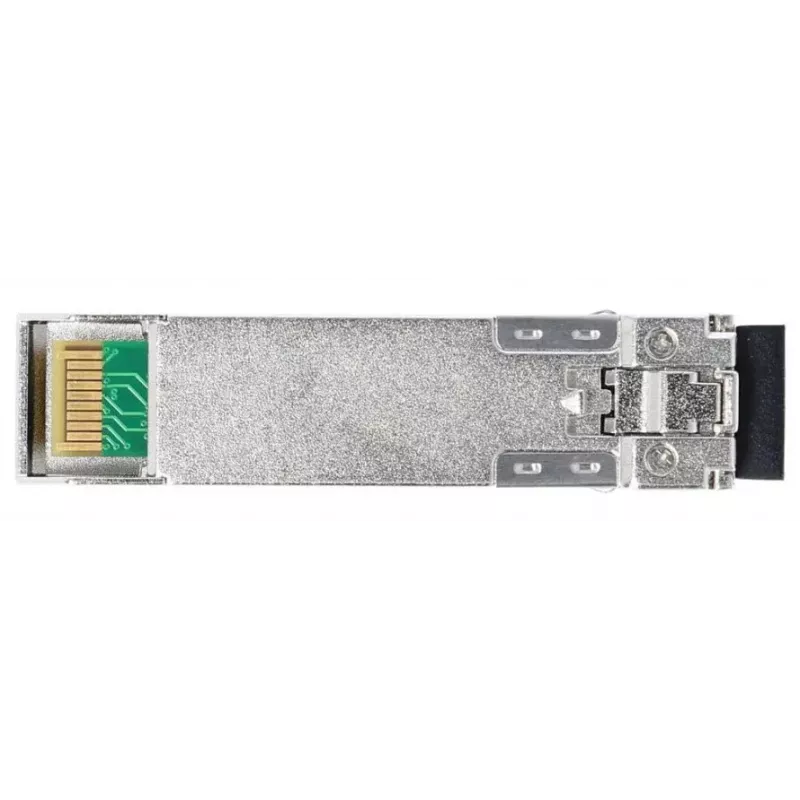

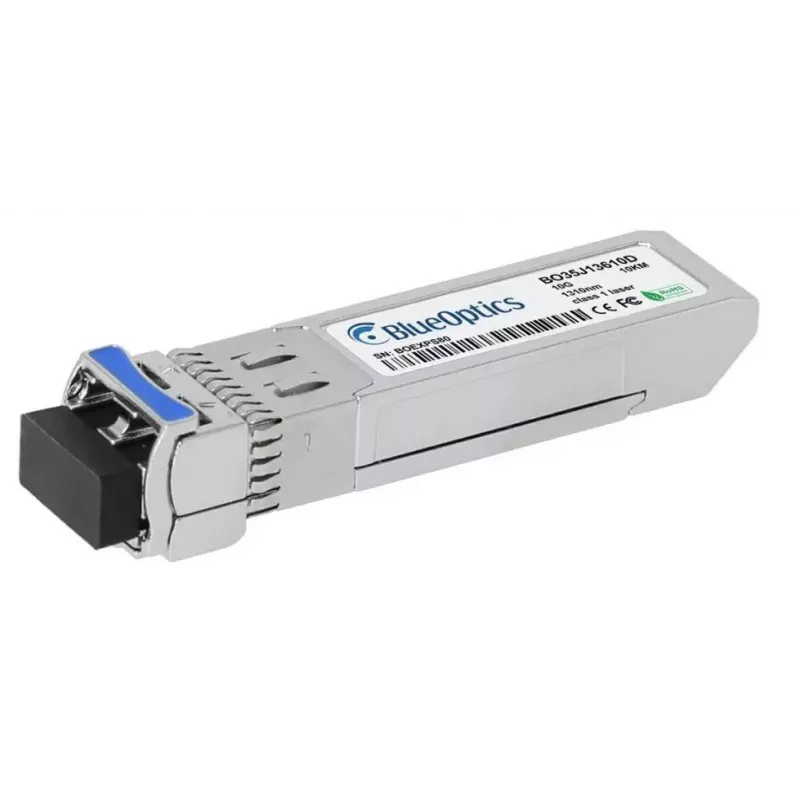

The BlueOptics 500406-001-BO SFP+ transceiver module is a compact optical module for high-speed fiber connections. Designed for 10G networks, it supports a maximum data transfer rate of 10000 Mbit/s and operates from a 3.3 V supply. The module follows SFP+ form-factor dimensions and is finished in a silver housing, compatible in physical and electrical form with equipment that accepts SFP+ interfaces. It uses an LC duplex optical connector and is intended for single-mode fiber links where 10GBASE-LR class performance is required.

Advantages

The module provides a standardized SFP+ interface that enables straightforward hot-pluggable installation into compatible switches, routers and storage systems. Its small footprint and industry-standard mechanical design allow use in dense port environments. The transceiver supports high data rates up to 10 Gbit/s while maintaining a low weight and compact dimensions, making it suitable for space- and power-constrained network equipment.

Suitable for

• 10 Gigabit Ethernet uplinks between switches and routers
• Long-reach single-mode fiber links (10GBASE-LR use cases)
• Data center server and storage interconnects
• Network hardware replacement or upgrades requiring SFP+ form-factor modules

Key specifications

• Interface type: SFP+
• Maximum data transfer rate: 10000 Mbit/s (10 Gbit/s)
• Power supply voltage: 3.3 V operating

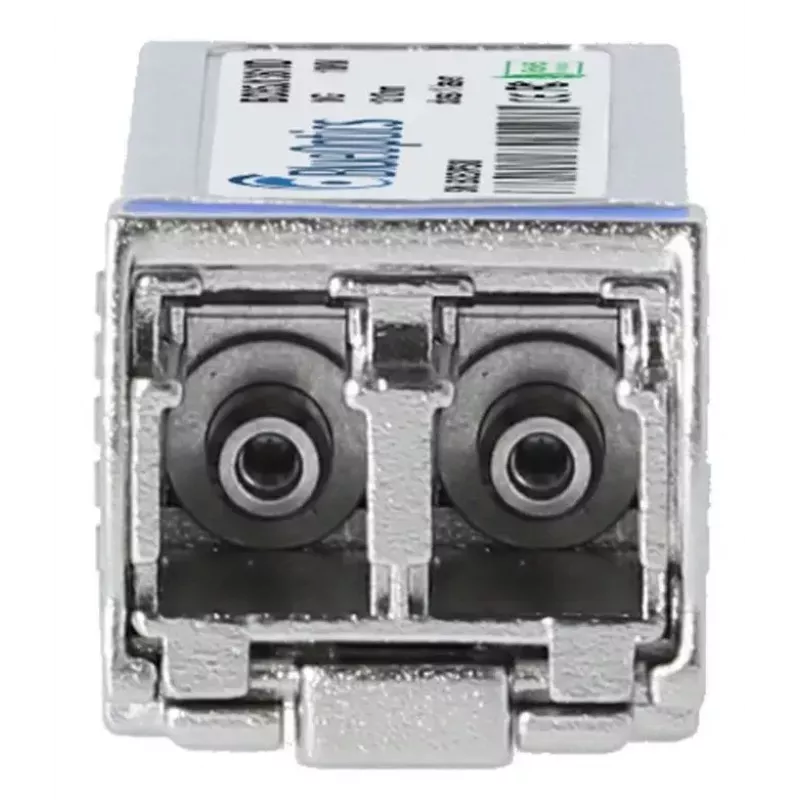

• Connector type: LC duplex (optical)
• Optical medium: single-mode fiber (1310 nm transmitter/receiver typical for 10GBASE-LR)
• Dimensions: approximately 13.8 mm (W) × 58.4 mm (D) × 12.6 mm (H)
• Weight: 0.02 kg
• Product colour: silver

How to use

Install the BlueOptics SFP+ transceiver into a compatible SFP+ slot on a switch, router or other network device while the host is powered according to the device manufacturer's hot-swap guidance. Connect an LC duplex single-mode fiber patch cable to the module's optical port, observing proper Tx/Rx orientation. Confirm that the host device recognizes the transceiver and configure the port for 10 Gigabit Ethernet operation if necessary. For optical link testing, verify signal levels and link status using on-board diagnostics or external test equipment.

Recommendations

Use single-mode LC duplex patch cords and follow connector cleaning procedures to ensure optimal optical performance. Verify compatibility and software support for third-party SFP+ modules on your hardware platform before deployment. If digital diagnostic monitoring (DDM/DOM) is required, ensure the host supports this function to access real-time parameters such as supply voltage and optical power.
