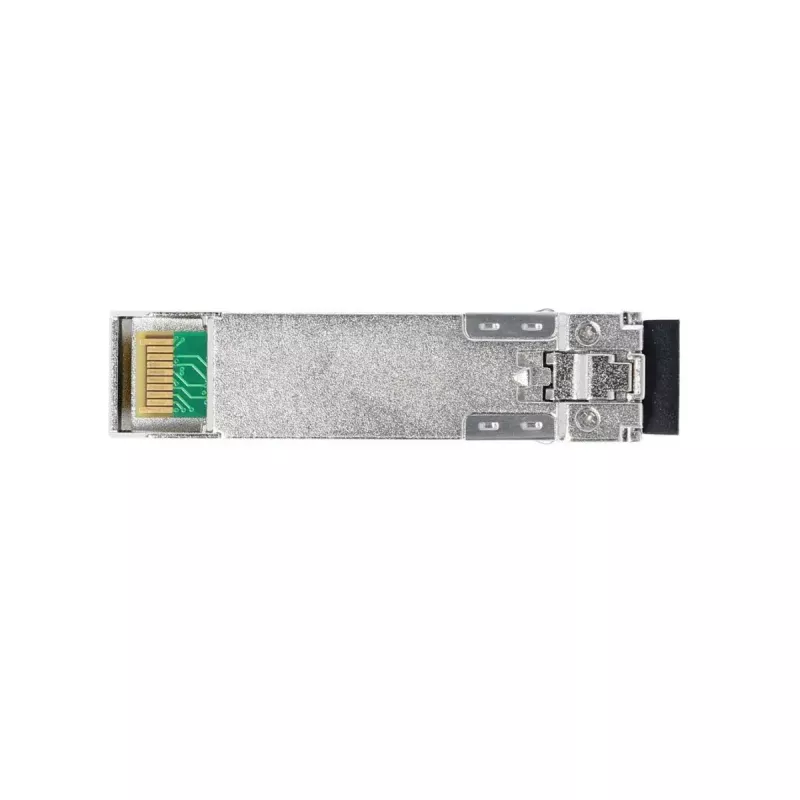

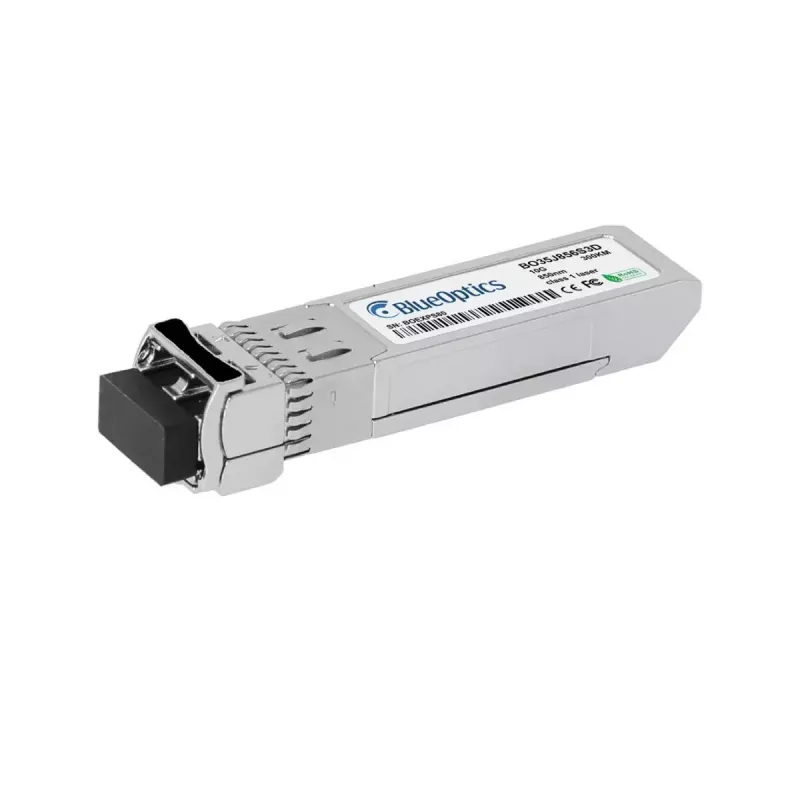

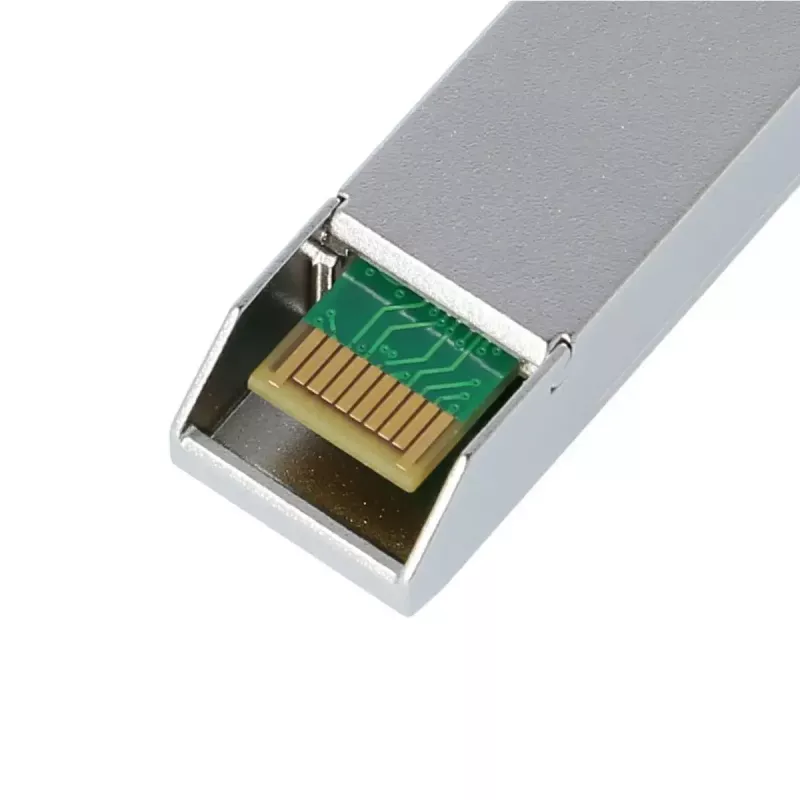

SFP+ Transceiver Module BlueOptics 10301-BO 10000 Mbit/s 850 nm Silver

The BlueOptics 10301-BO is a 10GBASE-SR SFP+ transceiver module compatible with Extreme Networks 10301. It supports 10 Gbit/s data rates over multimode fiber using an 850 nm transmitter and receiver and uses an LC duplex connector. The module follows MSA standards and is designed for use in network equipment that supports the original Extreme Networks 10301 10GBASE-SR SFP+, providing short-range optical links of up to 300 meters and supporting Ethernet, Fibre Channel over Ethernet and SDH/SONET protocols.

Advantages

The module is manufactured to MSA specifications and tested for compatibility with Extreme Networks hardware. BlueOptics 10301-BO uses high-quality components such as lasers and integrated circuits from established suppliers, and includes Digital Diagnostics Monitoring (DDM/DOM) compliant with SFF-8472 for real-time monitoring of voltage, laser bias current, transmit power, receive power and temperature. The product is RoHS and CE compliant and is designed for long lifetime and high availability with MTBF values that support extended operational periods.

Suitable for

• Short-range 10 Gbit/s links over multimode fiber (up to 300 m)
• Switches, routers and storage systems that accept Extreme Networks 10301-compatible SFP+
• High-speed Ethernet and Fibre Channel over Ethernet deployments
• Environments requiring remote optical transceiver diagnostics (DDM/DOM)

Key specifications

• Model: BlueOptics 10301-BO (compatible with Extreme Networks 10301)
• Interface: SFP+
• Data rate: 10000 Mbit/s (10 Gbit/s)
• Wavelength: 850 nm (multimode)

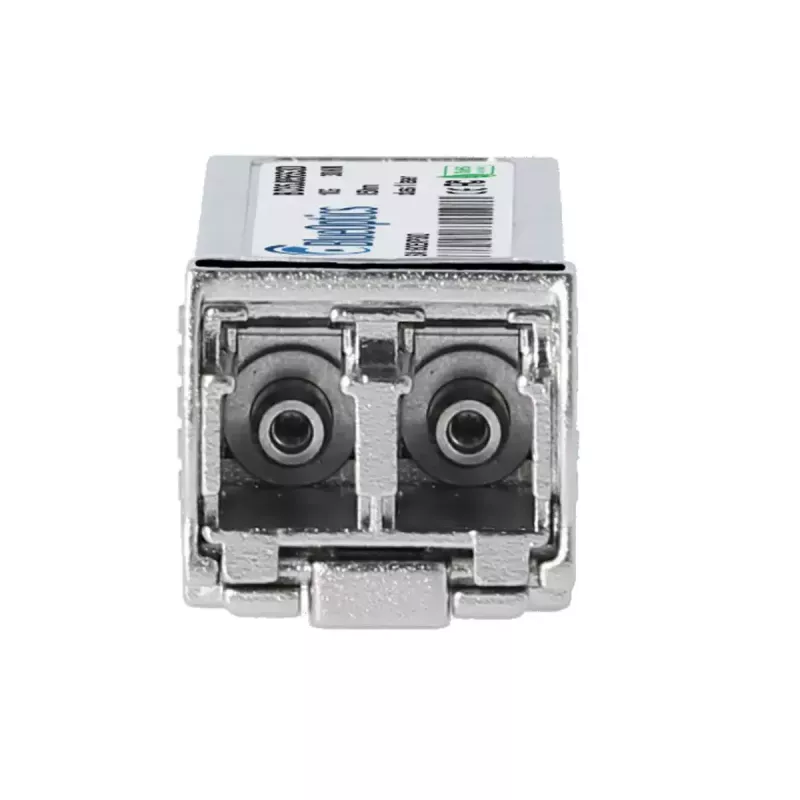

• Connector: LC duplex
• Max. reach: up to 300 m (multimode fiber)
• Weight: 0.02 kg
• Colour: Silver
• DDM/DOM support: SFF-8472 compliant

How to use

Install the BlueOptics 10301-BO into an SFP+ slot of network equipment that supports Extreme Networks 10301-compatible transceivers. Connect both fibers of an LC duplex patch cord to the module and the corresponding remote transceiver or patch panel, ensuring transmit and receive channels are correctly aligned. Verify link status in the host device and, if available, monitor diagnostic values via the DDM/DOM interface to confirm proper operation and signal levels.

Recommendations

Use multimode fiber patch cords rated for 850 nm and verify that the host hardware firmware supports third-party SFP+ modules and DDM/DOM access. For optimum performance, keep connectors clean, avoid tight bends in fiber, and use appropriate multimode fiber types for runs up to 300 m.
