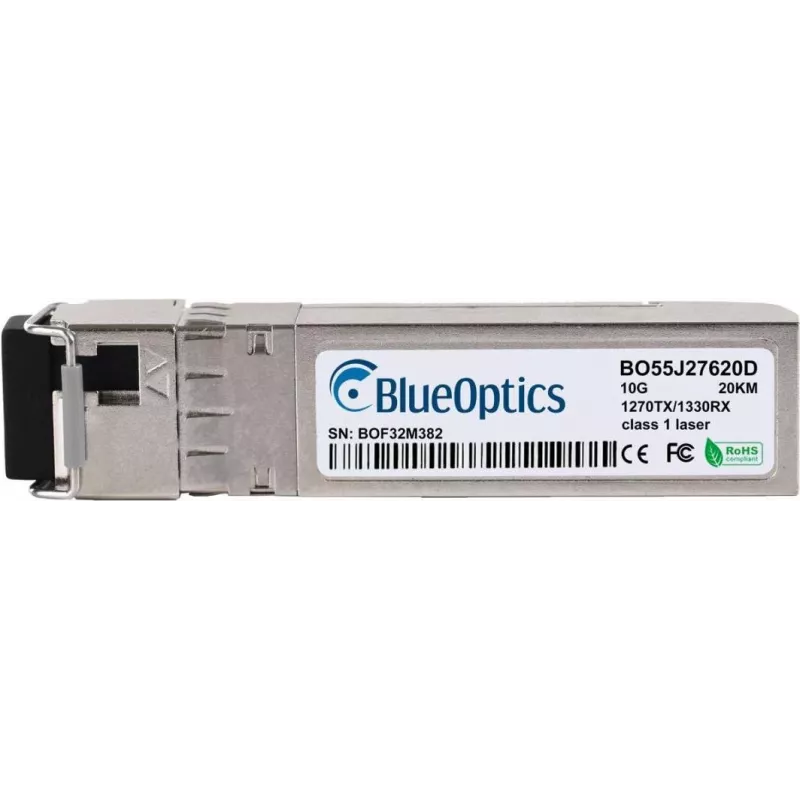

SFP+ transceiver module BlueOptics 100-01903BXU-20-BO 10000 Mbit/s 1330 nm

The BlueOptics 100-01903BXU-20-BO SFP+ transceiver module provides a compact, hot-pluggable solution for 10 Gbit/s fiber optic links. Designed for single-mode transmission at a wavelength of 1330 nm, this SFP+ module supports high-speed data transfer up to 10000 Mbit/s and a link distance of up to 20,000 meters. The module uses an LC fiber connector, operates from a 3.3 V input, and comes in a lightweight silver housing that is compatible with a wide range of network switches, routers and media converters that accept standard SFP+ form-factor modules.

Advantages

The transceiver combines high data throughput with long reach capability, enabling reliable 10 Gbit/s connections over single-mode fiber without requiring additional signal conversion. Its SFP+ form factor enables hot-swapping for minimal network downtime and easy upgrades. Compliance with CE, FCC and RoHS standards ensures regulatory conformity and reduced environmental impact. The compact, 20 g metal housing supports stable thermal and mechanical performance in rack-mounted and compact network equipment.

Suitable for

• 10 Gbit/s single-mode fiber backbone links
• Interconnecting switches and routers across data center racks
• Long-distance fiber runs up to 20 km in metropolitan or campus networks
• Upgrading SFP+ ports in media converters and transceiver-compatible network devices

Key specifications

• Maximum data transfer rate: 10000 Mbit/s
• Wavelength: 1330 nm
• Maximum transfer distance: 20000 m
• Fiber optic connector type: LC
• Operating voltage: 3.3 V
• Product colour: Silver
• Weight: 0.02 kg

How to use

Install the BlueOptics SFP+ transceiver by inserting it into an available SFP+ port on your network device until it seats firmly. Connect a compatible single-mode LC fiber cable to the transceiver, observing proper polarity and cleanliness of fiber endfaces. Power and configure the host device according to the vendor instructions to enable the 10 Gbit/s link; the module is hot-pluggable and can be inserted or removed while the host is powered, though it is recommended to follow device-specific procedures for port activation. Monitor link status and performance via the host device interface.

Recommendations

Ensure fiber connectors are clean and protected with dust caps when unused, use single-mode fiber for the specified wavelength, and verify compatibility with the host device's supported SFP+ modules. For reliable long-distance links, use appropriate fiber routing, proper splicing or connectorization, and confirm transceiver settings in the network equipment to match 10 Gbit/s operation.
