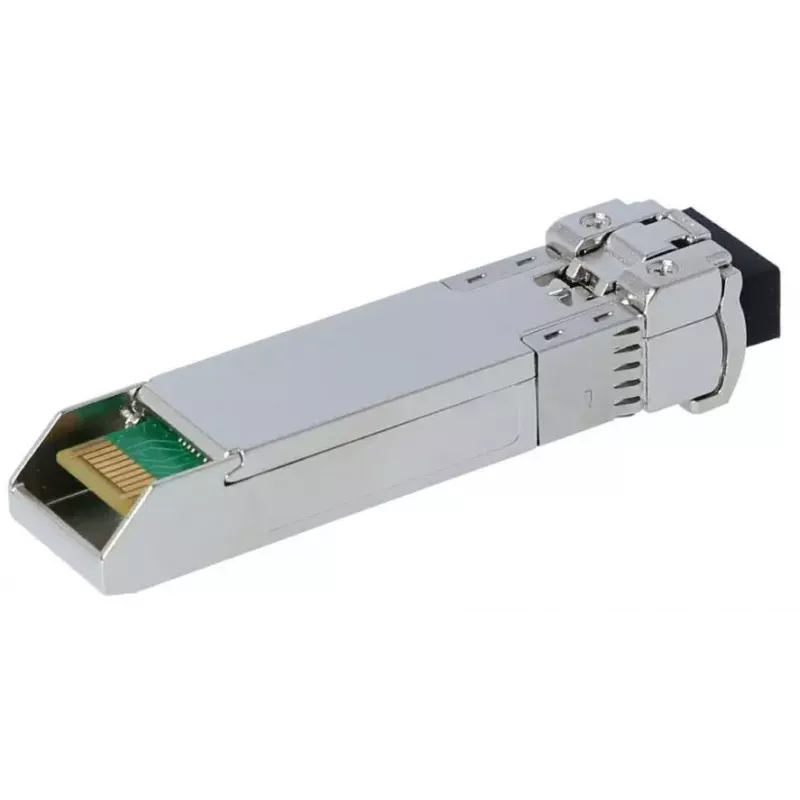

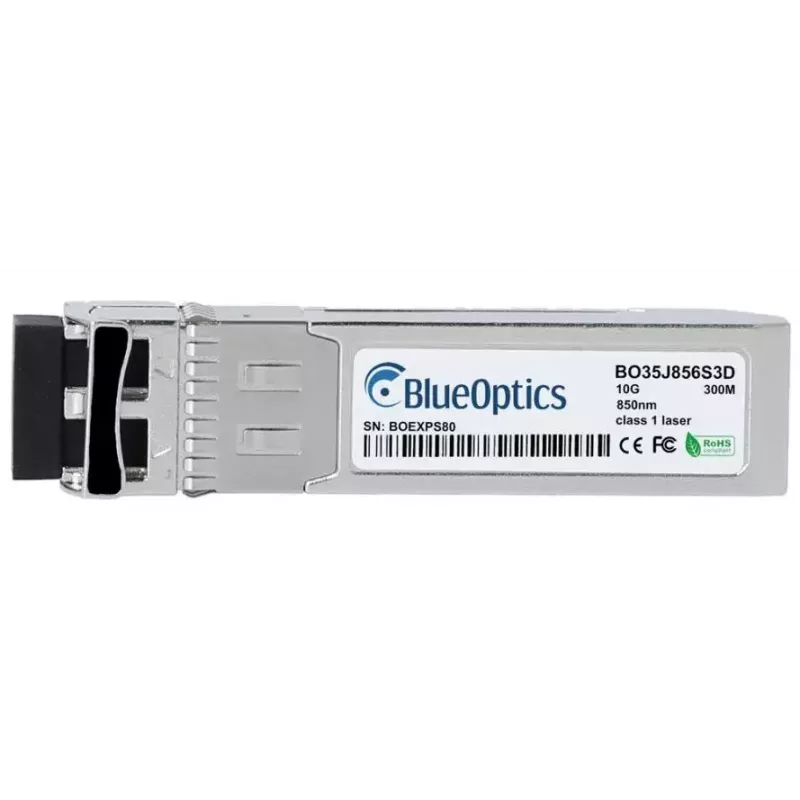

SFP+ transceiver module BlueOptics 00MY034-BO 10000 Mbit/s 850 nm

The BlueOptics 00MY034-BO SFP+ transceiver module is a compact fiber-optic module designed for 10 Gbit/s data links. Operating at an 850 nm wavelength, it is intended for multimode fiber applications and fits industry-standard SFP+ ports with LC duplex connections. The module is RoHS-compliant, weighs approximately 20 g and supports high-speed optical links up to typical multimode distances for 10GBASE-SR deployments.

Advantages

This SFP+ transceiver provides a standardized form factor and multimode 850 nm optics that enable reliable 10 Gbit/s connectivity in switches, routers and storage systems. Compliance with established MSA specifications ensures interchangeability with other SFP+ ports and compatible hardware. The compact silver module offers low weight and straightforward installation while supporting digital diagnostics for remote monitoring of key optical parameters when the host supports DDM/DOM.

Suitable for

• 10GBASE-SR multimode fiber links in data center and campus networks
• High-speed uplinks and switch-to-switch connections
• Server and storage system interconnects requiring SFP+ LC duplex modules
• Environments where RoHS compliance and a standard SFP+ footprint are required

Key specifications

• Interface type: SFP+ (LC duplex)
• Maximum data transfer rate: 10000 Mbit/s (10 Gbit/s)
• Operating wavelength: 850 nm
• Compatible fiber type: Multimode fiber (MMF) for short-range 10GBASE-SR links
• Color/finish: Silver module housing
• Weight: approximately 0.02 kg

How to use

Insert the BlueOptics SFP+ transceiver into a compatible SFP+ port until it latches, then connect LC duplex multimode fiber patch cords to the module. Ensure transmitter and receiver fibers are connected in the correct orientation and that the host device supports 10GBASE-SR operation. If the host supports Digital Diagnostics Monitoring (DDM/DOM), enable or view the diagnostic parameters through the management interface to monitor supply voltage, temperature, laser bias and optical power.

Recommendations

For best performance, use high-quality OM3/OM4 multimode fiber and factory-terminated LC patch cords, maintain proper fiber connector cleanliness, and observe multimode maximum reach guidelines for 850 nm optics. Verify host compatibility and firmware settings before deployment and consider testing a sample module in your hardware to confirm interoperability and expected link performance.
