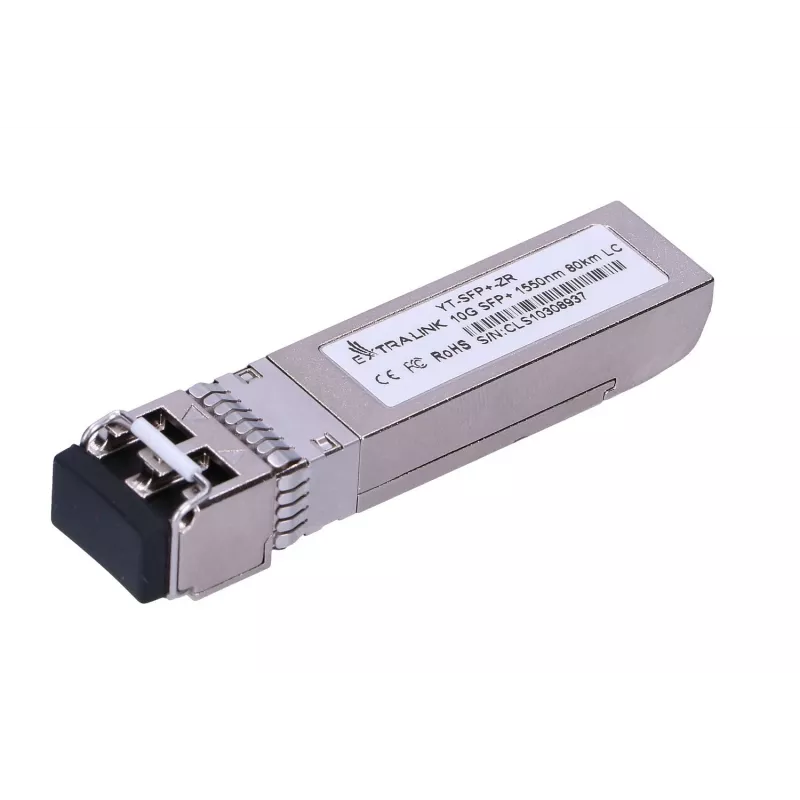

SFP transceiver Extralink EX.10093 Fiber optic 10000 Mbit/s 1550 nm

The Extralink EX.10093 SFP transceiver is a fiber optic SFP+ module designed for high-speed data transfer up to 10000 Mbit/s over single-mode fiber. Operating at a wavelength of 1550 nm, this module supports long-distance links and is intended for network expansion, uplinks and upgrading existing infrastructure while providing reliable optical connectivity.

Advantages

The module supports 10G data rates and SFP+ interface compatibility, delivering a compact form factor for dense installations. Single-mode operation at 1550 nm enables extended reach suitable for metropolitan and long-haul links. Integrated transmitter and receiver sections follow industry safety standards and include digital diagnostics accessible via a serial interface for monitoring operating parameters in real time.

Suitable for

• 10G Ethernet uplinks between switches and routers
• Long-distance single-mode fiber links in campus and metro networks
• Data center interconnects requiring compact SFP+ modules
• Network upgrades where 1550 nm wavelength and extended reach are needed

Key specifications

• Interface type: SFP+
• Maximum data transfer rate: 10000 Mbit/s (10G)
• Operating wavelength: 1550 nm
• Connector type: LC duplex
• Single-mode fiber compatibility
• Digital diagnostic monitoring via 2-wire serial interface
• Supports data rates from ≤4.25 Gbps and 9.95–11.3 Gbps
• Class 1 laser safety

How to use

Insert the SFP+ transceiver into a compatible SFP+ port on a switch, router or media converter until it clicks into place. Connect LC duplex single-mode fiber cables, ensuring correct orientation of transmit and receive pairs. Verify link status and monitor diagnostic readings through the host device using the module's serial diagnostic interface. When removing the module, use the ejector mechanism provided by the host and handle the optical connectors with dust caps until connection to avoid contamination.

Recommendations

Use single-mode fiber rated for 1550 nm and follow manufacturer guidance for maximum link distance. Keep transceiver firmware and host device compatibility information up to date, monitor digital diagnostics for temperature and optical power trends, and protect exposed connectors from dust and physical damage to maintain reliable operation.
