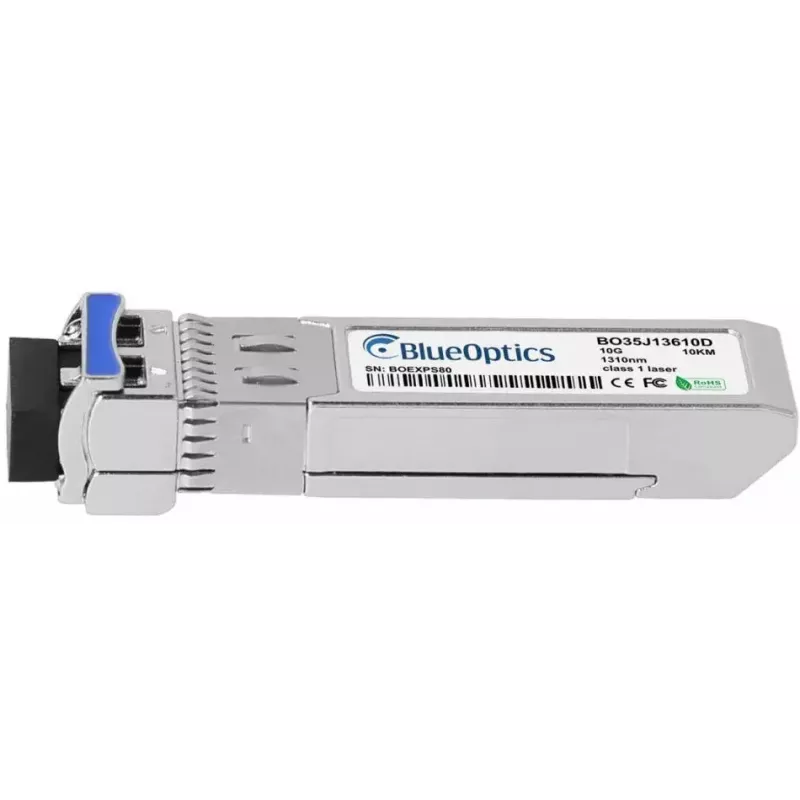

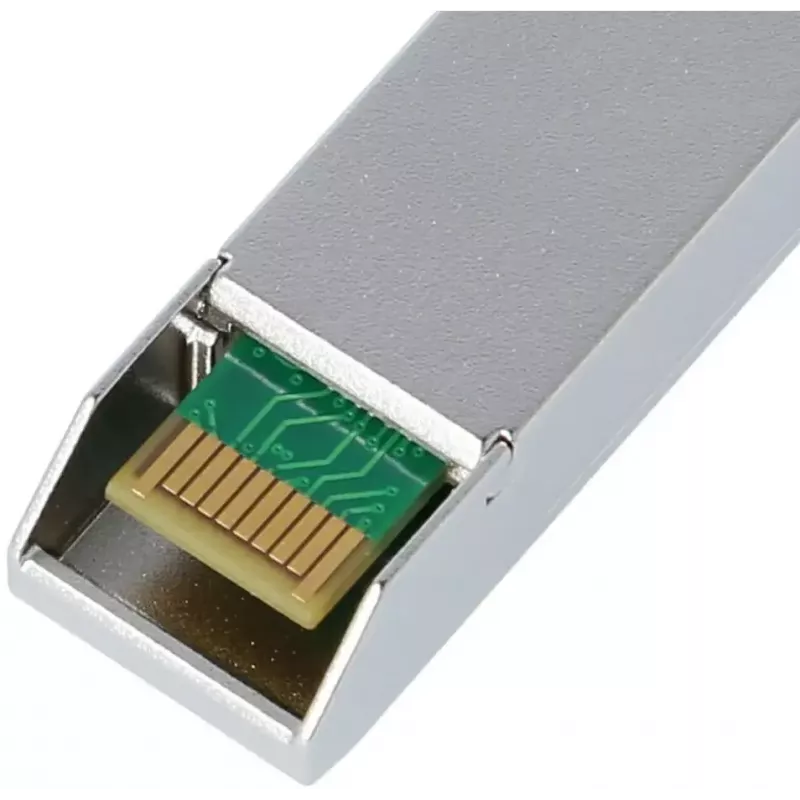

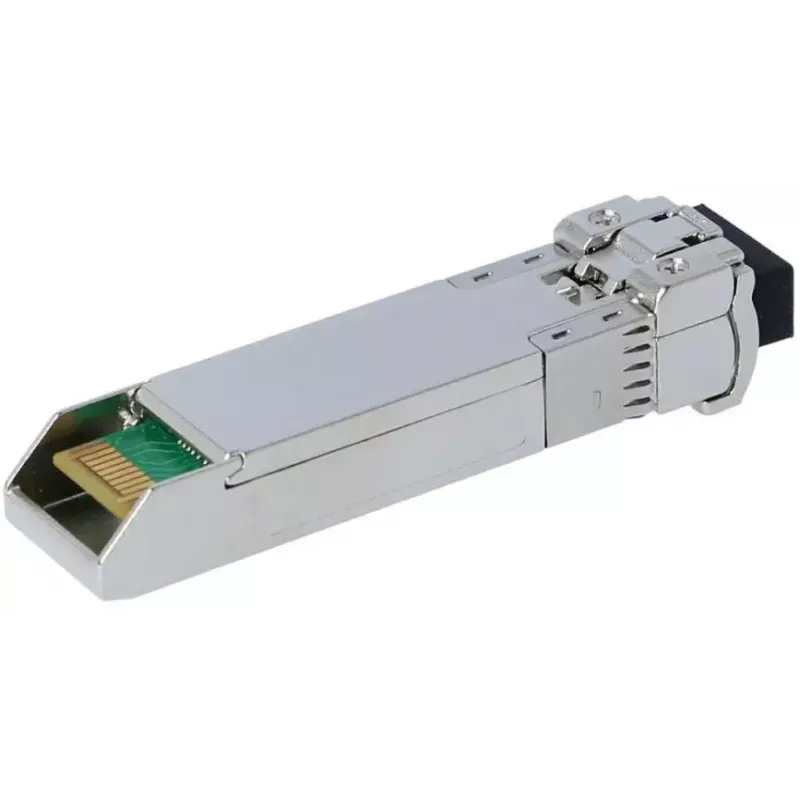

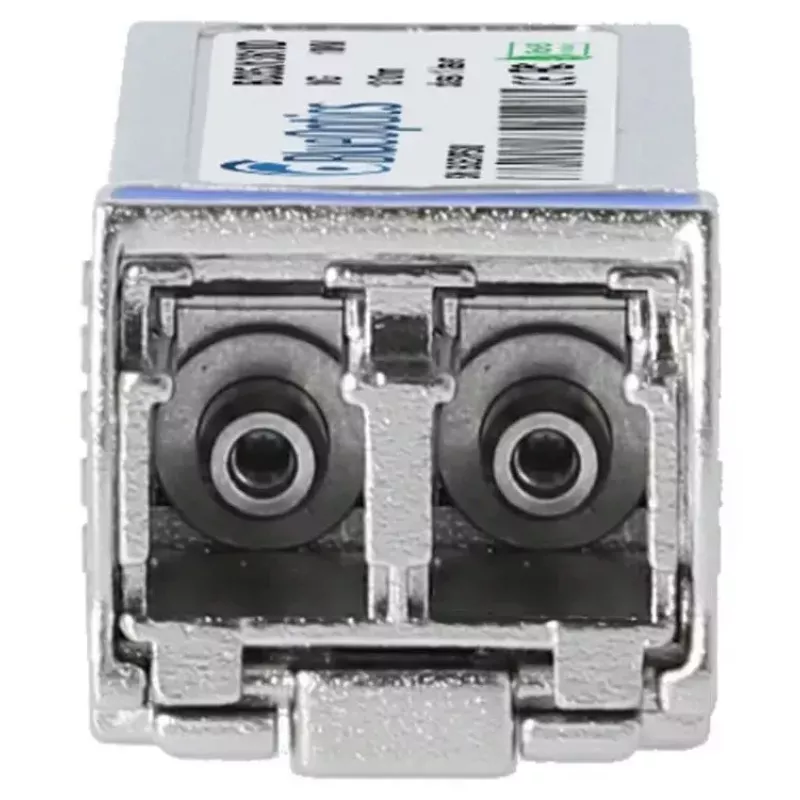

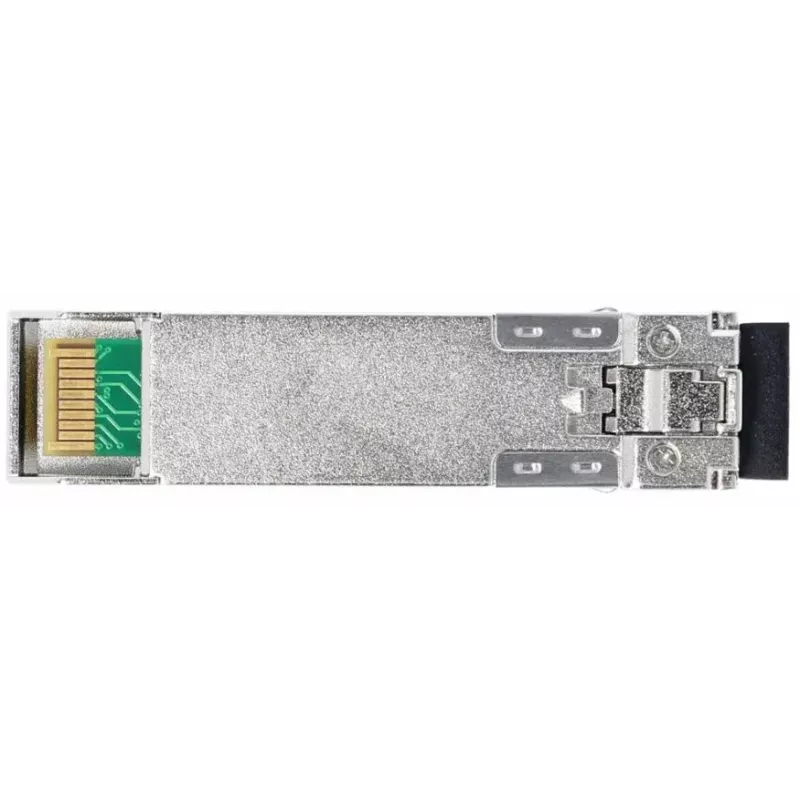

SFP+ transceiver BlueOptics X130 H3C JD094B 10000 Mbit/s 1310 nm

The BlueOptics X130 H3C JD094B is a compatible SFP+ transceiver module designed for single-mode fiber links. It supports a 10GBASE-LR interface with LC Duplex connector, transmits and receives at 1310 nm, and provides data rates up to 10000 Mbit/s over distances up to 10 km. The module follows MSA standards and is intended for use in HPE / H3C platforms and other systems that support the original HPE H3C JD094B 10GBASE-LR SFP+.

Advantages

The BlueOptics X130 H3C JD094B offers full MSA compliance, digital diagnostics monitoring (DDM/DOM) per SFF-8472, and compatibility testing with HPE / H3C hardware and software requirements. It is built using high-quality components (lasers and ICs) from established manufacturers, designed for long operational life and high MTBF, and meets common industrial standards such as CE and RoHS.

Suitable for

Key specifications

How to use

Insert the SFP+ transceiver into a compatible SFP+ slot on your switch, router or storage device until it latches. Connect LC Duplex single-mode fiber patch cords ensuring correct TX/RX orientation. Verify that the host device supports the DDM/DOM function if you intend to monitor diagnostics (voltage, temperature, laser bias, Tx/Rx power). Follow your hardware vendor's procedures for hot-plugging and firmware compatibility checks.

Recommendations

For optimal performance use high-quality single-mode LC patch cords and, if available, connect through a patch panel or directly to another 10GBASE-LR SFP+ transceiver. Confirm host compatibility with HPE/H3C JD094B transceivers and enable DDM/DOM in the management interface to monitor link status and optical parameters.
