SFP transceiver BlueOptics M-SFP-LX+/ LC EEC-BO 1250 Mbit/s 1310 nm

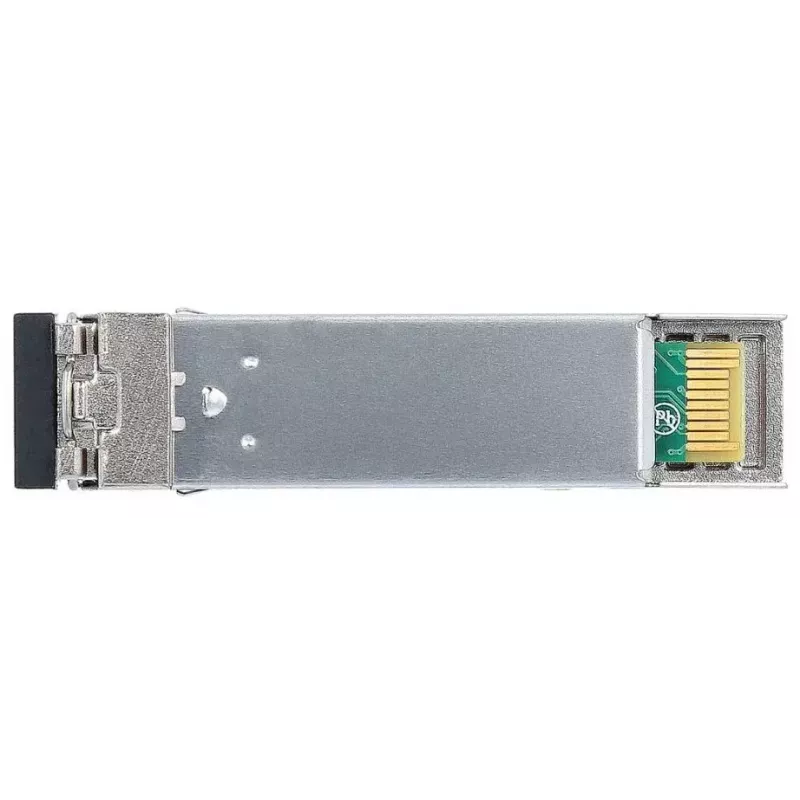

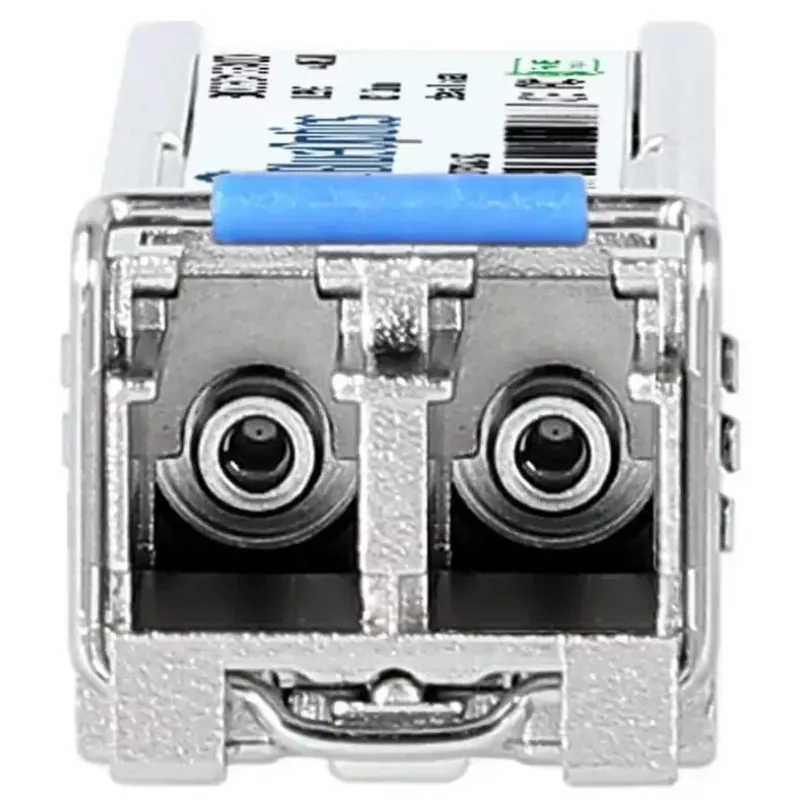

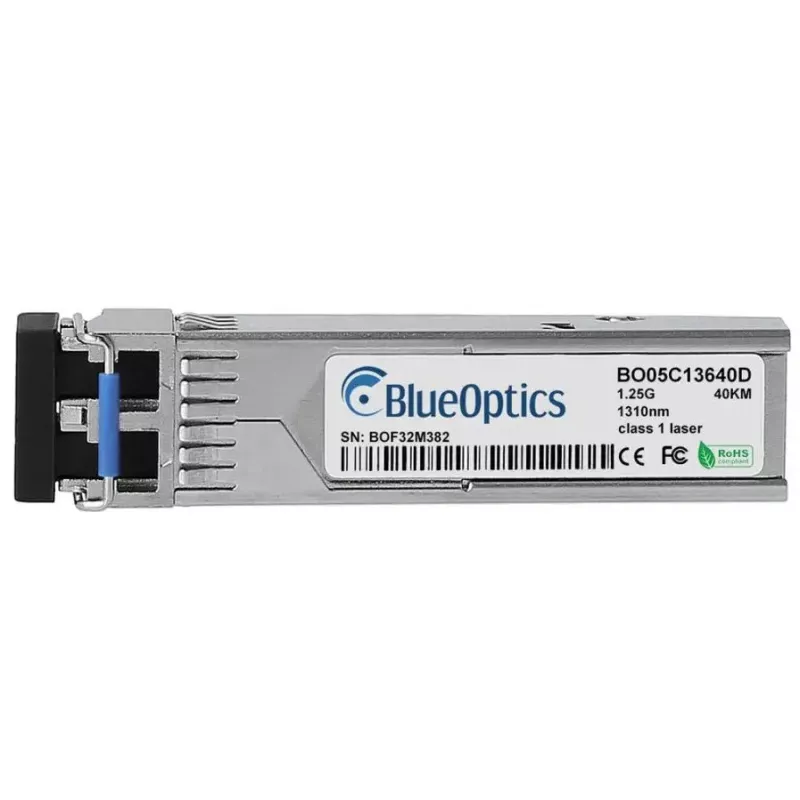

The BlueOptics M-SFP-LX+/ LC EEC-BO is a compact fiber optic SFP transceiver module designed for single-mode links. It supports a maximum data transfer rate of 1250 Mbit/s and transmits at a wavelength of 1310 nm. Housed in a metal enclosure with a silver finish and weighing 20 g, the module fits standard SFP ports and is intended for reliable network interconnection over extended distances up to 40,000 metres using LC connector cabling.

Advantages

The module offers a balance of portability and performance, combining a small form factor with an industry-standard SFP interface for easy deployment in switches, routers and media converters. Its metal housing provides mechanical robustness and thermal dissipation, while the LC fibre connector ensures secure, low-loss optical coupling. Support for operation at 1310 nm and long-range transmission capability makes it suitable for backbone and campus links.

Suitable for

Key specifications

How to use

Insert the BlueOptics SFP transceiver into a compatible SFP port until it locks in place and verify that the host device recognises the module. Connect a single‑mode LC-terminated fiber patch cable to the transceiver, observing correct transmit/receive orientation. Configure network devices as required for the link speed and operating mode. Monitor link LEDs or device diagnostics to confirm a stable optical connection.

Recommendations

Use clean LC connectors and follow standard fiber handling practices to avoid contamination and loss. For runs approaching the maximum distance, verify fiber type and attenuation budget; ensure device firmware and compatibility for SFP modules. Store the transceiver in anti-static packaging when not installed.
