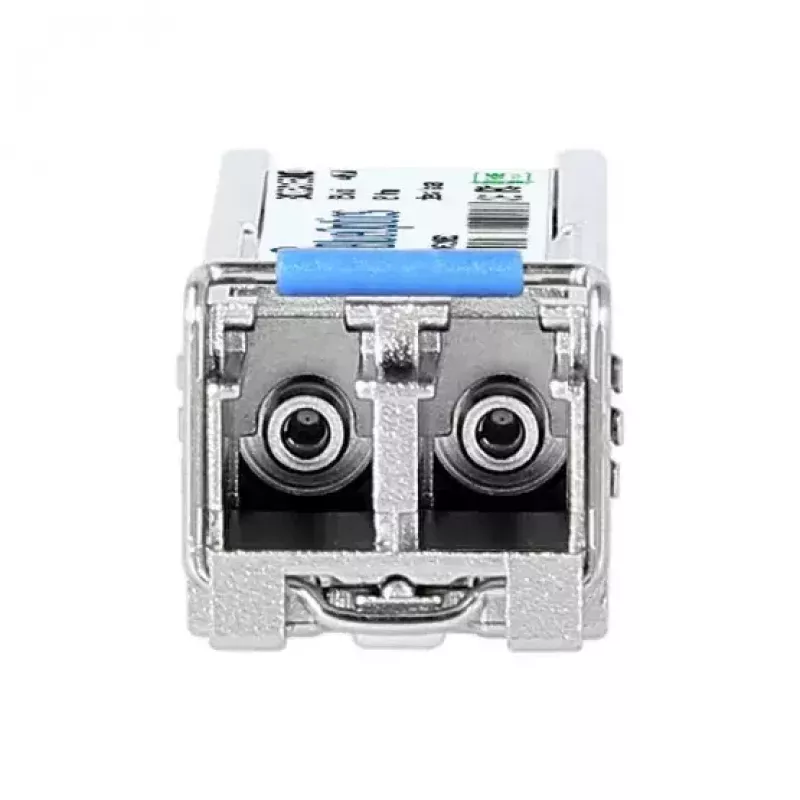

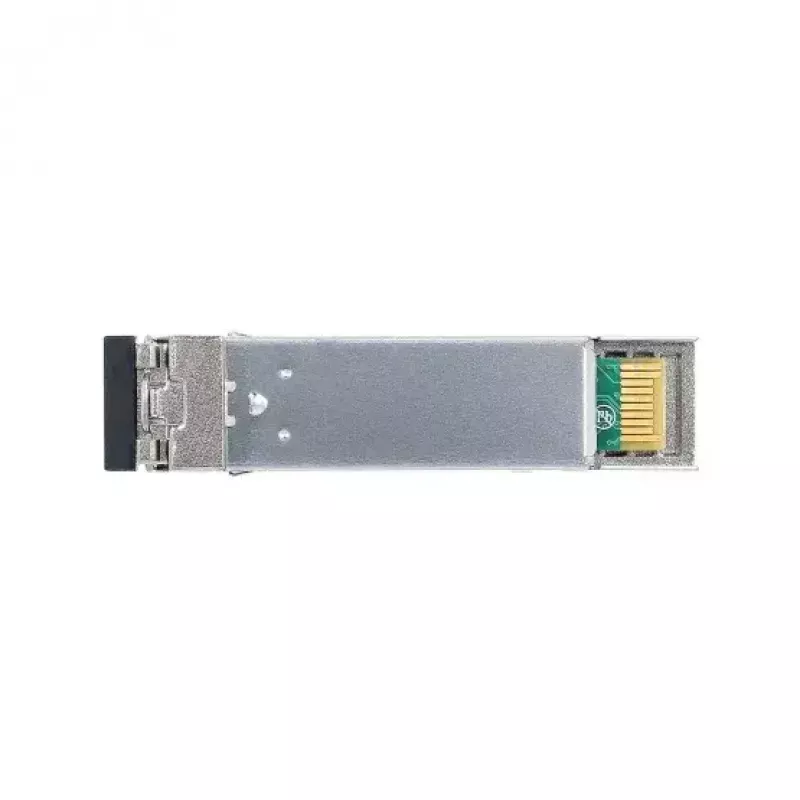

SFP transceiver BlueOptics AFCT-5765NPZ-BO 155 Mbit/s 1310 nm

The BlueOptics AFCT-5765NPZ-BO is an SFP fiber optic transceiver designed for single-mode links with a nominal data rate of up to 155 Mbit/s and an operating wavelength of 1310 nm. The module features an LC duplex connector, a metallic housing and is built to MSA SFP form-factor standards. It supports long-haul 100BASE-LH class transmission on single-mode fiber and is compliant with CE, FCC and RoHS regulations. With an MTBF of 1,000,000 hours and support for digital diagnostics (DDM/DOM) when the host system provides the interface, this transceiver is intended for reliable fiber connections in network equipment that accepts SFP modules.

Advantages

The transceiver provides compatibility with common SFP-based network devices through MSA-compliant mechanical and electrical interfaces. It combines a metal housing for mechanical robustness with a specification focused on long-range single-mode transmission at 1310 nm. Certification to CE, FCC and RoHS ensures it meets basic regulatory and environmental safety requirements, and the high MTBF figure indicates a long expected service life. When supported by the host, DDM/DOM allows remote monitoring of key optical and electrical parameters to simplify maintenance and fault finding.

Suitable for

• Single-mode fiber connections between switches, routers and storage systems
• Long-reach Ethernet links up to standard 100BASE-LH distances (typical up to 40 km with appropriate fiber)
• Environments that require SFP form-factor transceivers with DDM support
• Replacement or upgrade of existing SFP 1310 nm transceivers in compatible hardware

Key specifications

• Interface type: SFP (MSA-compliant)
• Nominal data rate: up to 155 Mbit/s (100BASE-LH class)
• Operating wavelength: 1310 nm
• Fiber type: single-mode
• Connector: LC duplex
• Typical reach: up to standard 100BASE-LH distances (industry practice up to ~40 km depending on fiber and margin)
• Housing: metallic
• Digital diagnostics: DDM/DOM (when supported by host hardware)
• Certifications: CE, FCC, RoHS
• MTBF: 1,000,000 hours
• Operating temperature range: industrial/standard class (refer to host/device specifications for exact limits)

How to use

Install the BlueOptics AFCT-5765NPZ-BO into any network device that accepts SFP modules and supports the required transmission class. Ensure the host device is powered down or follows the vendor's hot-swap procedure for SFP insertion and removal. Use LC duplex single-mode patch cords to connect the transceiver to the remote endpoint; observe correct TX/RX pairing. If DDM/DOM monitoring is required, confirm the host system exposes the diagnostic registers and use the device management interface to read optical power, bias current, supply voltage and temperature values. Verify link parameters and fiber attenuation to ensure the expected reach and signal margin.

Recommendations

Use single-mode LC duplex patch cords of suitable quality and length for long-reach links, keep connector endfaces clean, and verify compatibility with the host hardware before deployment. For remote monitoring enable DDM/DOM only if supported by the device to obtain real-time diagnostics. Follow manufacturer guidelines for ESD protection and insertion/removal to preserve module lifetime.
