SFP Module DeLOCK 100Base-FX MM 1310 nm DDM

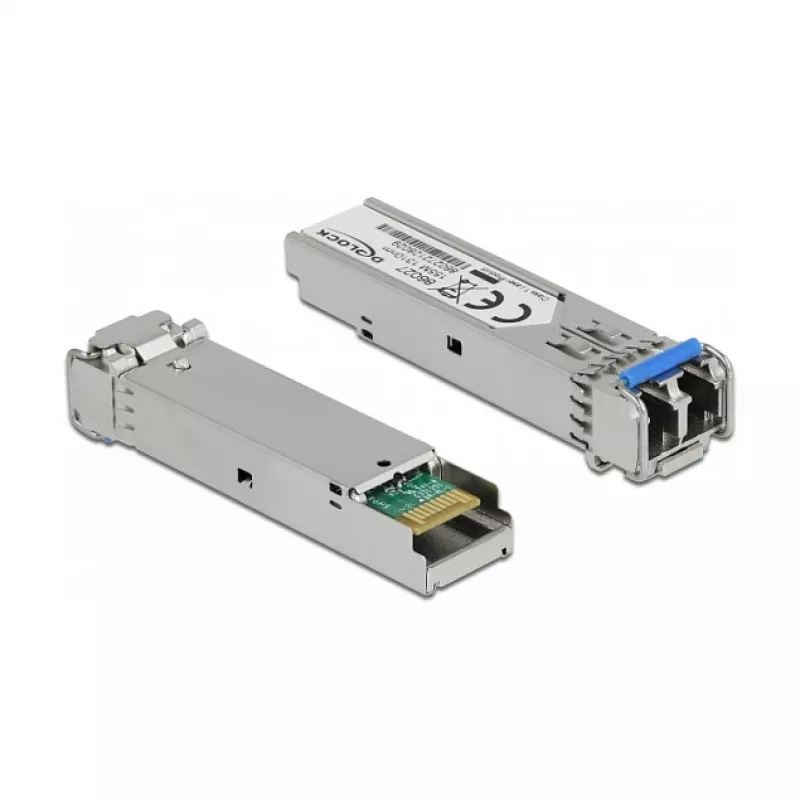

The DeLOCK SFP Module 100Base-FX MM 1310 nm DDM is a compact fiber optic transceiver for expanding network devices with an available SFP slot to an optical fibre interface. It supports Fast Ethernet at up to 100 Mbit/s over multimode fibre and includes Digital Diagnostics Monitoring (DDM) for real-time status information. The module has an LC connector and comes in a silver housing.

Advantages

This SFP module provides a standardized SFP interface for easy hot-plug installation into compatible switches and media converters. With DDM functionality it enables monitoring of optical parameters such as transmit/receive power and temperature. The compact silver form factor saves space in rack-mounted or compact network devices and supports link distances up to 20,000 m over suitable multimode fibre.

Suitable for

• Upgrading switches or routers with a free SFP slot to optical fibre connections
• Connecting Fast Ethernet segments over multimode fibre
• Use in media converters and compact network equipment requiring LC connector modules

Key specifications

• Standard: 100Base-FX (Fast Ethernet)
• Data rate: 100 Mbit/s
• Wavelength: 1310 nm
• Maximum transfer distance: 20000 m
• Connector type: LC
• Interface: SFP
• Feature: Digital Diagnostics Monitoring (DDM)
• Colour: Silver

How to use

Insert the SFP module into an available SFP slot on a compatible switch, router or media converter until it clicks into place. Connect an LC-terminated multimode fibre cable to the module's LC port, observing correct TX/RX orientation. After installation, verify link status on the host device and use DDM-capable management tools or the host to monitor optical parameters and ensure proper operation.

Recommendations

Use certified multimode fibre and appropriate LC patch cords for the specified wavelength and distance. Ensure the host device supports 100Base-FX SFP modules and DDM if monitoring is required. Avoid exposing the optical interface to dust; use dust caps when the module is not connected.
