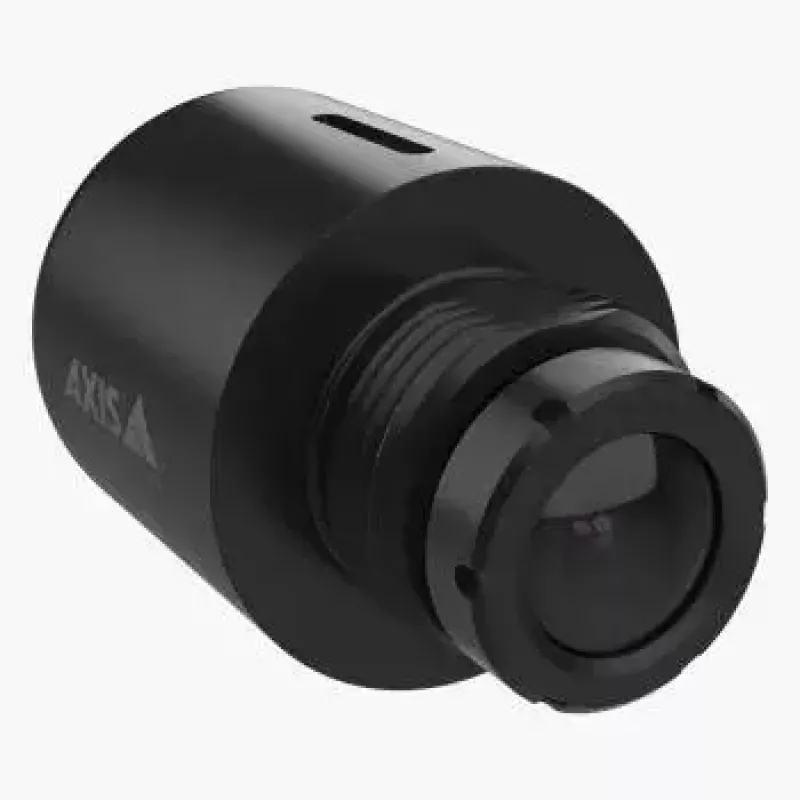

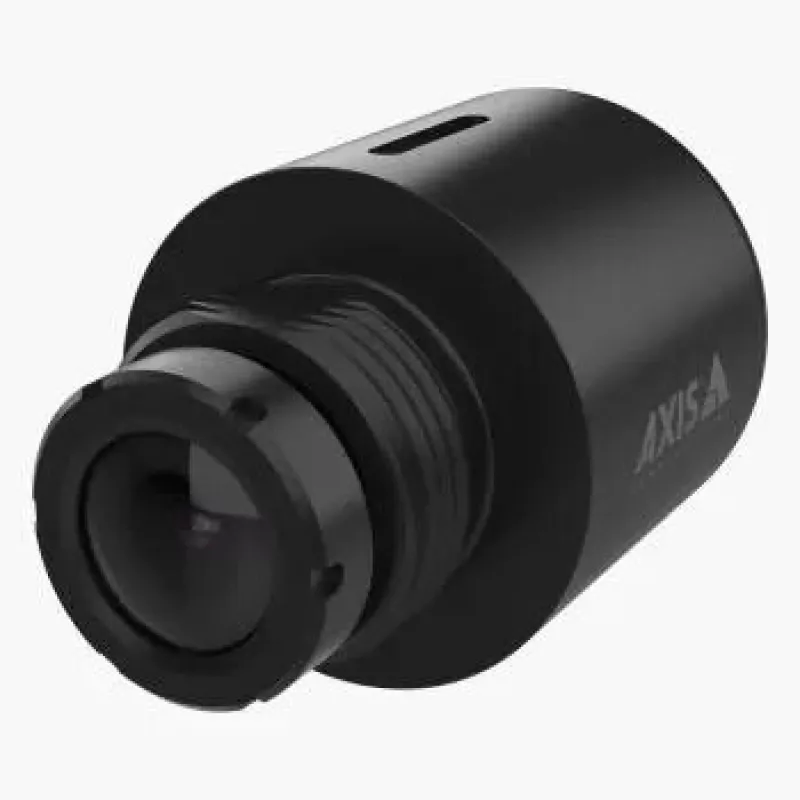

Sensor unit Axis 02640-021 CMOS 3.1mm Black

AXIS F2105-RE sensor unit (model 02640-021) is a ruggedized CMOS sensor module with a 3.1 mm focal length, designed for divided network camera installations where only a small sensor is visible externally. It supports 1080p at 60 fps or 720p at 180 fps when paired with AXIS F9111, provides an approximately 108° field of view, and delivers good low-light color performance. The unit is built for harsh environments and can operate intermittently between -40 °C and 70 °C. It connects to the camera core using Axis cables with SMA-FAKRA connectors (cable runs up to 30 m / 98 ft) to resist vibration and enable ruggedized installations. Typical power consumption is around 1 W with a maximum of 4 W. Each pack contains 8 black sensor units, suitable for multi-unit deployments.

Advantages

The sensor unit offers high-frame-rate video options when used with AXIS F9111 and an unusually wide 108° field of view for a compact 3.1 mm module. Its ruggedized design and SMA-FAKRA cable interface provide vibration resistance and reliable connections for challenging installation environments. Low-light color capability and wide operating temperature range make it suitable for both indoor and tough outdoor conditions. Low typical power consumption supports energy-efficient deployments.

Suitable for

• Distributed/divided network camera systems where a compact sensor is needed
• Rugged installations exposed to vibration or wide temperature ranges
• Multi-camera projects requiring small, discrete external sensors
• Applications needing wide field of view and good color performance in low light

Key specifications

• Model: Axis 02640-021
• Sensor type: CMOS
• Focal length: 3.1 mm
• Video: 1080p @ 60 fps or 720p @ 180 fps (with AXIS F9111)
• Field of view: ~108°
• Power consumption: typical 1 W, max 4 W
• Connector/cable: SMA-FAKRA via Axis cables, up to 30 m (98 ft)
• Operating temperature: intermittent -40 °C to 70 °C (-40 °F to 158 °F)
• Color: Black
• Pack quantity: 8 units

How to use

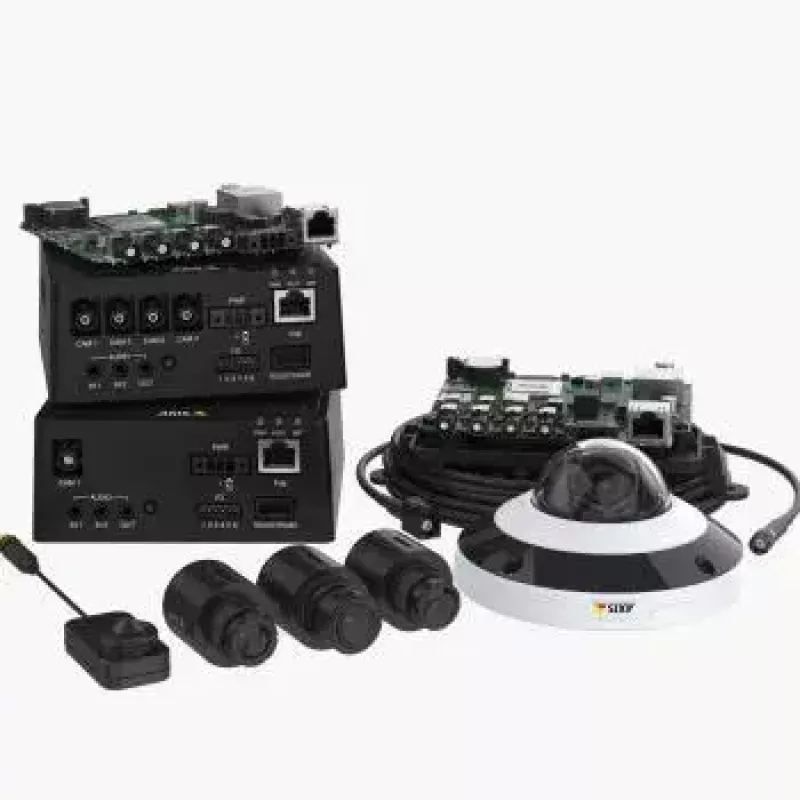

Install the sensor unit as part of a divided network camera system, mounting the small external sensor where discreet observation is required. Route Axis SMA-FAKRA cables to the camera core, keeping cable runs within the recommended maximum of 30 m (98 ft). Pair the sensor with an AXIS F9111 camera core to enable the high-frame-rate modes (1080p@60 fps or 720p@180 fps). Ensure the sensor is connected to a power source that meets the device’s typical and peak consumption requirements. Follow standard coaxial/cable strain-relief and vibration-resistant mounting practices for rugged environments.

Recommendations

For reliable operation in vibration-prone or temperature-extreme locations, use genuine Axis SMA-FAKRA cables and mounting hardware, keep cable lengths within 30 m (98 ft), and verify the camera core firmware compatibility (AXIS F9111) to access high-frame-rate video modes.
