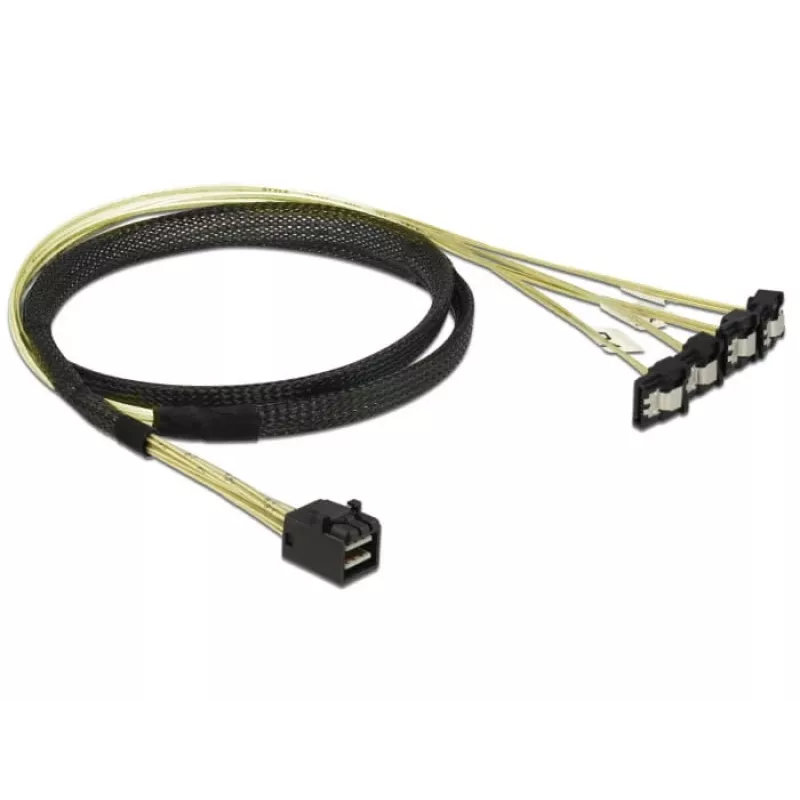

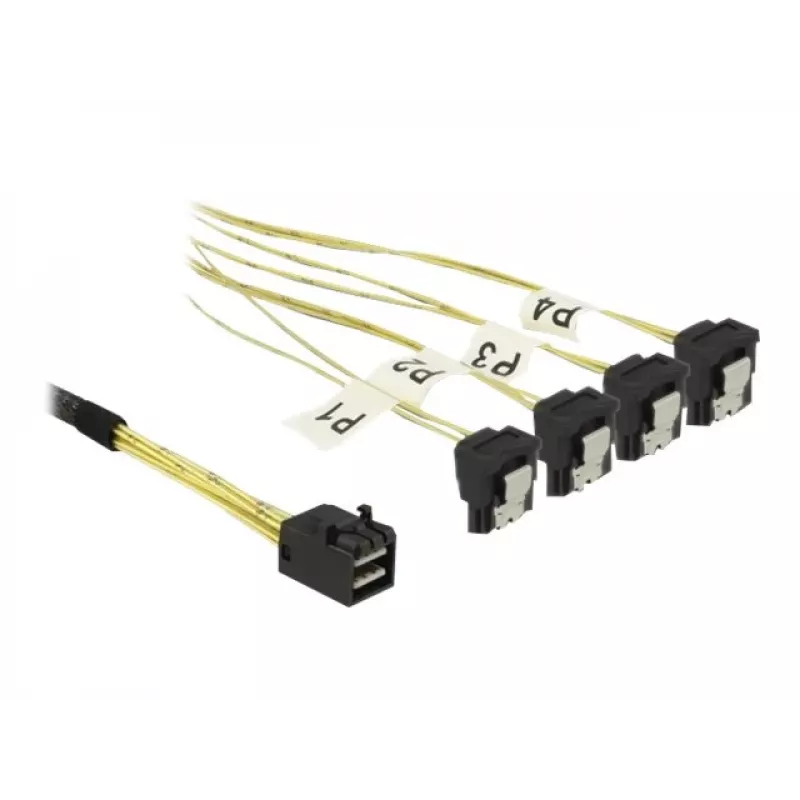

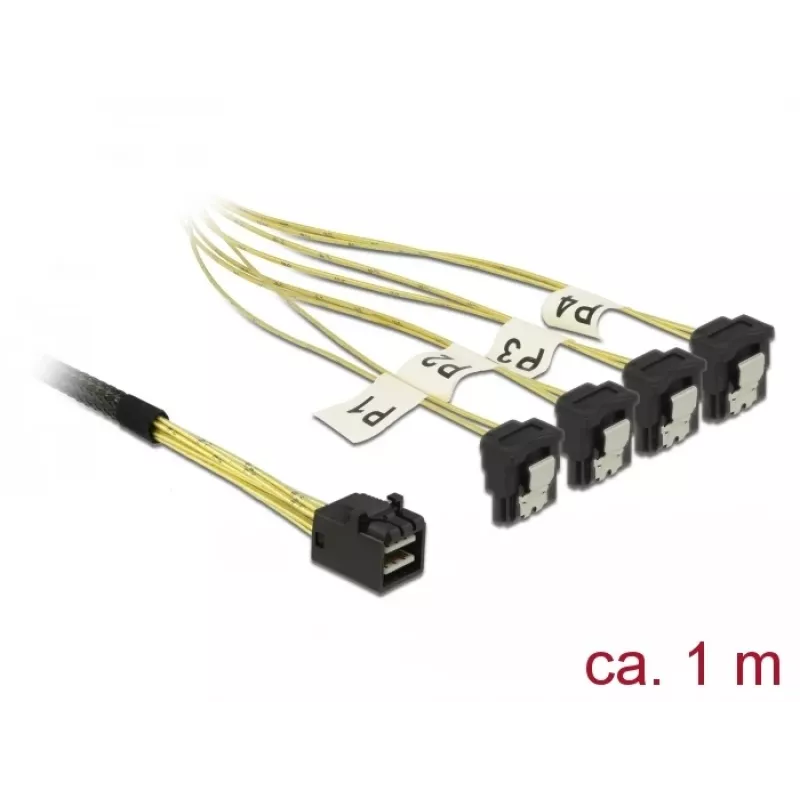

SCSI cable DeLOCK 85685 Black Yellow 1 m 1 x Mini SAS HD SFF-8643 4 x SATA 7 pin

This SAS cable by Delock connects internal SAS devices, for example a controller with a Mini SAS HD (SFF-8643) connector to up to four SATA drives. The cable is 1 m long and has a black and yellow colour scheme. It is intended for reliable internal storage connections and high-speed data transfer between a Mini SAS HD port and SATA 7-pin devices.

Advantages

The DeLOCK 85685 offers a compact single-cable solution to link a Mini SAS HD (SFF-8643) host port to four SATA drives, saving space and reducing cabling complexity. With a 1 m length it is suitable for typical internal rack or desktop layouts, and the durable construction and standard connectors ensure compatibility with common controllers and HDD/SSD devices.

Suitable for

• Connecting a Mini SAS HD (SFF-8643) controller to multiple SATA HDDs or SSDs
• Internal server and workstation storage cabling
• Small RAID arrays using a single Mini SAS HD port
• Replacing or organizing internal cables in NAS or desktop cases

Key specifications

• Cable length: 1 m
• Connector 1: 1 x Mini SAS HD (SFF-8643)
• Connector 2: 4 x SATA 7-pin
• Product colour: Black, Yellow
• Brand: DELOCK
• MPN: 85685
• EAN: 4043619856855

How to use

Power off the system and unplug it from mains before installing. Plug the Mini SAS HD (SFF-8643) connector into the corresponding host or controller port. Connect the four SATA 7-pin connectors to the SATA ports of the target drives, ensuring secure seating. Reconnect power and power on the system. Configure drives in the operating system or RAID controller as required.

Recommendations

Use this cable only for internal connections inside a powered-off computer or server. Avoid sharp bends and excessive pulling on the cable; route it to prevent contact with hot components or moving parts. Verify controller and drive compatibility with Mini SAS HD to SATA breakout cables before deployment.
