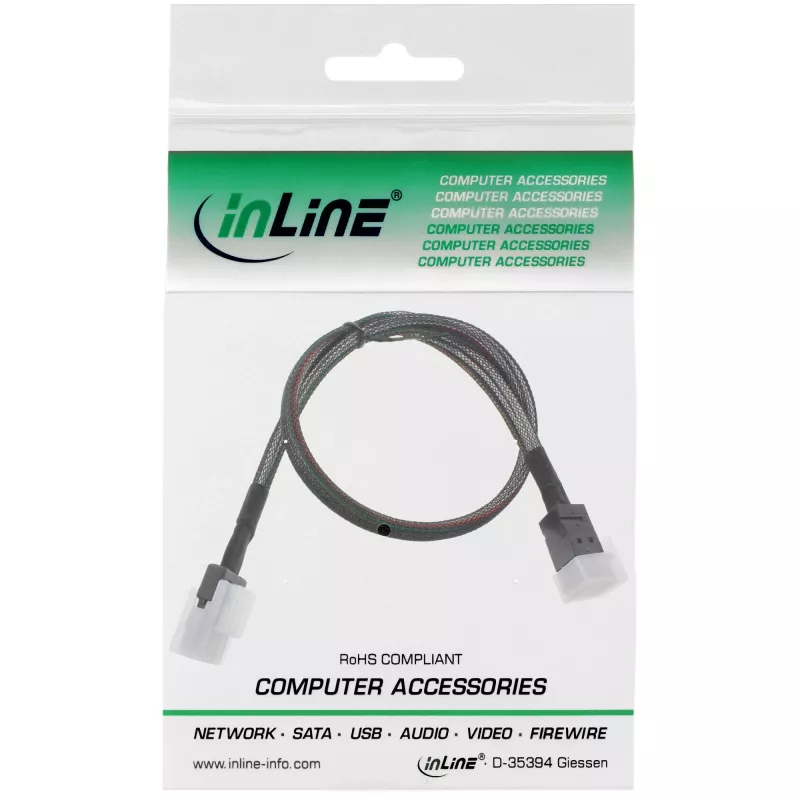

InLine Mini SAS HD Cable SFF-8643 to SFF-8087 with Sideband 0.5m

Efficient connection for storage systems:Connects SAS controllers to backplanes via Mini-SAS HD (SFF-8643) to SAS (SFF-8087) interfaces.
Reliable internal data transfer:Ideal for integration into server and storage systems with high data rates.
Sideband support for advanced functions:Transmits additional signals for monitoring and control.
Space-saving cabling:Compact, straight connector for easy installation even in confined spaces.
Professional quality for long-term use:Robust design for stable and durable connections in 24/7 operation.

The InLine® Mini-SAS HD cable with sideband function offers a high-quality solution for internal connection between Mini-SAS HD (SFF-8643) and SAS (SFF-8087) interfaces. It is ideal for connecting a SAS controller to a backplane and supports additional control and monitoring functions thanks to the sideband line. The straight design of the SFF-8643 connector allows for space-saving integration into compact server enclosures and industrial storage systems. The robust construction ensures reliable data transmission even during continuous use under professional conditions. This cable is particularly suitable for system integrators who require a stable connection solution in the field of server and storage technology. The clearly defined interface architecture ensures smooth communication between components without signal loss or compatibility issues.

Interfaces: SFF-8643 connector (Mini-SAS HD) to SFF-8087 connector (SAS)
Connector design: SFF-8643 straight
Application: Internal connection cable
Function: With sideband

InLine Mini SAS HD Cable SFF-8643 to SFF-8087 with Sideband 0.5m. Cable length: 0.5 m, Connector 1: SFF-8087, Connector 2: SFF-8087. Package width: 100 mm, Package depth: 140 mm, Package height: 18 mm. Package volume: 300 cm³

How to use

Install the cable internally by powering down the system and opening the server or workstation chassis. Align the SFF-8643 plug with the Mini SAS HD 4i port on the SAS controller and insert until it seats firmly; align the SFF-8087 end with the backplane or target device and insert. Secure any cable routing to avoid strain on connectors and restore power. Verify device detection in the system BIOS or RAID controller utility.

Recommendations

Use this 0.5 m Mini SAS HD cable for short internal connections only. Avoid bending the cable sharply near the connectors, keep the routing clear of fans and hot components, and ensure the system is powered off before connecting or disconnecting to prevent connector damage.
