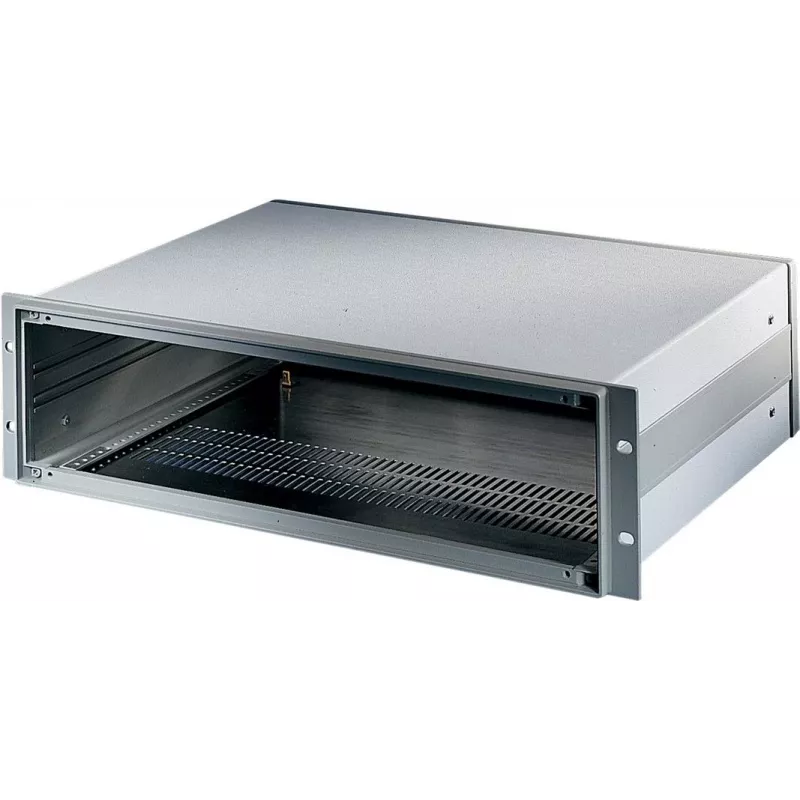

SCHROFF INPAC 19-Inch Subrack Housing 3U 254.5mm Depth 10828151

When building a 19-inch rack-mount system, finding a housing that offers both structural rigidity and easy customization can be a challenge. The SCHROFF INPAC subrack housing solves this by providing a modular, screw-together enclosure specifically designed for 3U applications with a depth of 254.5 mm. Its robust aluminum side panels and steel covers ensure reliable protection for your electronics, while the natural aluminum and light grey finish blend seamlessly into professional environments.

Who is it for

This subrack housing is ideal for engineers, system integrators, and manufacturers who need a dependable enclosure for PCBs, electronic modules, test and measurement equipment, or custom Eurocard-based systems. It suits both prototyping and production runs where standard 19-inch mounting is required.

Main features

• 3U height (133.35 mm) and 19-inch width, compliant with IEC 60297-3-100.
• Modular screw-together construction for easy assembly and disassembly.
• Aluminum side panels with anodized finish for durability and lightweight strength.
• Steel top and bottom covers with powder-coated light grey (RAL 7035) finish.
• Depth of 254.5 mm provides ample space for standard Eurocards and components.
• Includes side panels, front/rear panels, top/bottom covers, and assembly material.

Specifications

• Brand: SCHROFF
• Model: 10828151
• MPN: 10828151
• EAN: 4036088039522
• Product Type: 19-inch rack mount housing / subrack
• Series: INPAC
• Rack Units: 3U
• External Height: 133.35 mm
• External Width: 482.6 mm
• External Depth: 254.5 mm
• Material (Side Panels): Aluminum
• Material (Covers): Steel
• Surface Finish (Side Panels): Anodized
• Surface Finish (Covers): Powder-coated
• Color (Side Panels): Natural Aluminum
• Color (Covers): Light Grey (RAL 7035)
• Mounting Standard: IEC 60297-3-100
• Included Components: Side panels, front/rear panels, top/bottom covers, assembly material
• Compatibility: Eurocards and standard electronic components
• Environmental Protection: Indoor use, non-sealed

Tips

For best results, pair this housing with SCHROFF accessories such as guide rails, front panels, and handles to complete your subrack assembly. Ensure proper ventilation if your electronics generate significant heat, as the enclosure is not sealed. The modular design allows for easy modification, so you can drill custom holes or add connectors as needed.
