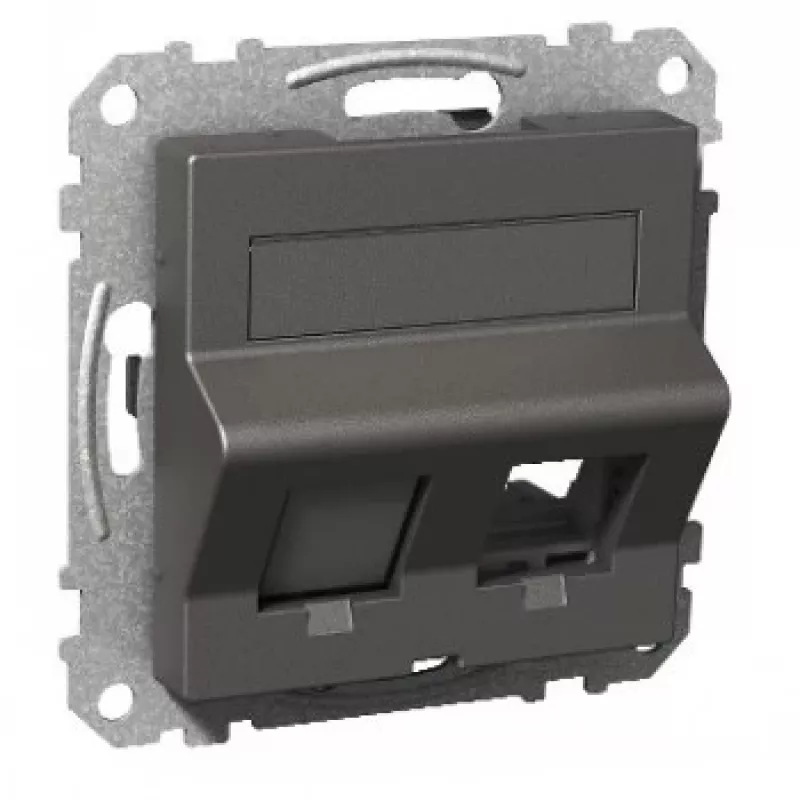

Schneider Electric Exxact Datacase Actassi/Keystone Oblique Anthracite Data Outlet Frame

The Schneider Electric Exxact Datacase Actassi/Keystone Oblique Anthracite is a high-quality data outlet frame designed for modern network installations. Part of the Exxact series, this flush-mounting frame accommodates up to 2 modules and supports both Actassi and Keystone modules. Its oblique (angled) design facilitates easy cable management and reduces strain on connectors. The anthracite color and matte finish provide a sleek, professional appearance suitable for any indoor environment.

Advantages

This data outlet frame offers several benefits: front-loading module insertion for quick installation, halogen-free materials for enhanced safety, and a robust thermoplastic ABS construction with IP20 and IK04 ratings for durability. The angled orientation improves cable routing and minimizes bend radius, ensuring reliable data transmission.

Suitable for

• Data network and telecommunication applications
• Flush mounting in walls or surface-mounted boxes
• Office, commercial, and residential indoor installations

Key specifications

• Product Type: Data Outlet Frame
• Series: Exxact
• Number of Modules: 2
• Module Compatibility: Actassi, Keystone
• Orientation: Oblique (Angled)
• Color: Anthracite
• Mounting Type: Flush Mounting
• Material: Thermoplastic ABS
• Finish: Matte
• IP Rating: IP20
• IK Rating: IK04
• Application: Data Network, Telecommunication
• Installation Environment: Indoor
• Halogen Free: Yes
• Design: Square, Modern
• Module Insertion: Front-loading
• Operating Temperature: -5 to 40 °C
• Storage Temperature: -15 to 50 °C

Recommendations

For optimal performance, pair this frame with compatible Actassi or Keystone modules and use appropriate cabling. Ensure proper installation by a qualified professional to maintain IP20 protection.
