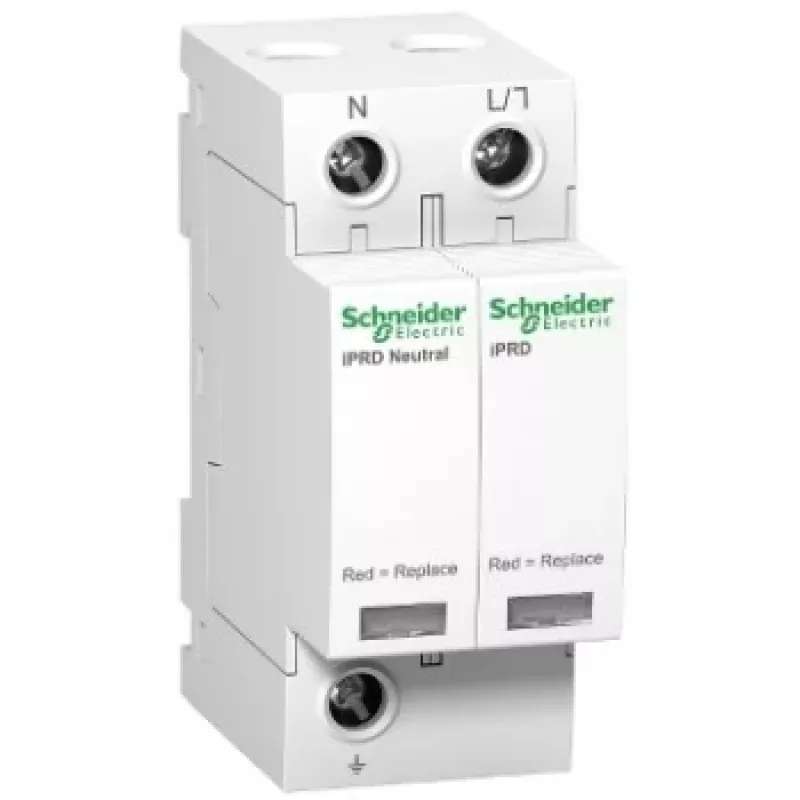

Schneider Electric Acti 9 iPRD Surge Protective Device Type 2+3 1P+N 8kA

The Schneider Electric Acti 9 iPRD surge protective device (SPD) is a high-performance Type 2+3 combined arrester designed to protect low-voltage electrical installations against transient overvoltages. Suitable for 1-phase + neutral (1P+N) networks, this compact DIN rail mounted unit provides both main and fine protection in a single device, simplifying installation and saving space.

Advantages

Combines Type 2 and Type 3 protection in one module, reducing the need for multiple devices. Features a removable cartridge for easy maintenance and a visual status indicator (green/red flag) for quick operational checks. Complies with IEC 61643-11 and EN 61643-11 standards, ensuring reliable performance.

Suitable for

• Residential and commercial electrical panels
• Protection of sensitive electronic equipment
• Single-phase TN and TT systems

Key specifications

• SPD Type: Type 2 + Type 3
• Network Configuration: 1P+N (1-phase + neutral)
• Maximum Continuous Operating Voltage (Uc): 275 V AC
• Nominal Discharge Current (In): 5 kA (L-N, N-PE)
• Maximum Discharge Current (Imax): 8 kA (L-N, N-PE)
• Voltage Protection Level (Up): <1.2 kV (L-N), <1.5 kV (N-PE)
• Short-circuit Withstand Capability (Isccr): 50 kA
• Mounting: DIN rail, 2 modules (36 mm)
• Protection Rating: IP20 (terminals), IP40 (front face)
• Operating Temperature: -25 to 60 °C
• Technology: Metal Oxide Varistor (MOV)

Recommendations

For optimal protection, install this SPD at the main distribution board. Ensure proper earthing and bonding according to local regulations. Regularly check the status indicator and replace the cartridge if the red flag is visible.
