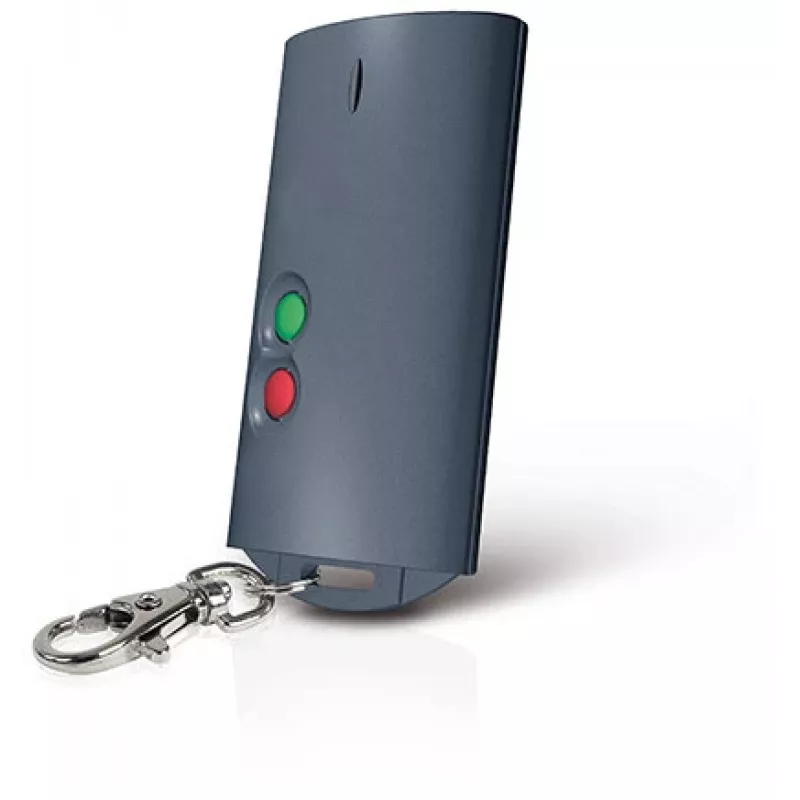

SATEL T-2 Pilot 2-Channel Remote Control for Radio Receivers

The SATEL T-2 Pilot is a professional two-channel remote control designed for use with SATEL and compatible 433.92 MHz radio receivers. It features KEELOQ dynamic code encryption for high security, making it ideal for gate openers, garage doors, alarm systems, and access control applications.

Advantages

High-security rolling code technology prevents code grabbing and unauthorized access. Compact and durable ABS housing ensures long-lasting performance in various environments. Low power consumption extends battery life, and the LED indicator confirms transmission status.

Suitable for

• Gate openers and garage doors
• Alarm systems and access control
• Industrial remote control applications

Key specifications

• Number of Channels: 2
• Operating Frequency: 433.92 MHz
• Encoding: KEELOQ Dynamic Code (Rolling Code)
• Security Code Combinations: Over 4 billion
• Modulation: ASK
• Power Supply: 1 x 12V A23 battery
• Transmission Range: Up to 100 m (open field)
• Operating Temperature: -20°C to +55°C
• Standby Current: ~0.001 mA
• Transmission Current: ~10 mA
• Buttons: 2 independent
• LED Indicator: Yes
• Housing Material: ABS plastic

Recommendations

For optimal performance, use with SATEL or compatible 433.92 MHz receivers. Replace the battery when the LED dims or fails to light. Keep away from extreme moisture and direct sunlight.
