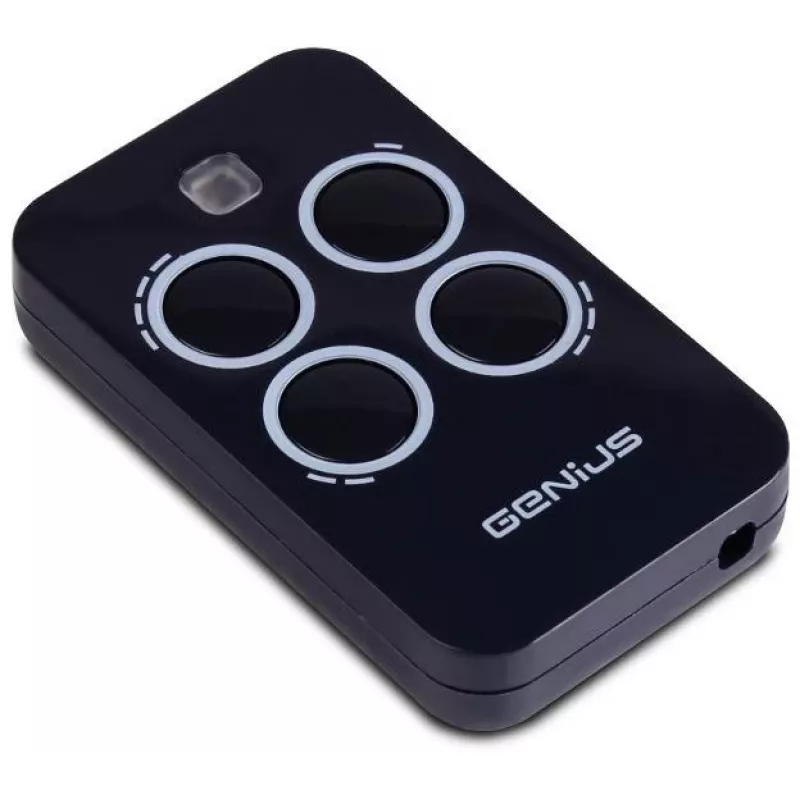

Genius Pilot Echo TX4 4-Channel Remote Control

The Genius Pilot Echo TX4 is a high-quality 4-channel remote control designed for gate automation systems. Operating at 433.92 MHz with fixed code technology, it provides reliable and secure control for gate openers, garage doors, and access control systems. The remote features tactile push buttons and an LED indicator for transmission confirmation, ensuring ease of use and peace of mind.

Advantages

This remote control offers a robust range of up to 50 meters line of sight, making it suitable for residential and light commercial applications. Its compact and durable ABS plastic housing in black/grey ensures longevity and a professional appearance. The included 12V 23A battery allows for immediate use, and the fixed code transmission provides a basic level of security against unauthorized access.

Suitable for

• Gate openers and garage door openers
• Access control systems
• Genius gate automation systems with 433.92 MHz fixed code receivers

Key specifications

• Frequency: 433.92 MHz
• Number of Channels: 4
• Coding Type: Fixed Code
• Battery Type: 12V 23A (Alkaline)
• Operating Range: Up to 50 meters (line of sight)
• Enclosure Material: ABS Plastic
• Color: Black / Grey
• LED Indicator: Yes
• Operating Temperature: -20°C to +55°C
• Transmission Power: < 10 mW ERP

Recommendations

For optimal performance, ensure compatibility with your existing receiver. The remote can be programmed via receiver-based programming or cloned from an existing remote. Always test the range and functionality after installation.
