SATEL SLIM-PIR-LUNA Digital PIR Motion Detector with Lighting Function

The SATEL SLIM-PIR-LUNA is a digital passive infrared (PIR) motion detector with an integrated LED lighting function, designed for indoor security and convenience. It combines reliable motion detection with configurable motion-activated lighting, making it ideal for residential and commercial applications.

Advantages

Integrated LED lighting provides illumination upon detection, enhancing security and comfort. Pet immunity up to 20 kg reduces false alarms. Digital signal processing ensures stable detection. Compact and aesthetic design fits any interior.

Suitable for

• Indoor security systems in homes and offices
• Corridors, staircases, and entryways requiring automatic lighting
• Areas where pet-friendly detection is needed

Key specifications

• Detection method: Passive Infrared (PIR)

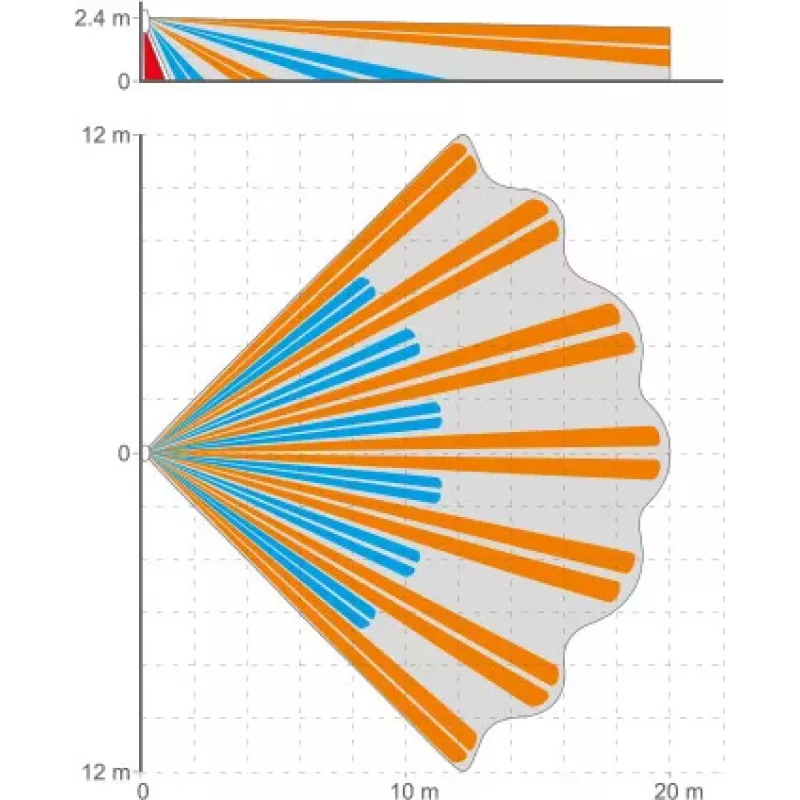

• Detection range: 15 m
• Detection angle: 90°
• Recommended installation height: 2.4 m
• Power supply: 10.5 V DC - 14 V DC
• Max current consumption: 100 mA (with LEDs on)
• Standby current consumption: 12 mA
• Alarm output: NC (Normally Closed) relay
• Tamper output: NC (Normally Closed) relay
• LED lighting: Integrated, motion-activated, configurable
• Pet immunity: Up to 20 kg (selectable)
• Operating temperature: -10°C to +55°C
• Environmental class: II (EN 50130-5)
• Security grade: Grade 2 (EN 50131-2-2)
• Digital signal processing: Yes
• Lens type: Fresnel
• Housing material: ABS Plastic
• Application: Indoor

Recommendations

For optimal performance, install at the recommended height of 2.4 m and avoid direct sunlight or heat sources. Configure pet immunity according to your pet's weight. Use with a compatible alarm control panel.
