SAS Cable Intel CYPCBLSL104KIT 0.42m

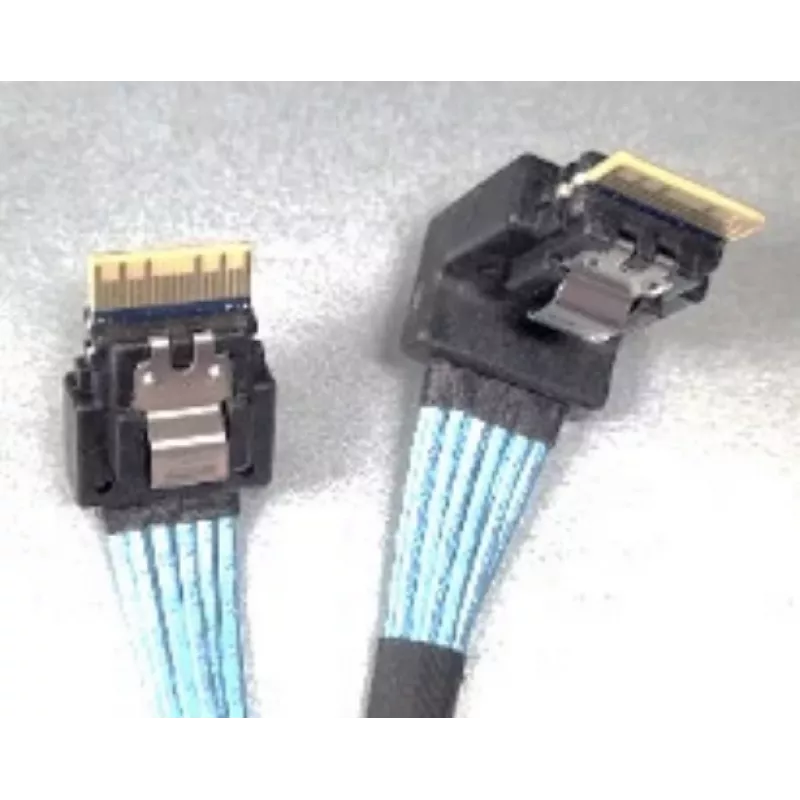

Cable for 1U 4 x 2.5” system (M50CYP1UR204) to support PCIe NVMe drives in front drive bay. The Intel CYPCBLSL104KIT is a 0.42 m Serial Attached SCSI (SAS) cable with SlimSAS A and SlimSAS B connectors, designed for high-speed data transfer and reliable connectivity in server and storage environments. Its short length helps manage cables in compact chassis while maintaining signal integrity for front-mounted NVMe or SATA devices.

Advantages

The cable provides a compact 0.42 m connection length suitable for 1U chassis and front drive bay layouts. SlimSAS A and SlimSAS B connectors support reliable high-speed links for PCIe NVMe drives and other SAS/SATA devices. The cable is intended to reduce clutter and routing complexity in tight server environments while preserving stable data transmission characteristics.

Suitable for

• Connecting PCIe NVMe drives in front 1U 4×2.5” drive bays
• Short internal links between backplanes and controller cards in rack servers
• Tight chassis where a 0.42 m cable length is required

Key specifications

• Brand: INTEL
• Manufacturer part number (MPN): CYPCBLSL104KIT
• EAN: 5032037213158
• Type: Serial Attached SCSI (SAS) cable
• Connector types: SlimSAS A to SlimSAS B
• Length: 0.42 m
• Compatible with: 1U 4×2.5” drive systems (M50CYP1UR204) and PCIe NVMe front drive bays

How to use

Power down the server and follow standard ESD precautions. Route the 0.42 m SAS cable from the front drive bay connector to the host controller or backplane connector, aligning SlimSAS A and SlimSAS B ends to their corresponding ports. Firmly seat each connector until it clicks or is fully engaged. Verify connections in the system BIOS/firmware and confirm that the NVMe drives are detected before closing the chassis and powering the system back on.
