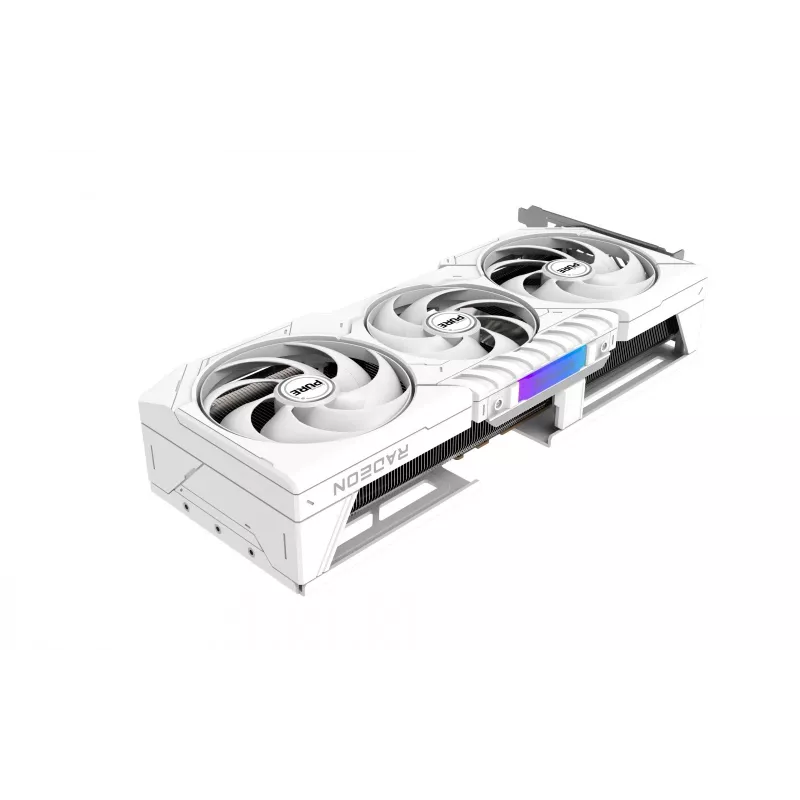

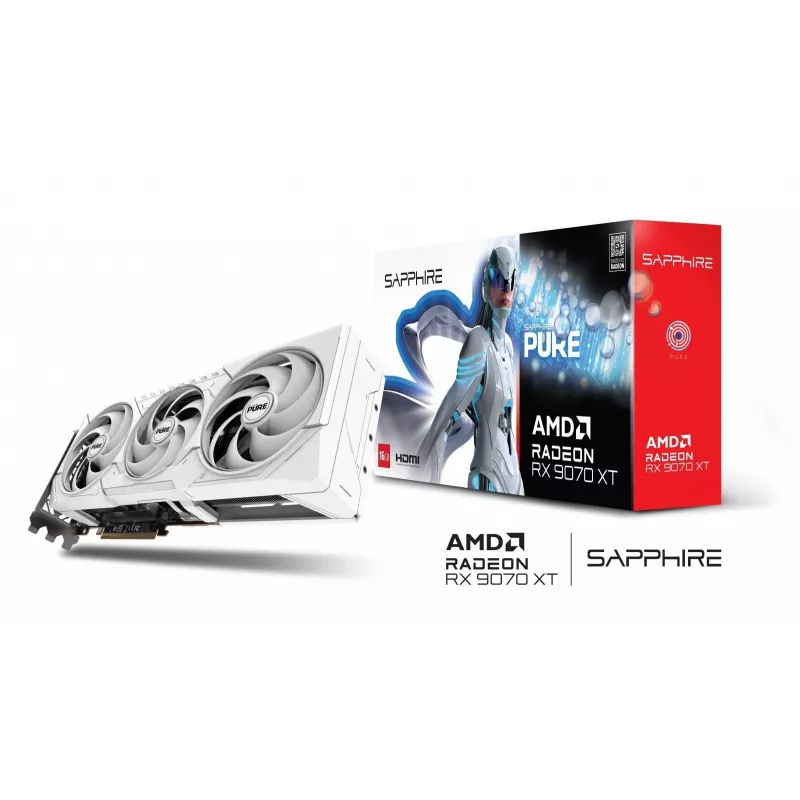

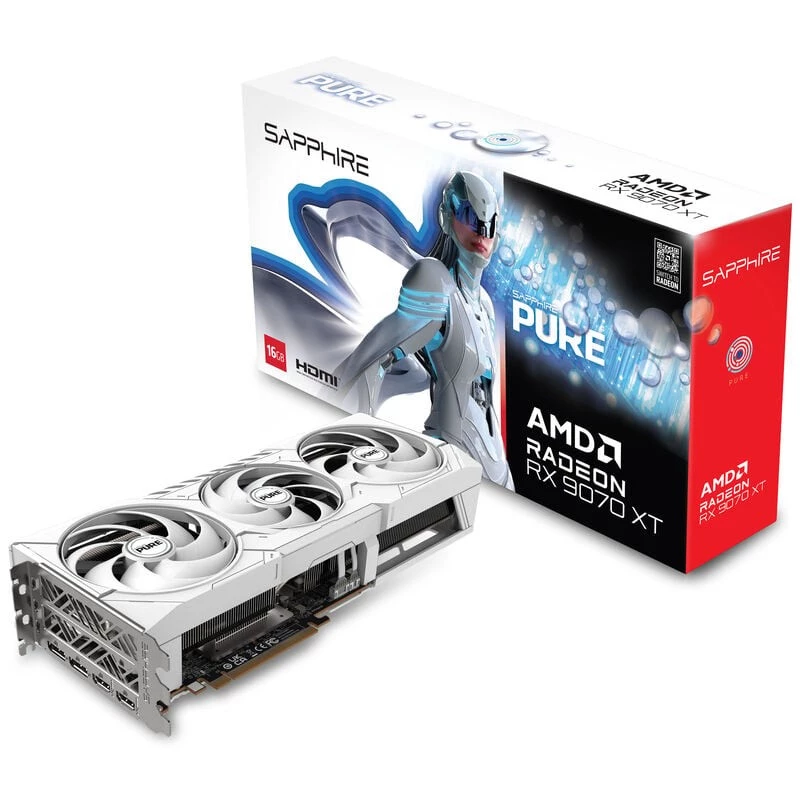

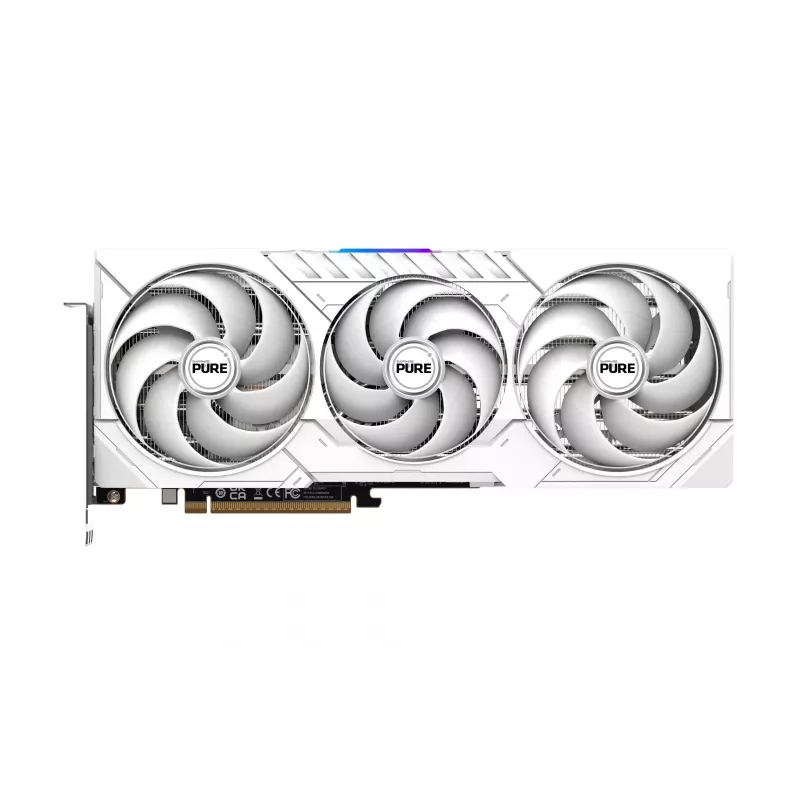

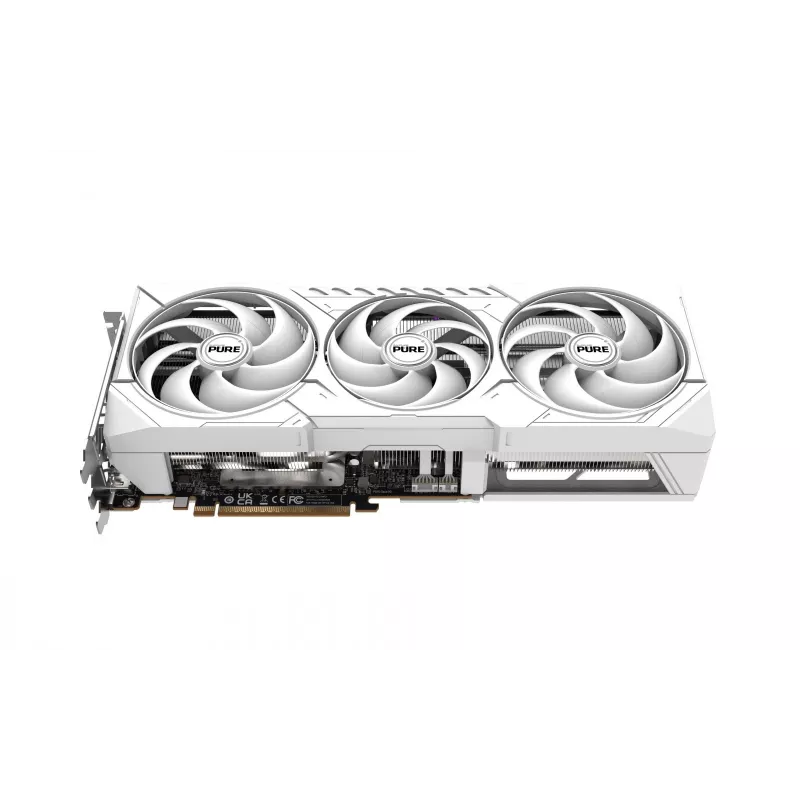

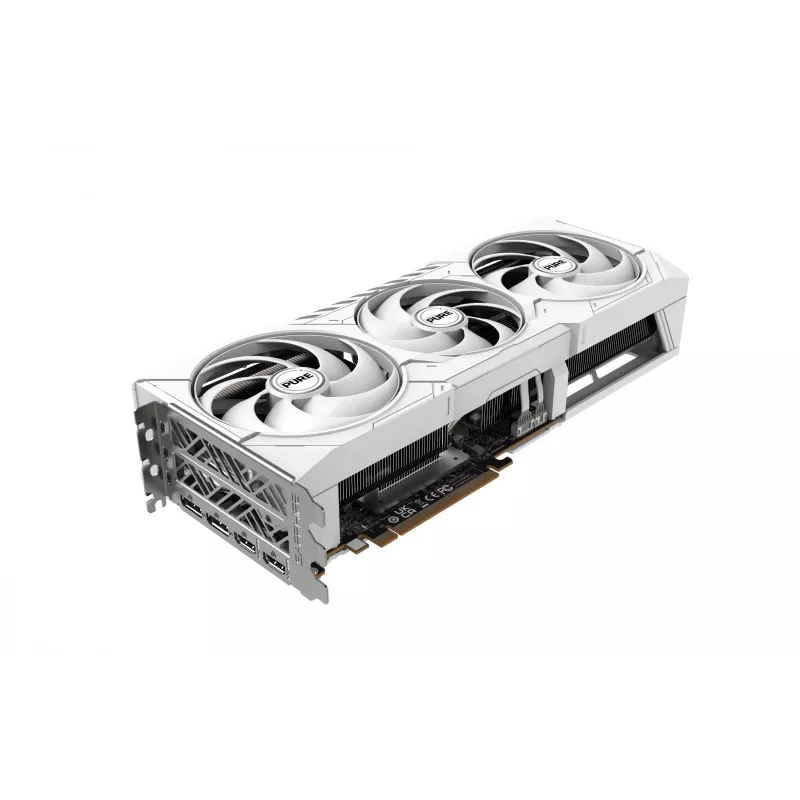

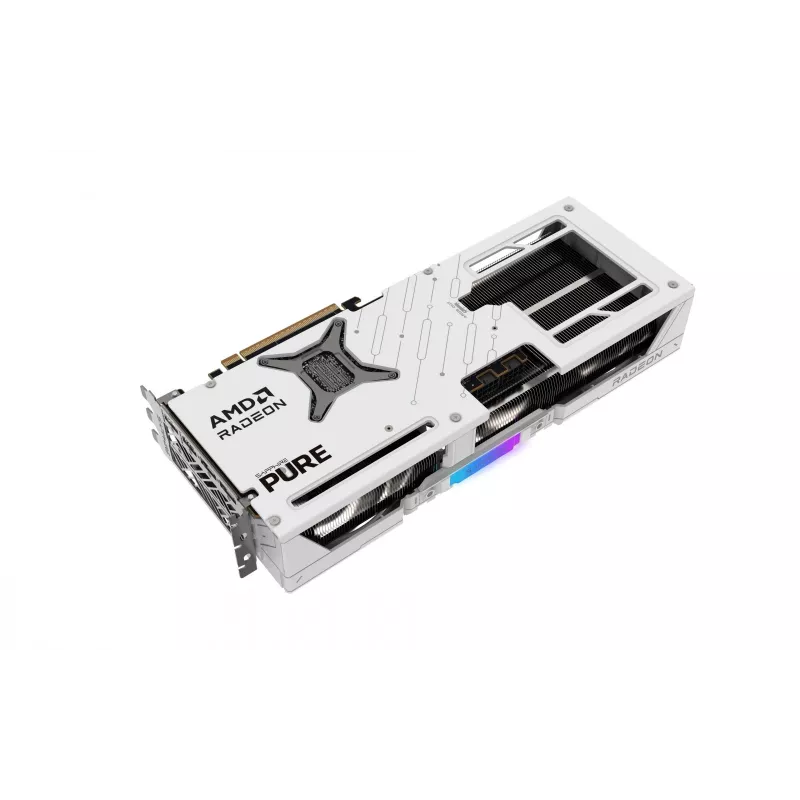

Graphics Card Sapphire Radeon RX 9070 XT — 16 GB GDDR6, PCIe 5.0, 256-bit, 320 mm, 3-slot, White

Honeywell PTM7950 TIM is a thermal interface material developed for high-performance electronics, especially graphics processing units (GPUs). It provides high thermal conductivity to improve heat transfer between the GPU die and cooling solution, supporting stable operation and longer component life. The product is part of a cooling system that includes optimized heatsink geometry, fan technology, a metal backplate and other integrated thermal features.

Advantages

The PTM7950 TIM improves thermal contact and reduces operating temperatures for graphics cards. The Free Flow heatsink design directs airflow to minimize turbulence and increase heat dissipation. AeroCurve fan blades reduce air friction and expand the effective fan RPM range while keeping noise low. The all-aluminum backplate adds structural rigidity and contributes to passive cooling. Integrated cooling modules ensure direct contact with GPU, memory and VRMs for uniform thermal regulation. Composite heatpipes distribute heat evenly across the cooling module, and dual-ball-bearing fans offer longer service life and lower noise compared with sleeve-bearing designs. Additional features such as High TG copper PCB, fuse protection, external ARGB sync and digital power design support stable electrical performance and system integration.

Key specifications

• Material: Honeywell PTM7950 thermal interface material
• Cooling design: Free Flow heatsink with optimized fin module
• Fan: AeroCurve blade design with dual ball bearings
• Backplate: All-aluminum tough metal backplate
• Integrated cooling: Direct contact with GPU, memory modules and VRMs
• Heatpipes: Optimized composite heatpipes
• PCB: High TG, 12-layer, 2oz copper PCB
• LED: ARGB SAPPHIRE logo with external 3-pin ARGB sync
• Protection: Fuse protection on external PCI-E power connector
• Power design: Digital power control

How to use

Apply the Honeywell PTM7950 TIM between the GPU die and the contacting surface of the cooler according to the manufacturer's recommended quantity and pattern to ensure uniform coverage. Install the heatsink and fans ensuring the Free Flow fins align with the axial airflow path. Secure the graphics card to the chassis and, if needed, use the L-shape graphics card supporter to prevent sagging and assist removal. Connect the ARGB header for lighting control and configure synchronization via motherboard software or SAPPHIRE TriXX for Glow! effects. Verify fuse placement on the PCI-E power connector and follow standard electrostatic discharge (ESD) precautions during installation.

Recommendations

Use PTM7950 TIM only on compatible GPU surfaces and replace the thermal interface when re-seating the cooler or during periodic maintenance. Ensure correct mounting pressure and follow the graphics card manufacturer's guidance for thermal compound amount. For ARGB control, use compatible 3-pin 5V headers and software to avoid electrical conflicts.
