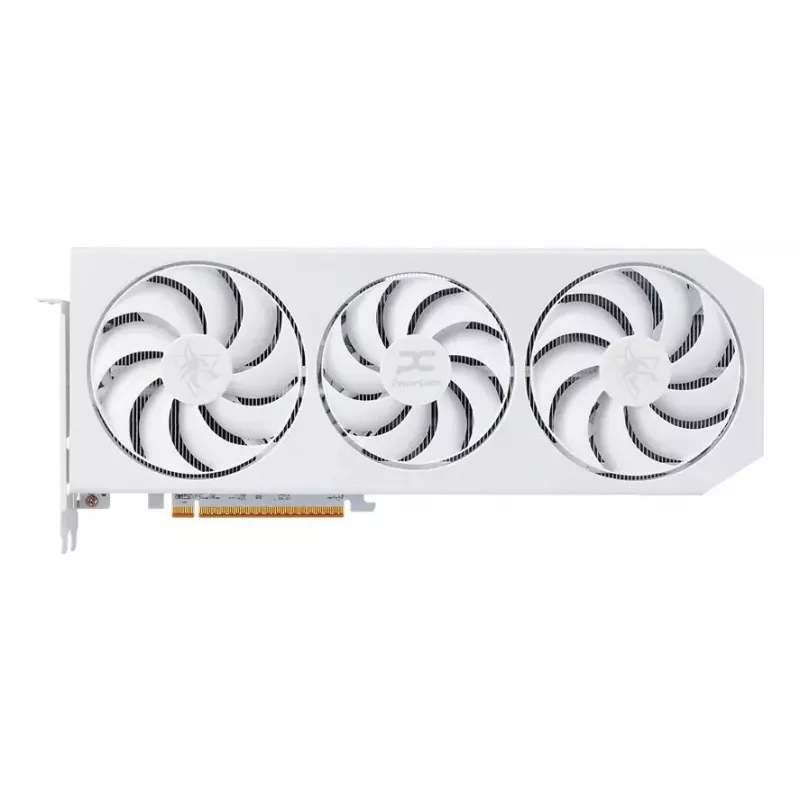

Graphics card power color Radeon RX 9070 XT — 16 GB GDDR6, 256-bit, PCIe 5.0, 3x DP 2.1a + HDMI 2.1b, 340 mm, white, OC

The PowerColor Hellhound Radeon RX 9070 XT 16 GB GDDR6 is a discrete graphics card designed for high-definition gaming and content creation. It combines a Radeon RX 9070 XT GPU with 16 GB of GDDR6 memory on a 256-bit bus and supports PCI Express x16 5.0, delivering the bandwidth and capacity required for demanding titles and high-resolution workloads. The card features a triple-fan active cooling system, reinforced metal backplate, dual BIOS (OC and Silent), and Glacier White illumination controlled by a physical switch.

Advantages

The card uses a 10+1 phase power design with an additional 3+2 phase memory supply and high-efficiency DrMOS modules to reduce power loss and improve stability under load. A 12-layer high-thermal-conductivity PCB with a 2oz power layer and a nickel-plated copper base with direct contact optimize heat transfer. Six 6φ nickel-plated copper heatpipes, a vertical heatsink with spaced fins, and ring-blade fans with dual ball bearings provide efficient, durable cooling. Intelligent fan control engages fans at 60°C and stops them below 50°C. Dual BIOS lets you switch between performance and silent modes.

Suitable for

• High-resolution gaming up to 7680 x 4320
• VR and ray-tracing enabled titles
• Content creation and GPU-accelerated workloads
• Systems with PCIe 5.0 motherboards

Key specifications

• Graphics processor: Radeon RX 9070 XT
• Memory: 16 GB GDDR6
• Memory bus: 256 bit
• Interface: PCI Express x16 5.0
• Cooling: Triple-fan active cooling, six 6φ heatpipes, vertical heatsink
• Special features: Dual BIOS (OC / Silent), Glacier White illumination, Honeywell PTM7950 phase-change

How to use

Install the graphics card into a compatible PCI Express x16 slot on a supported motherboard, secure it to the case using the bracket screws, and connect the required power cables from your power supply following the manufacturer's instructions. Use the physical lighting switch to toggle the Glacier White glow. Configure BIOS mode (OC or Silent) via the dual-BIOS switch as needed. Install the latest AMD Radeon drivers and optional PowerColor utilities to enable features such as AMD HYPR-RX and FidelityFX Super Resolution 4 for improved performance and image quality.

Recommendations

Ensure adequate case airflow and a power supply with sufficient wattage and the correct power connectors. Monitor GPU temperatures during initial use and keep drivers updated. When prioritizing low noise, use the Silent BIOS mode; for maximum performance, select OC mode and enable software optimizations such as AMD HYPR-RX and AI upscaling where supported.
