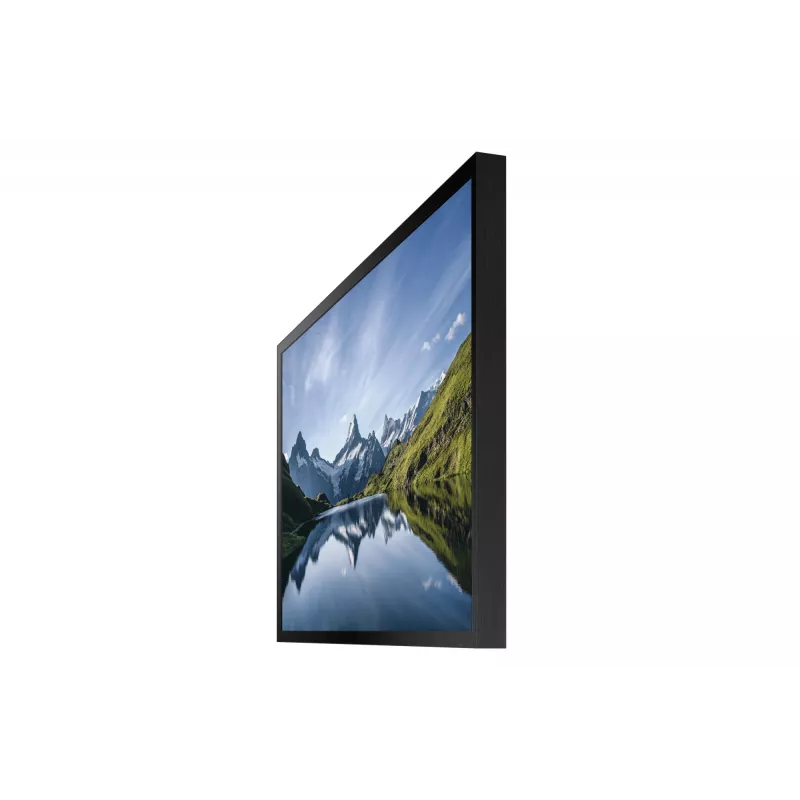

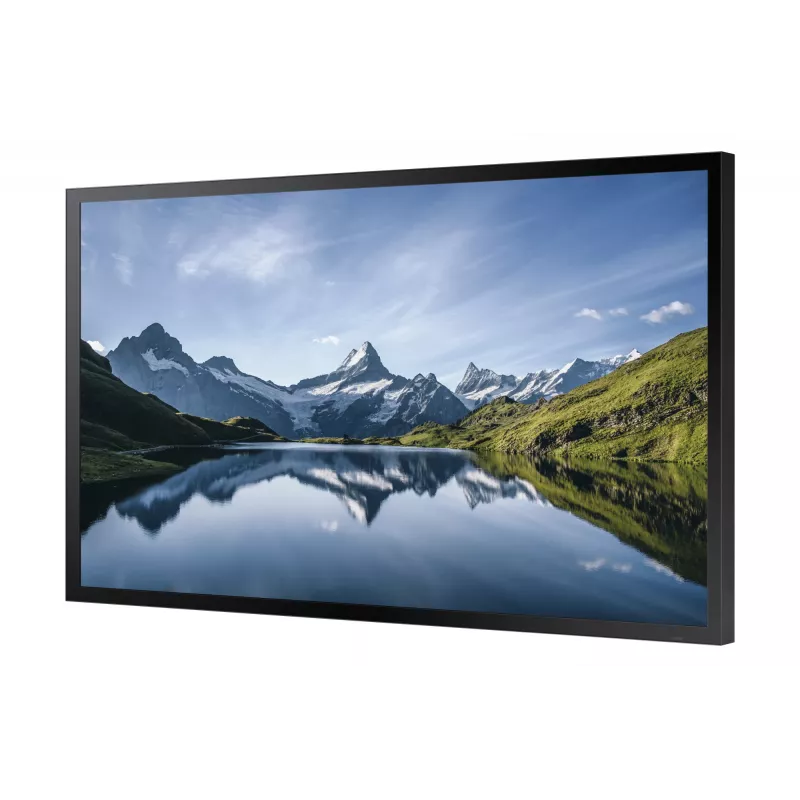

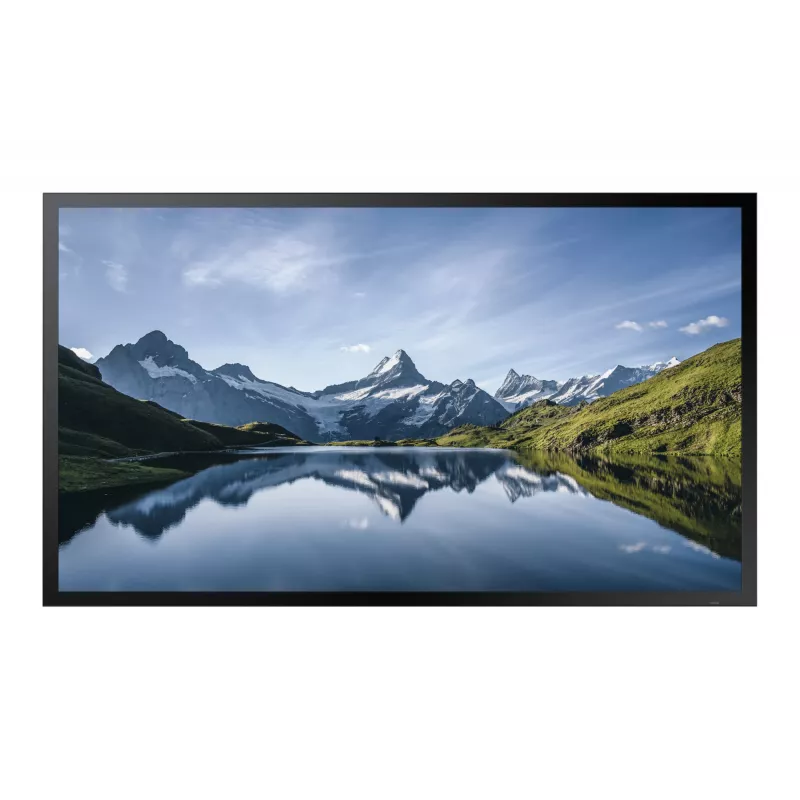

Samsung OH46B-S Digital signage flat panel 116.8 cm (46 inch) LCD 3500 cd/m² Full HD Black Built-in processor Tizen 6.5 24/7

The Samsung OH46B-S is a 46" digital signage flat panel providing Full HD 1920 x 1080 resolution on a VA LCD panel. With a high brightness of 3500 cd/m² and a flat screen shape, the display is designed for continuous 24/7 operation powered by the integrated Tizen 6.5 operating system. The unit’s sleek black housing and VESA-compatible mount make it suitable for wall, kiosk, or integrated installation in retail, corporate or public environments where clear visual messaging is required.

Advantages

The OH46B-S combines high brightness and a VA panel to deliver strong contrast and wide viewing angles while keeping text and images sharp at Full HD resolution. The built-in Tizen 6.5 platform supports reliable content scheduling and playback without the need for external media players, and the panel’s design supports long-term continuous operation. VESA mounting compatibility simplifies installation, and the straightforward black finish integrates with a variety of interiors.

Suitable for

• Retail window or in-store digital promotions
• Corporate lobbies and information displays
• Public spaces such as transit hubs and waiting areas
• Menu boards and point-of-sale signage

Key specifications

• Display diagonal: 46 inches
• Resolution: 1920 x 1080 (Full HD)
• Panel type: VA LCD
• Brightness: 3500 cd/m²
• Pixel pitch: 0.53 x 0.53 mm
• Response time: 6 ms
• Typical contrast ratio: 6000:1
• Screen shape: Flat
• VESA mounting: Yes
• Built-in speakers: No
• Product colour: Black

How to use

Mount the display using a VESA-compatible bracket or install it in a compatible enclosure. Connect power and network as required, then use the Tizen 6.5 interface to upload, schedule and manage content. Configure brightness and image settings through the on-screen menu to suit ambient lighting conditions. For continuous operation, ensure stable power supply and network connectivity and follow Samsung’s system prompts for firmware and app updates.

Recommendations

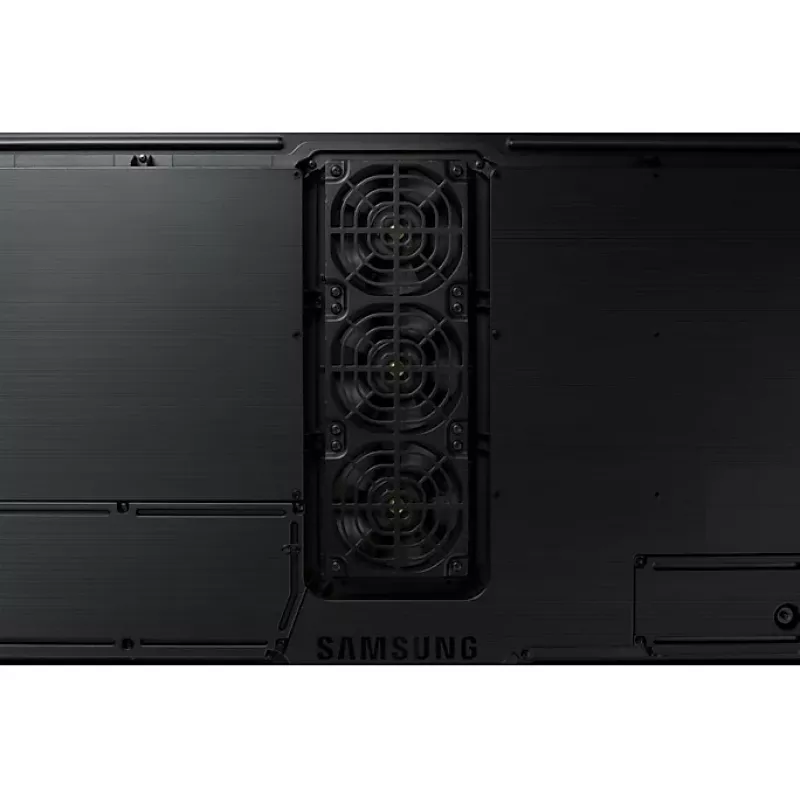

For best readability in bright environments, set the panel to higher brightness and enable any available ambient light compensation. Place the display at eye level where possible and use high-contrast, Full HD content sized to 1920 x 1080. Regularly check ventilation around the unit to maintain reliable 24/7 performance.
