Safety headgear Uvex 9774236 Yellow

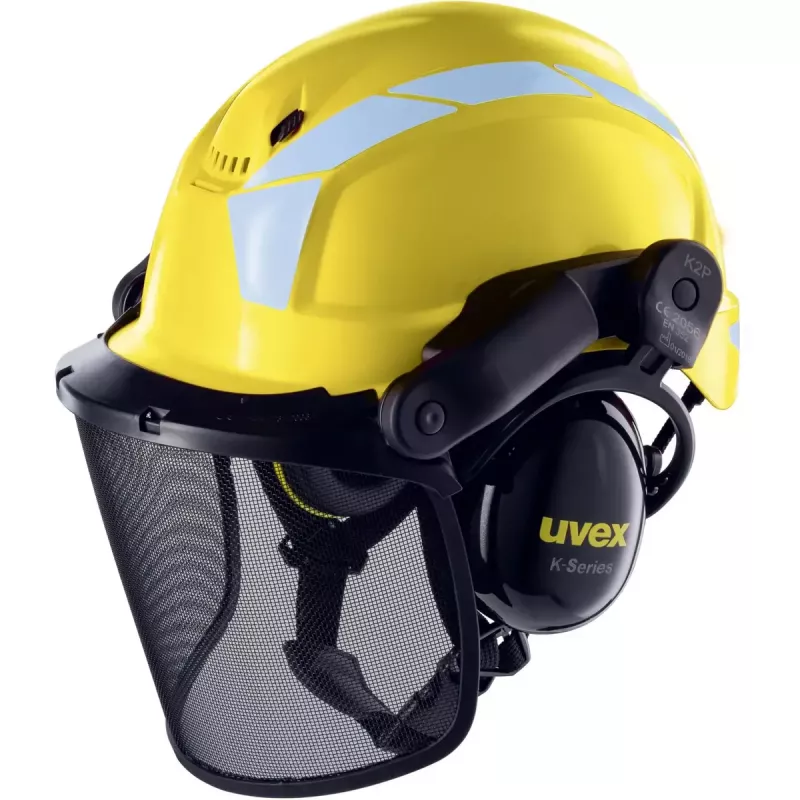

The uvex pheos forestry worker set provides tailored protection for forestry tasks. Based on the uvex pheos industrial safety helmet, the set combines a balanced visor resting position with integrated mesh visor and earmuffs to protect against typical forestry hazards while reducing neck strain. The kit includes the uvex pheos ABS B-S-WR helmet, uvex pheos forestry worker mesh visor, uvex pheos K2P mechanical earmuffs and a whistle; it is available in yellow (9774236), orange (9774237) and red (9774238) and meets EN 397 (-30°C), EN 352-3 and EN 1731 requirements.

Advantages

The helmet system offers full-face protection from foreign bodies via a fully integrated metal mesh visor that does not obstruct vision, combined with earmuffs (SNR 30 dB) for hearing protection. The visor’s balanced standby position sits near the body’s centre of gravity to relieve neck muscles. Additional features include three adjustable air vents for ventilation and a suspension harness with a wheel ratchet for variable width adjustment. The helmet also has slots to accept uvex visors, earmuffs and helmet torches.

Suitable for

• Forestry and timber felling work
• Chainsaw operations and tree maintenance
• Work in cold outdoor environments (down to -30°C)
• Situations requiring combined face and hearing protection

Key specifications

• Model: uvex pheos forestry worker set

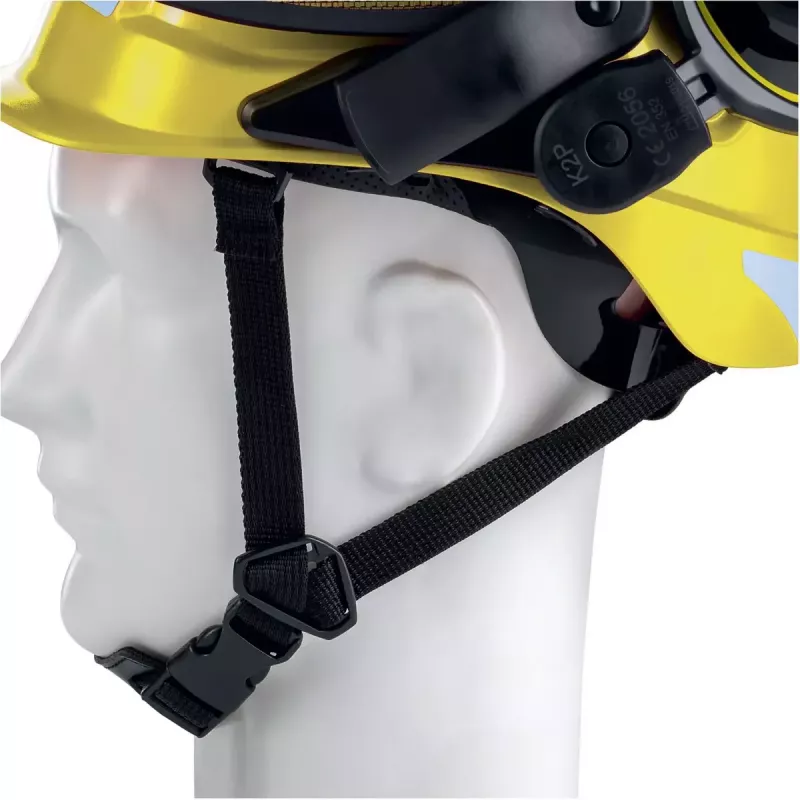

• Helmet: uvex pheos ABS B-S-WR with wheel ratchet suspension
• Visor: fully integrated metal mesh visor (protects from foreign bodies)

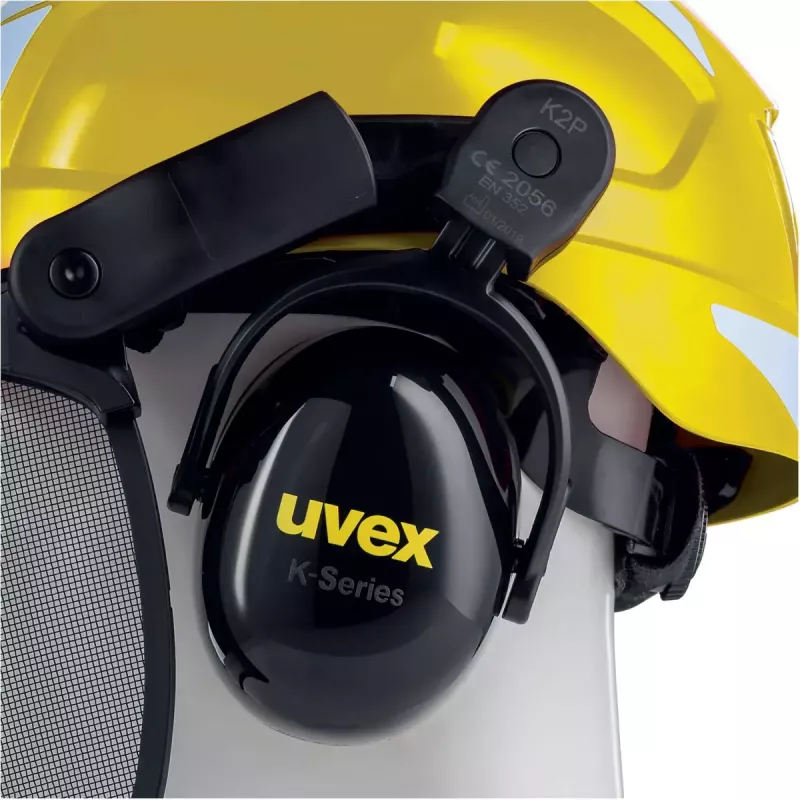

• Earmuffs: uvex pheos K2P, SNR 30 dB
• Standards: EN 397 (additional very low temperature -30°C), EN 352-3, EN 1731

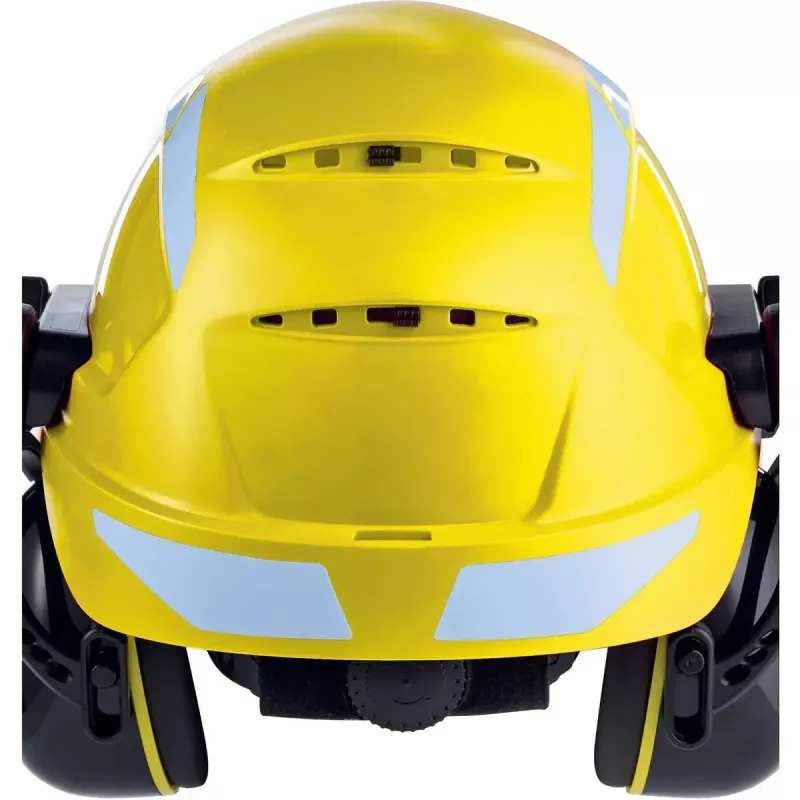

• Vents: three variable air vents
• Colours / Part numbers: yellow 9774236, orange 9774237, red 9774238

How to use

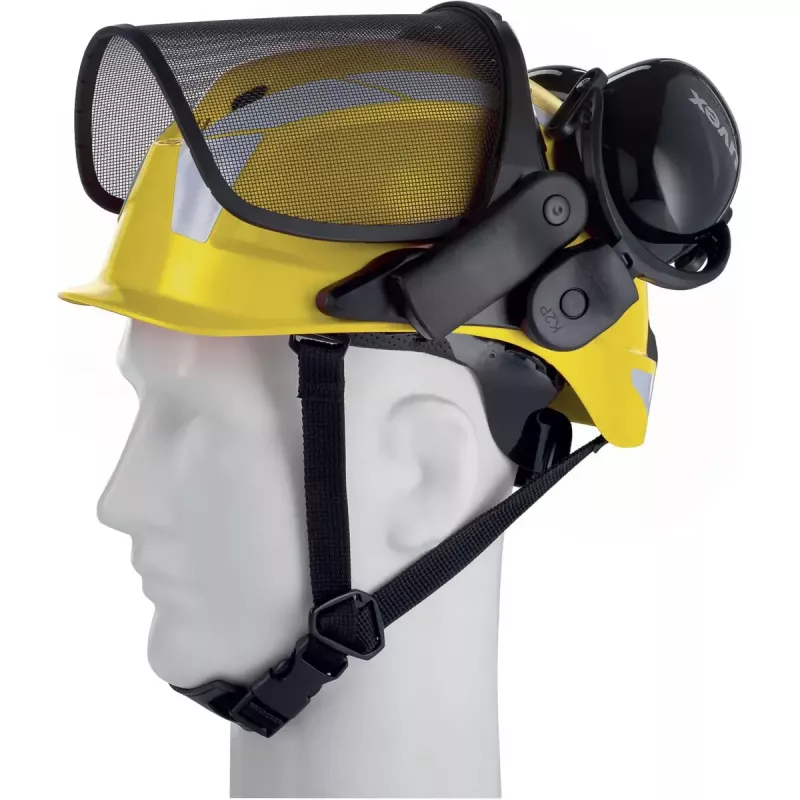

Adjust the suspension harness with the wheel ratchet to achieve a secure, comfortable fit. Position the metal mesh visor in its balanced standby position above the head when not in use; lower it to cover the face fully when cutting or working under risk of flying debris. Fit and adjust the earmuffs to seal comfortably over the ears for effective hearing protection. Use the helmet slots to attach additional uvex accessories such as torches or different visors if required.

Recommendations

Inspect the helmet, mesh visor and earmuffs for damage before each use and replace any damaged components. Ensure compatibility of replacement accessories with the uvex pheos ABS B-S-WR helmet. Store the set in a dry place out of direct sunlight and follow the relevant standards and workplace safety procedures during forestry operations.
