Ruler Metal Plastic Black Silver InLine 43002

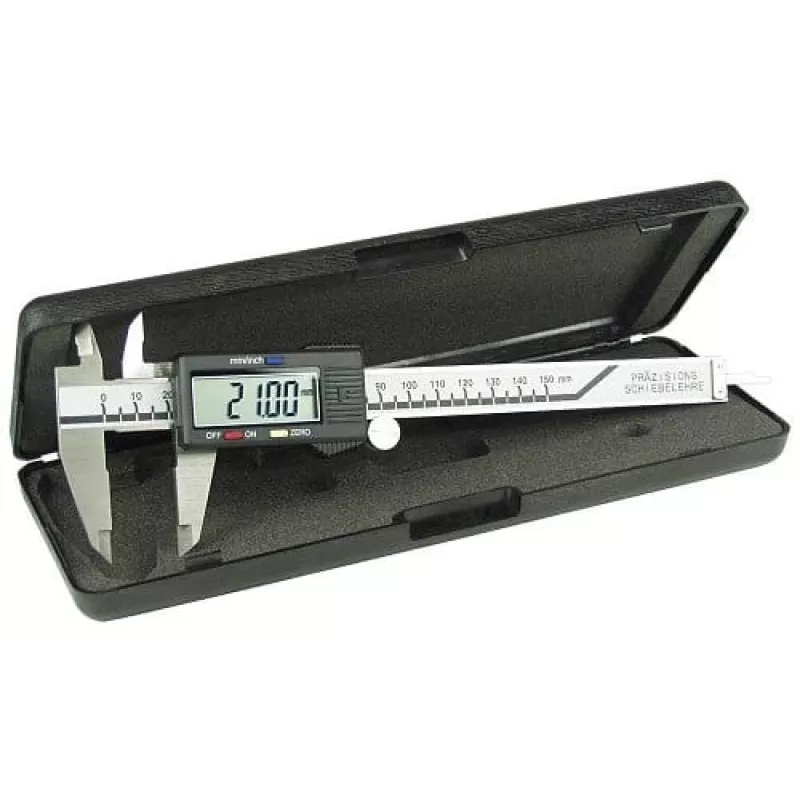

Precision engineer slide gauge designed for accurate measurements of external and internal diameters and depths. The instrument features a 150 mm measuring range and a large five-digit LCD that displays values clearly in either millimetres or inches. Supplied in a protective plastic box with a 1.5 V SR44 battery installed.

Advantages

The slide gauge offers 0.01 mm resolution and a tolerance of ±0.03 mm within 0–40 °C, enabling fine measurements for workshop and laboratory tasks. A 10 mm-high, five-digit LCD ensures easy reading of results while an adjustable zero-point function allows differential measurements. An automatic shut-off after five minutes conserves battery life.

Suitable for

• Measuring external diameters of shafts and parts
• Measuring internal diameters of holes and bores
• Depth measurements for grooves, slots and steps
• Precision layout and verification work in workshops and hobby projects

Key specifications

• Measuring range: 150 mm
• Resolution: 0.01 mm
• Tolerance: ±0.03 mm (0–40 °C)
• Display: 5-digit LCD, digits 10 mm high
• Units: mm / inch
• Zero-point adjustment for differential measurement
• Auto power-off: 5 minutes
• Battery: 1.5 V (SR44) included
• Packaging: high-quality plastic box

How to use

Place the measuring jaws on the object for external measurements or insert the internal jaws into the bore for internal measurements. For depth measurement, use the measuring pole and rest the instrument on the reference surface while extending the pole into the feature. Read the value from the large LCD and switch units between mm and inch if required. Use the zero-point adjustment to set relative measurements before taking differences.

Recommendations

Store the slide gauge in its plastic box when not in use to protect the jaws and display. Avoid exposing the instrument to temperatures outside 0–40 °C and to strong impacts. Replace the SR44 battery as needed and switch off or rely on the 5-minute auto-off to preserve battery life.
