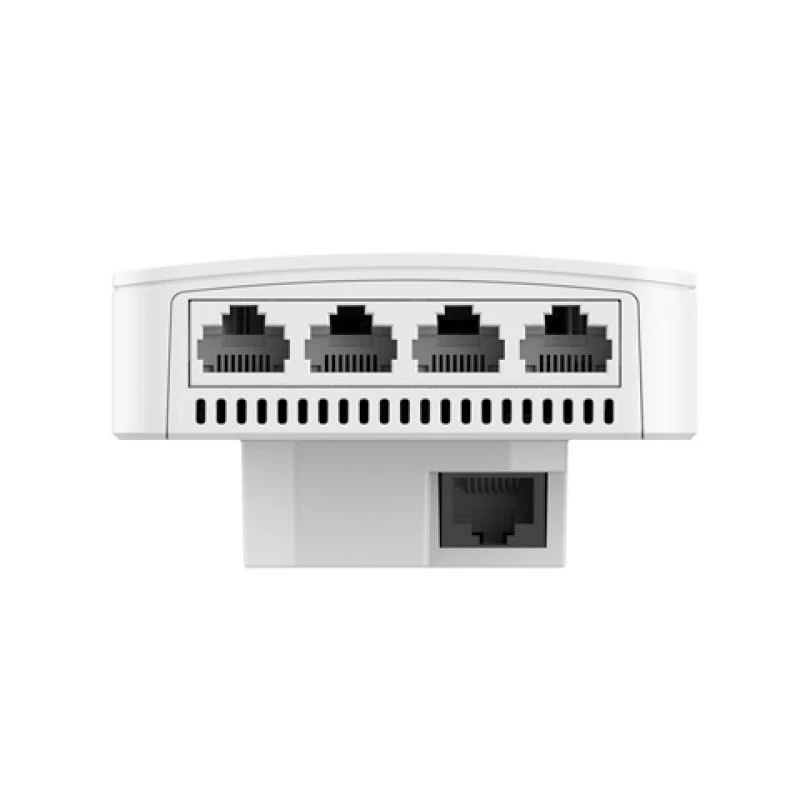

Ruijie Reyee RG-RAP1200(P) Dual-Band Wi-Fi 5 Access Point, 5x Gigabit Ethernet, PoE In/Out, AC1200, Indoor, Wall/Ceiling Mount, Cloud Managed

The Ruijie Reyee RG-RAP1200(P) is a high-performance dual-band Wi-Fi 5 (802.11ac Wave 2) access point designed for small to medium businesses, hotels, and retail environments. With combined wireless speeds of up to AC1200 (300 Mbps on 2.4 GHz and 867 Mbps on 5 GHz), it delivers reliable and fast connectivity for up to 100 concurrent clients. The access point features 5 Gigabit Ethernet ports, including 1 PoE input (802.3af/at) and 1 PoE output (802.3af), allowing flexible deployment and powering of additional devices such as IP cameras or VoIP phones. Its internal omnidirectional antennas with 2x2 MIMO technology ensure broad coverage, while support for seamless roaming (802.11k/v/r) and Reyee Mesh enables smooth handoffs and easy network expansion. The RG-RAP1200(P) can be mounted on walls or ceilings and is managed via the Ruijie Cloud app or web interface, making it ideal for centralized network management.

Advantages

• High-speed dual-band Wi-Fi 5 with AC1200 performance
• 5 Gigabit Ethernet ports with PoE input and output for flexible powering
• Seamless roaming and Reyee Mesh support for extended coverage
• Cloud-managed via Ruijie Cloud app or web interface
• Supports up to 8 SSIDs (4 per radio) with VLAN and advanced security

Suitable for

• Small and medium businesses requiring reliable wireless connectivity
• Hotels, cafes, and retail stores needing guest Wi-Fi with VLAN segmentation
• Office environments with multiple access points requiring seamless roaming
• Deployments where PoE passthrough is needed to power downstream devices

Key specifications

• Wi-Fi Standard: Wi-Fi 5 (802.11ac Wave 2)
• Wireless Speed: 2.4 GHz: 300 Mbps, 5 GHz: 867 Mbps, Combined: AC1200
• Frequency Bands: Dual-Band (2.4 GHz & 5 GHz)
• Ethernet Ports: 5x Gigabit Ethernet (10/100/1000 Mbps)
• PoE Input: 1x 802.3af/at PoE
• PoE Output: 1x 802.3af PoE
• Antenna Type: Internal Omnidirectional
• MIMO: 2x2 MIMO (2.4 GHz & 5 GHz)
• Deployment: Indoor
• Mounting: Wall-mountable, Ceiling-mountable
• Management: Ruijie Cloud App & Web Interface
• Advanced Features: Seamless Roaming (802.11k/v/r), Reyee Mesh, Repeater Mode
• Recommended Clients: 100
• Security: WPA-PSK/WPA2-PSK, WPA/WPA2-Enterprise
• VLAN Support: Yes
• SSID Support: Up to 8 (4 per radio)
• Power Consumption: <15W
• Operating Temperature: 0°C to 40°C

Recommendations

For optimal performance, pair the RG-RAP1200(P) with a PoE switch such as the Ruijie Reyee RG-NBS3100-24GT4SFP-P. Use the Ruijie Cloud app for easy setup and monitoring. Ensure firmware is updated to the latest version for best security and features.
