Round Plate with Ball RAM Mounts RAM-202U

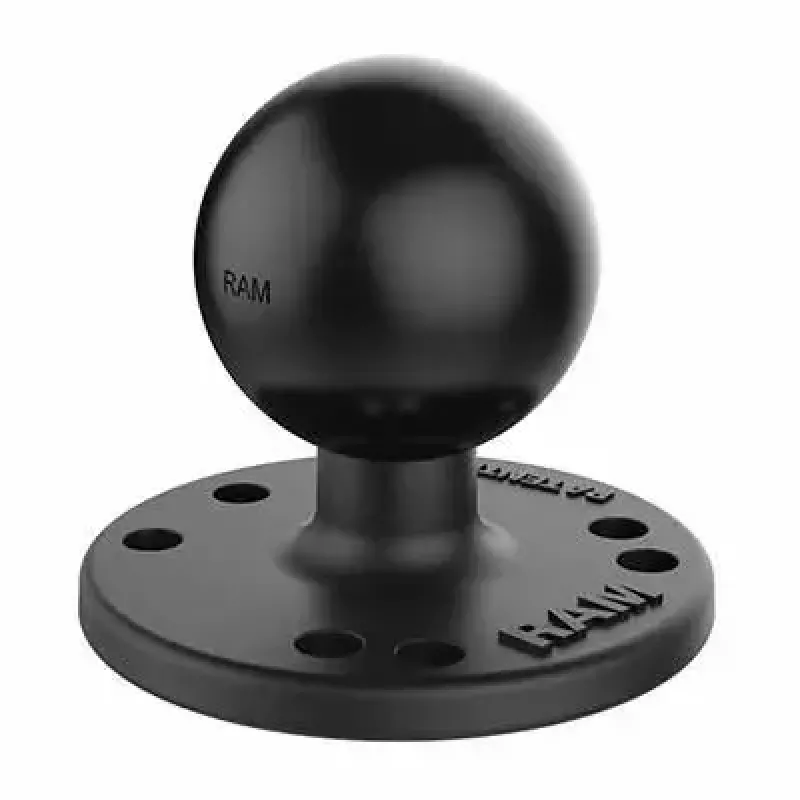

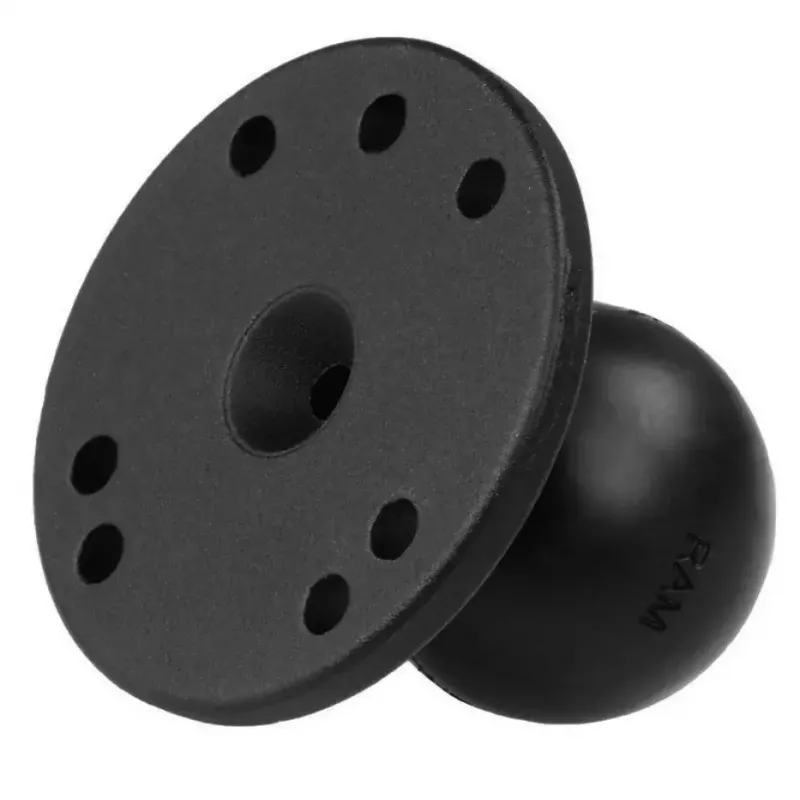

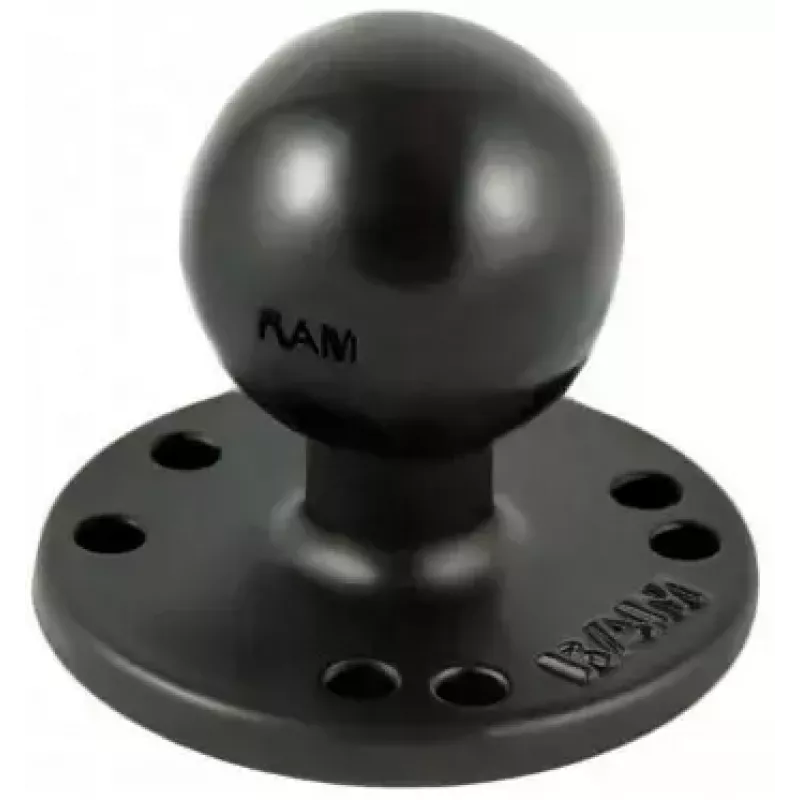

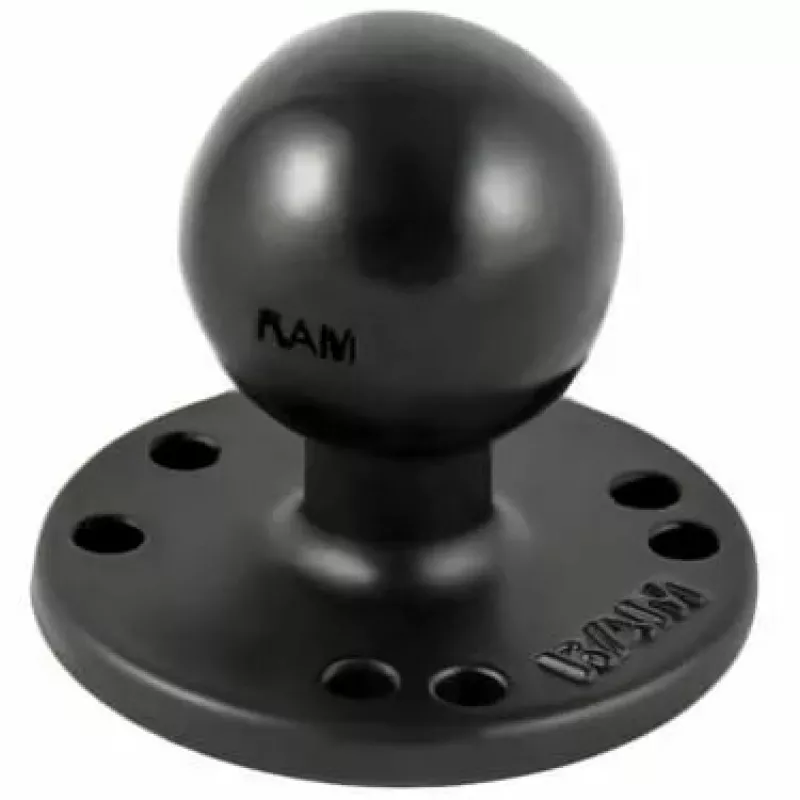

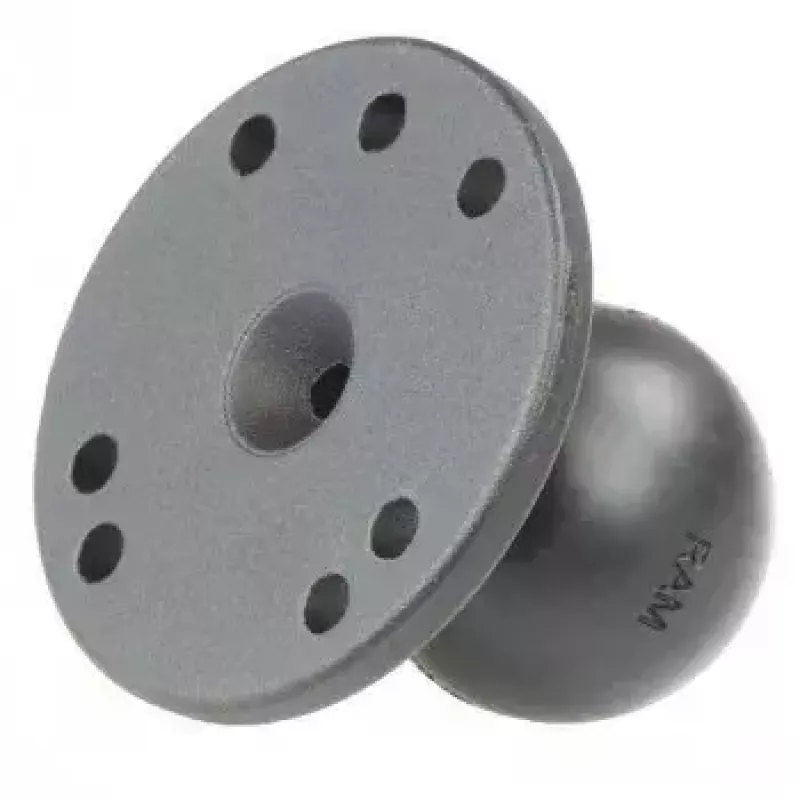

The RAM-202U Round Plate with Ball from RAM Mounts pairs a 1.5" diameter C-size rubber ball with a 2.5" diameter round plate that uses the universal AMPS hole pattern. Finished in black and weighing 99.8 g, this compact mounting component is designed to provide a stable pivot point for various RAM mounting assemblies and accessories.

Advantages

The combination of a C-size 1.5" rubber ball and a sturdy 2.5" plate offers compatibility with a wide range of RAM double-socket arms and accessories. The universal AMPS hole pattern on the plate enables straightforward attachment to AMPS-compatible devices and brackets. Its lightweight, corrosion-resistant construction makes it suitable for both mobile and fixed installations where a reliable pivot and secure connection are required.

Suitable for

• Mounting smartphone and tablet holders that accept AMPS-pattern plates
• Creating adjustable assemblies with RAM double-socket arms
• Use in vehicles, boats, workstations, or industrial equipment where a compact pivot is needed

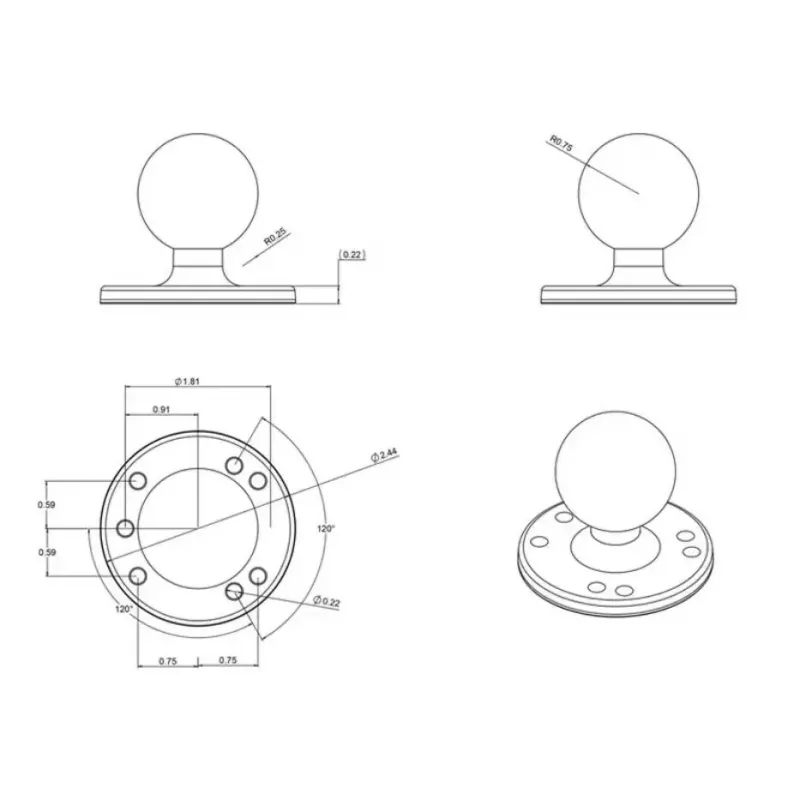

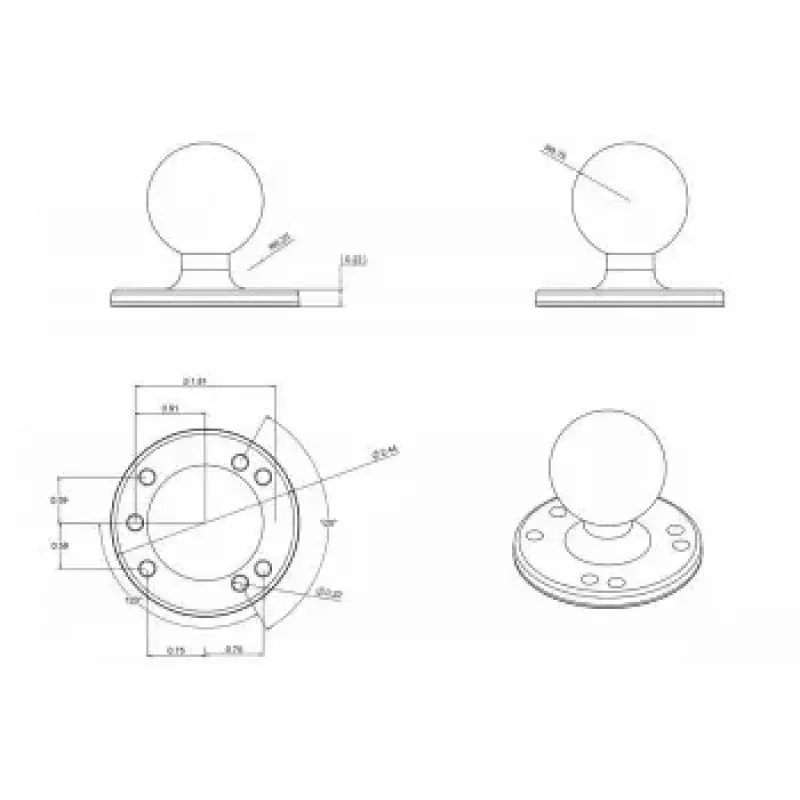

Key specifications

• Model: RAM-202U
• Ball size: C-size, 1.5" (diameter)
• Plate diameter: 2.5"
• Hole pattern: Universal AMPS
• Weight: 0.0998 kg (99.8 g)
• Colour: Black
• Brand: RAM Mounts

How to use

Attach the RAM-202U plate to an AMPS-compatible accessory or device using appropriate fasteners through the plate's hole pattern. Insert the 1.5" rubber ball into a compatible RAM socket arm and tighten the arm's clamping mechanism to secure the ball and set the desired angle. Verify that all fasteners and clamps are properly tightened before use.

Recommendations

For reliable performance, use the RAM-202U with matching RAM arms and sockets sized for a C 1.5" ball. Inspect mounting hardware periodically and re-tighten as needed, especially in high-vibration environments.
