Round AMPS Plate with Ball RAM Mounts RAM-D-254U

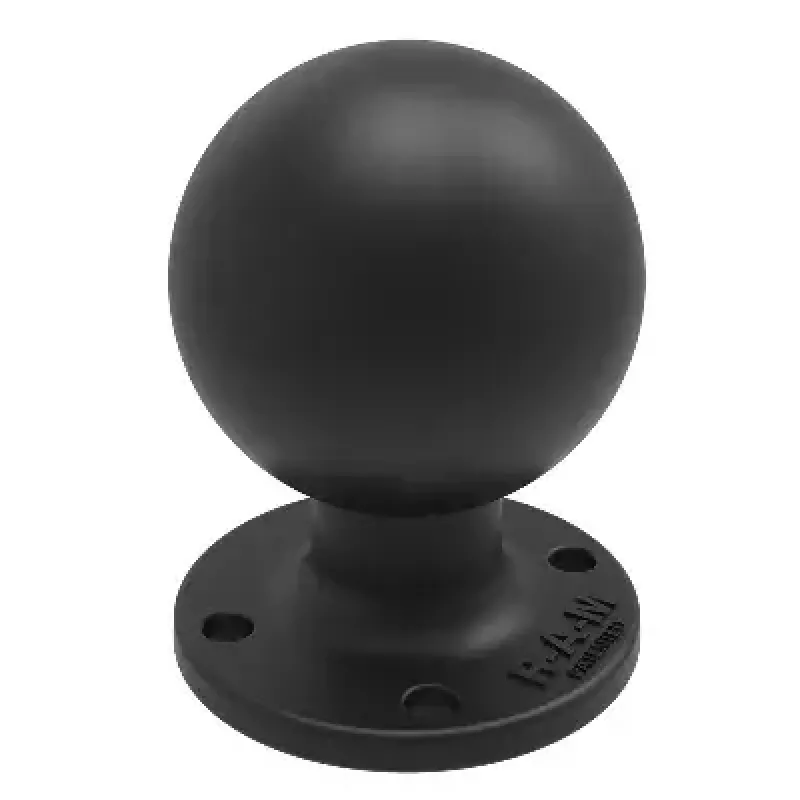

The RAM-D-254U is a Round AMPS Plate with a 2.25" diameter rubber ball integrated into a 2.5" diameter plate that features the industry-standard AMPS hole pattern. Designed by RAM Mounts, this component provides a compact ball-and-plate mounting interface that mates with other RAM D-size ball-and-socket parts and secures accessories to flat surfaces or to compatible RAM holders and cradles.

Advantages

The integrated rubber ball and AMPS-pattern plate combine shock-damping with broad accessory compatibility, while the D-size ball ensures interchangeability with other RAM D-size components. The plate’s 2.5" diameter and AMPS hole layout enable stable attachment to devices and mounting bases without additional adapters.

Suitable for

• Mounting electronic devices and accessories that use the AMPS hole pattern
• Attaching equipment to flat surfaces or to RAM D-size holders and cradles
• Situations requiring vibration absorption combined with modular mounting

Key specifications

• Manufacturer: RAM Mounts
• Model / MPN: RAM-D-254U
• Ball diameter: 2.25" (D-size rubber ball)
• Plate diameter: 2.5" with AMPS hole pattern
• Finish: black
• Weight: 272.15 g
• EAN: 793442202544

How to use

Fasten the AMPS plate to the device or accessory using the AMPS hole pattern and appropriate fasteners. Insert the D-size rubber ball into a compatible RAM D-size socket or holder and tighten the socket’s clamp to secure the connection. For mounting to flat surfaces, position the plate, mark and drill pilot holes if required, then secure with suitable screws.

Recommendations

Use hardware appropriate for the material of the mounting surface and verify that connected RAM D-size components are tightened per manufacturer guidelines to maintain secure, vibration-resistant mounting.
