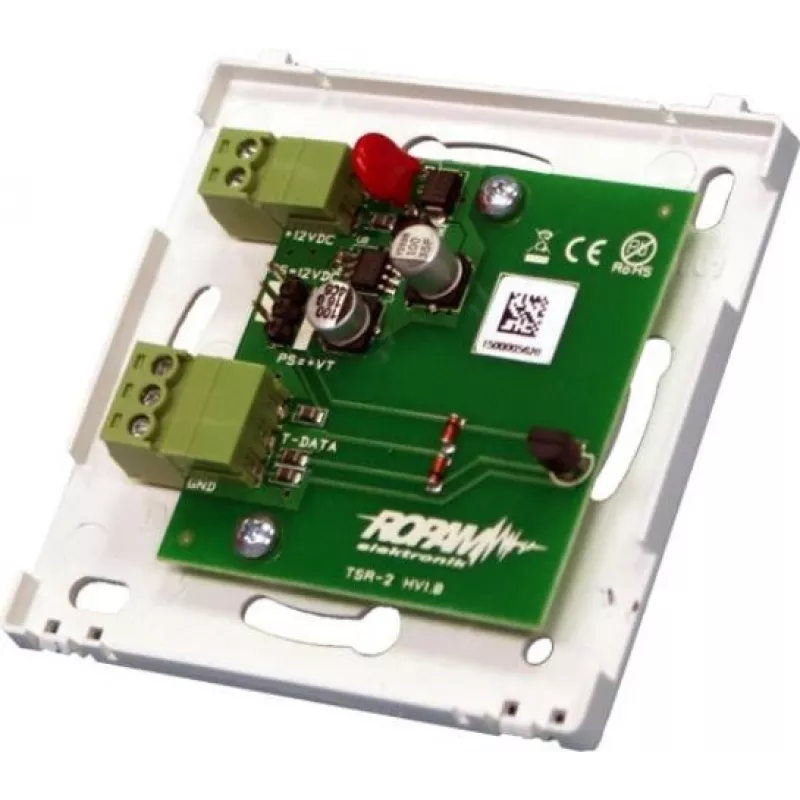

ROPAM Temperature Sensor TSR-2 NTC Thermistor 10kΩ 3m Cable

The ROPAM TSR-2 is a high-precision NTC thermistor temperature sensor designed for use with ROPAM alarm and automation control panels. It provides accurate temperature monitoring in both indoor and outdoor environments, with a measurement range of -30°C to +70°C and an accuracy of ±0.5°C at 25°C. The sensor features a 3-meter 2-wire cable with bare wire ends for easy terminal block connection, and an encapsulated plastic probe with IP67 rating for durability in harsh conditions.

Advantages

Reliable and accurate temperature sensing with NTC technology, passive operation (no external power required), robust IP67-rated probe for outdoor use, and easy integration with ROPAM control panels.

Suitable for

• ROPAM alarm and automation control panels
• Temperature monitoring in residential, commercial, and industrial settings
• Indoor and outdoor applications

Key specifications

• Sensor Type: NTC Thermistor
• Measurement Range: -30°C to +70°C
• Output Signal: Analog Resistance
• Resistance at 25°C: 10 kΩ
• B-Constant: 3435K
• Accuracy: ±0.5°C (at 25°C)
• Cable Length: 3 meters
• Cable Type: 2-wire
• Probe Material: Encapsulated Plastic
• Probe Diameter: 6 mm
• Probe Length: 25 mm
• IP Rating (Probe): IP67
• Compatibility: ROPAM Alarm/Automation Control Panels
• Connection Type: Bare Wires (for terminal block)
• Operating Environment: Indoor/Outdoor
• Power Supply: Passive (no external power required)

Recommendations

For optimal performance, use with compatible ROPAM control panels. Ensure proper installation to maintain IP67 protection.
