Room Thermostat Legrand Valena Life 752133 — Electric, 1 Channel

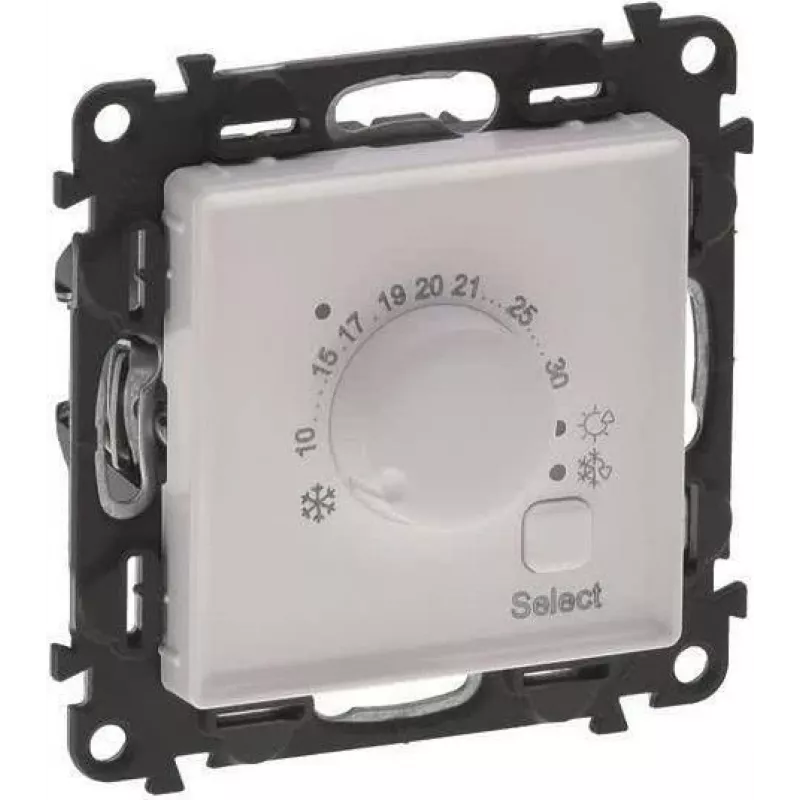

Legrand Valena Life 752133 is an electric room thermostat designed for flush mounting to provide centralized temperature control for a single heating zone. The device features a white central plate with dimensions 75 x 75 x 42 mm and is intended for use in residential or small commercial spaces where a simple, single-channel thermostat is required.

Advantages

The thermostat supports a nominal current of 16.0 A and a nominal voltage of 250.0 V, making it compatible with common electric heating circuits. It includes a single normally open (NO) switching contact and allows temperature setback. The unit is equipped for use with a pipe sensor and has a switching differential of 1.0 K and a rated control power of 1.0 VA. The device is IP20 rated and fits standard wall-mounted central plates.

Suitable for

Key specifications

How to use

Install the thermostat in a flush-mounted box and fit the central plate according to standard electrical installation rules. Connect the heating circuit to the single switching contact and attach the pipe sensor where required by the heating system. Use the thermostat to switch the heating on and off or to apply temperature setback functions as supported by the wiring and connected equipment.

Recommendations

Use the device with compatible wiring and a correctly installed pipe sensor. Ensure the nominal current and voltage match the heating circuit. Avoid exposure to moisture or direct water contact due to the IP20 rating. For installation and wiring, follow local electrical codes and, if necessary, consult a qualified electrician.
