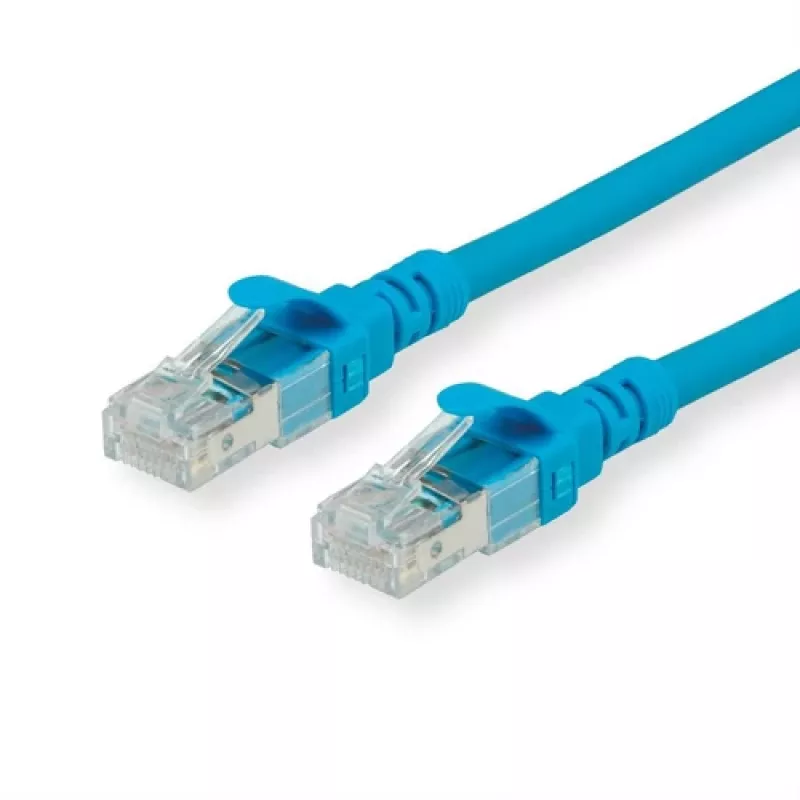

ROLINE Cat.6A UTP Patch Cable, Component Level, LSOH, Blue, 1.5 m

The ROLINE Cat.6A UTP Patch Cable is a high-performance, component-level patch cord designed for reliable 10 Gigabit Ethernet connections. With a length of 1.5 meters and a blue LSOH jacket, this cable is ideal for structured cabling in data centers, offices, and home networks where low smoke and halogen-free materials are required.

Advantages

This patch cable offers exceptional signal integrity and bandwidth up to 500 MHz, supporting 10GBASE-T networks. The LSOH jacket ensures safety in case of fire, emitting low smoke and no halogen. Gold-plated contacts provide corrosion resistance and reliable connectivity.

Suitable for

• Connecting network devices such as computers, switches, routers, and patch panels
• 10 Gigabit Ethernet (10GBASE-T) applications
• Installations requiring low smoke zero halogen materials for fire safety

Key specifications

• Cable Type: Patch Cable
• Category: Cat.6A (Class EA)
• Shielding: UTP (Unshielded Twisted Pair)
• Performance Level: Component Level
• Jacket Material: LSOH (Low Smoke Zero Halogen)
• Color: Blue
• Length: 1.5 m
• Connector Type: RJ45 Male to RJ45 Male
• Data Transfer Rate: Up to 10 Gigabit Ethernet (10GBASE-T)
• Bandwidth: 500 MHz
• Conductor Material: Copper
• Cable Construction: Stranded
• Number of Pairs: 4 Twisted Pairs
• Wiring Standard: TIA/EIA 568B
• Connector Plating: Gold-plated (50µm)
• Compliance Standards: ISO/IEC 11801, EN 50173, TIA/EIA-568-C.2
• Fire Safety Standard: IEC 60332-1-2
• Outer Diameter: Approx. 6.2 mm
• Operating Temperature: -20°C to 60°C

Recommendations

For optimal performance, use with Cat.6A compatible devices and ensure proper cable management to avoid kinks and bends.
