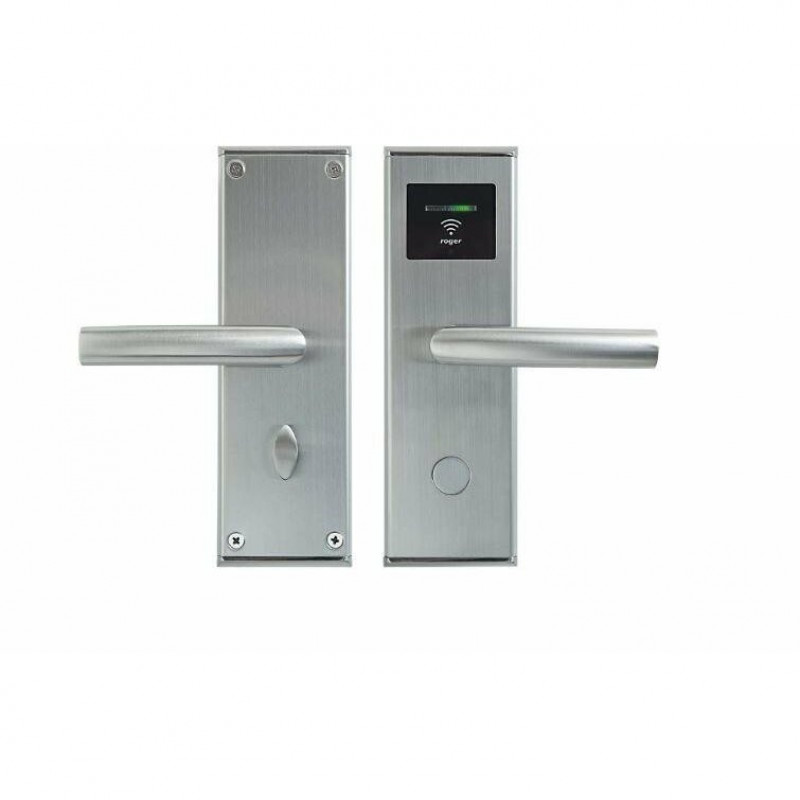

Roger RWL-1-SL-RO autonomous smart door lock

The Roger RWL-1-SL-RO is an autonomous mortise door lock with a servo mechanism, operated with MIFARE cards or an NFC phone.

Key features

• Mortise lock with servo mechanism; latch released automatically when the door closes
• Latch position sensor and inner knob position sensor; external door state sensor can be connected
• Wireless communication IEEE 802.15.4 / 2.4 GHz, range 50 m in open space
• Supports ISO/IEC 14443A cards (MIFARE Ultralight/Classic/Plus/DESFire) or an Android NFC phone
• Four LED indicators and signalling speaker; battery status reporting
• Configuration via wired or wireless connection with the Roger VDM application

Specifications

• Brand: Roger
• Model: RWL-1-SL-RO
• Power: 4 × AA batteries, typically 2 years at 10 reads per day
• Door thickness: 38 to 55 mm
• Backset: 55 mm; lock spacing (handle-cylinder): 72 mm
• Escutcheon without handle: 77 × 242 × 20 mm, fixed with 4 metric screws 5 × 60 mm
• Faceplate: rounded, 235 × 20 mm; single-sided cylinder with keys
