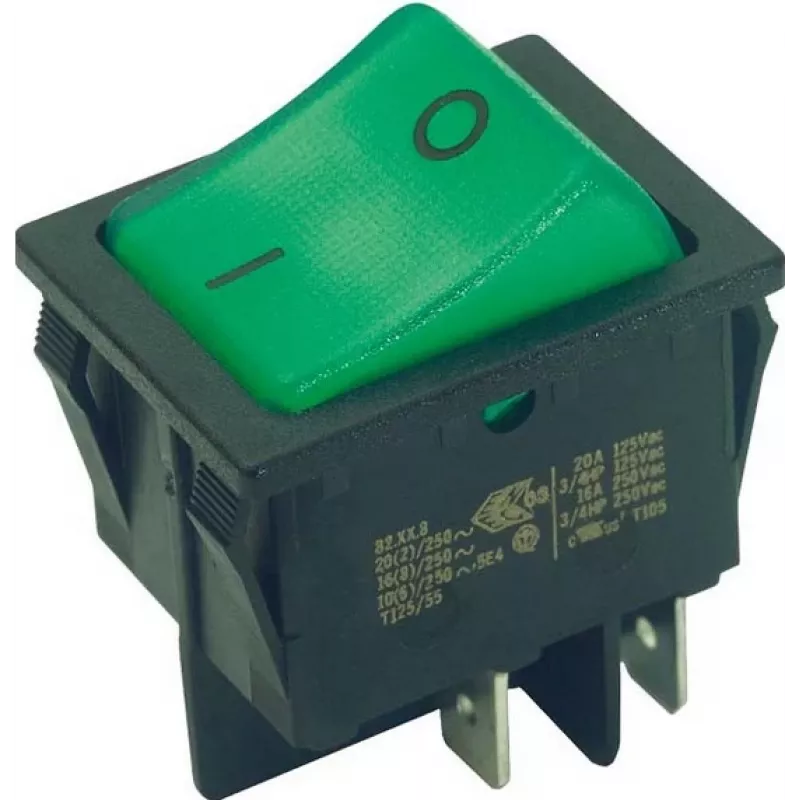

Rocker switch Bachmann 924.097 2P Black Green

The Bachmann 924.097 is a 2-pole rocker switch in black with a green actuator. It is available with or without illumination and features 6.3 x 0.8 mm spade (quick-connect) terminals. The switch is rated for continuous operation up to T 125 °C and is suitable for a variety of electrical installations where a compact, panel-mounted on/off control is required.

Advantages

This rocker switch offers a two-pole switching configuration for breaking both conductors, an option for illuminated or non-illuminated versions to indicate switch status, and standard 6.3 x 0.8 mm spade terminals for quick and reliable connection. Its construction is designed to withstand temperatures up to 125 °C, supporting use in applications with elevated ambient temperatures.

Suitable for

• Panel-mounted on/off control in machinery and equipment
• Control panels for appliances and HVAC systems
• Electrical DIY projects and professional installations
• Retrofit or replacement of compatible rocker switches

Key specifications

• Manufacturer: Bachmann
• Model / MPN: 924.097
• Poles: 2-pole
• Actuator color: Black housing with green actuator
• Terminal type and size: Spade / quick-connect 6.3 x 0.8 mm
• Illumination: Available with or without illumination
• Maximum temperature rating: T 125 °C
• EAN: 4016514016235

How to use

Mount the rocker switch into a compatible panel cutout and secure it according to the panel’s mounting method. Connect the supply and load conductors to the 6.3 x 0.8 mm spade terminals, ensuring proper insulation and tight connections. If using the illuminated version, observe correct polarity for the indicator lamp when connecting. Verify the switch operation under expected load conditions and confirm the temperature rating is appropriate for the installation environment.

Recommendations

Use appropriate fuse or circuit protection sized to the connected load, follow local electrical codes during installation, and avoid exposing the switch to conditions beyond its rated temperature. For illuminated versions, confirm supply voltage compatibility for the indicator before wiring.
