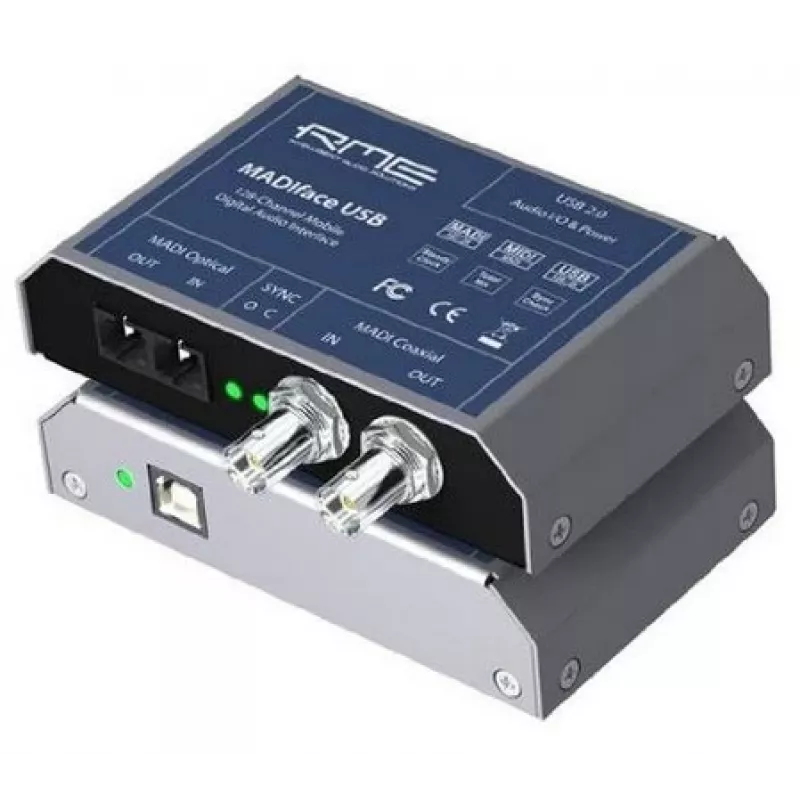

RME MADIface USB 2.0 64-Channel MADI Audio Interface

The RME MADIface USB stands apart from typical audio interfaces by delivering a full 64-channel MADI I/O over a single USB 2.0 connection, with ultra-low latency and rock-solid driver stability. It is a compact desktop unit that brings professional MADI connectivity to any laptop or desktop computer, making it ideal for live recording, broadcast, and studio environments where high channel counts and reliability are essential.

Highlights

• 64 MADI input and 64 MADI output channels (128 total) via optical SC and coaxial BNC connectors
• USB 2.0 bus-powered operation – no external power supply needed for most setups
• Supports sample rates up to 192 kHz at 24-bit resolution
• Includes RME's renowned TotalMix FX mixer and DIGICheck analysis software
• Word clock input and output for synchronization with other digital devices
• Stand-alone operation as a MADI repeater and router
• Compatible with Windows (7/8/10/11) and macOS (10.6 or later, including Apple Silicon)

In daily use

The MADIface USB excels in situations where you need to move many channels of digital audio with minimal fuss. Connect it to a MADI-enabled console, preamp, or converter, and you instantly have 64 inputs and outputs available in your DAW. The USB bus power means you can toss it in a laptop bag and record a live show without hunting for an outlet. TotalMix FX gives you flexible routing, monitoring, and effects, while DIGICheck provides precise metering and analysis. The unit's small footprint and robust build make it a reliable companion on the road or in the studio.

Full specifications

• Interface type: USB 2.0 (USB Type B connector)
• MADI channels: 64 input / 64 output (128 total)
• MADI optical I/O: 1x SC connector
• MADI coaxial I/O: 1x BNC connector
• Sample rates: up to 192 kHz
• Bit depth: 24-bit
• Word clock: 1x BNC input, 1x BNC output
• MIDI: MADI embedded MIDI (no dedicated physical ports)
• Power supply: USB bus-powered, optional external DC power supply
• Form factor: Desktop
• MADI standard: AES10
• Stand-alone operation: Yes (MADI repeater/router)

Final note

For professionals who demand high channel counts, low latency, and proven reliability, the RME MADIface USB is a compact powerhouse that turns any computer into a full-scale MADI recording and playback system.
