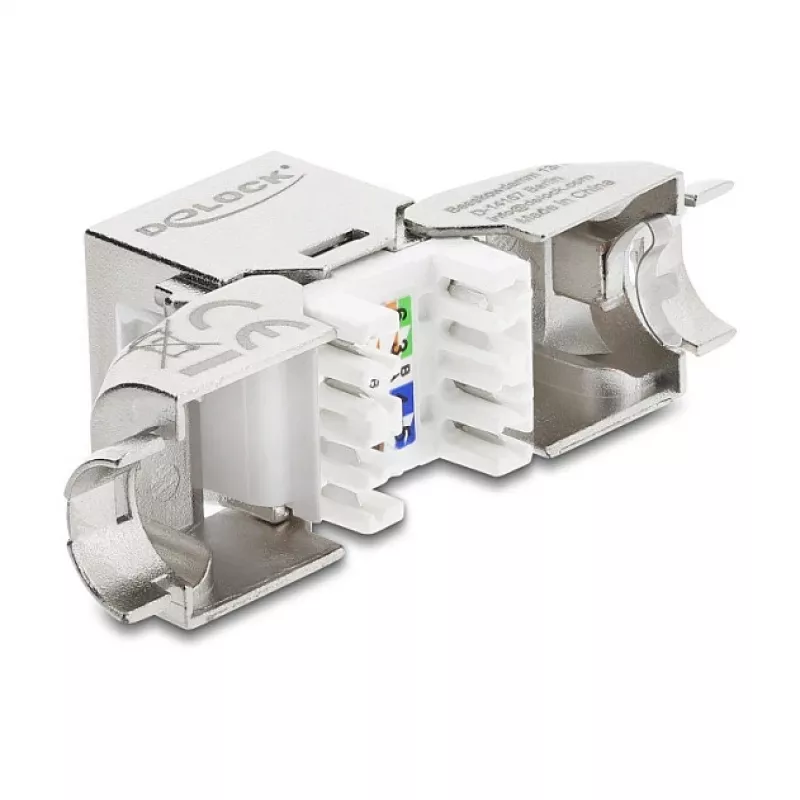

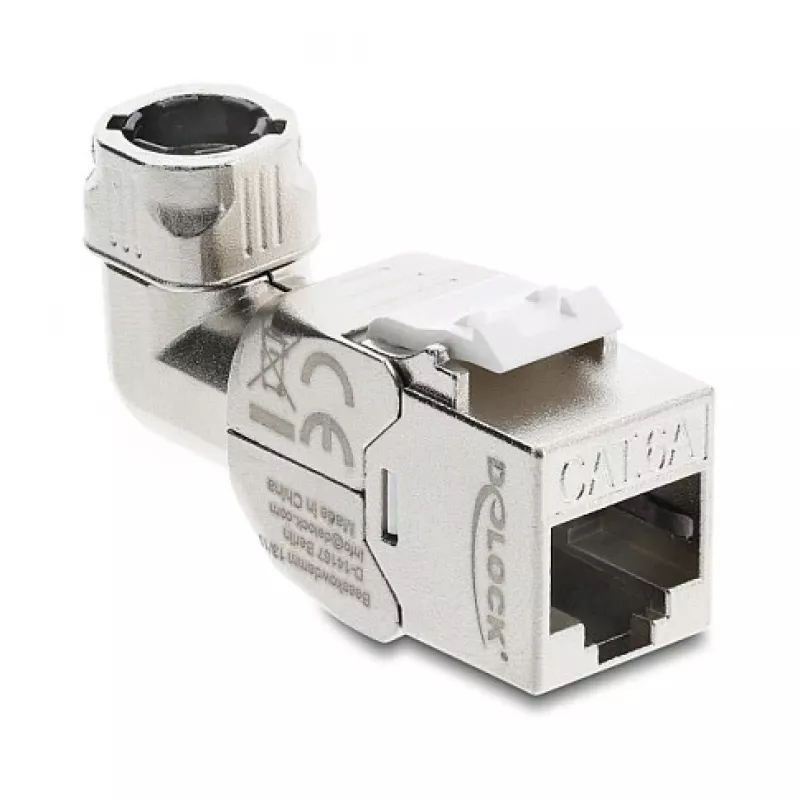

RJ45 Keystone Module Socket Cat.6A Tool-Free 90° DELOCK 90800

DELOCK Keystone RJ45 module Cat.6A tool-free 90° is a keystone socket designed for installation in patch panels, wall plates or surface-mounted boxes. The module supports Cat6A cabling and provides a compact, right-angle connection point suitable for structured cabling in offices, data rooms and residential environments. The tool-free design allows quick termination of twisted-pair cables without special crimping tools, and the 90° orientation helps manage space behind panels and plates.

Advantages

The keystone module offers tool-free cable termination, compatibility with Cat6A performance requirements and a space-saving right-angle form factor. It is designed for fast installation and replacement in standard keystone openings, minimizing downtime during wiring changes. The product provides reliable electrical contacts for high-speed Ethernet up to Cat6A specifications and maintains a compact footprint for dense installations.

Suitable for

Key specifications

How to use

Insert the keystone module into a compatible keystone opening in a wall plate, patch panel or surface box until it snaps into place. Prepare the cable by stripping the outer jacket to the recommended length, align the individual pairs according to the color code printed on the module, and insert each conductor into the corresponding tool-free termination slot. Press the conductors into the slots until seated; the IDC termination will cut through insulation and make contact. After termination, verify the connection by plugging in an RJ45 patch cable and testing with a network tester or by confirming link/activity on connected network equipment.

Recommendations

For reliable Cat6A performance, use appropriate Cat6A-rated cable and maintain proper cable management to avoid sharp bends near the 90° module. Verify pair alignment and seating during termination and test each port after installation to ensure signal integrity and correct wiring scheme.
