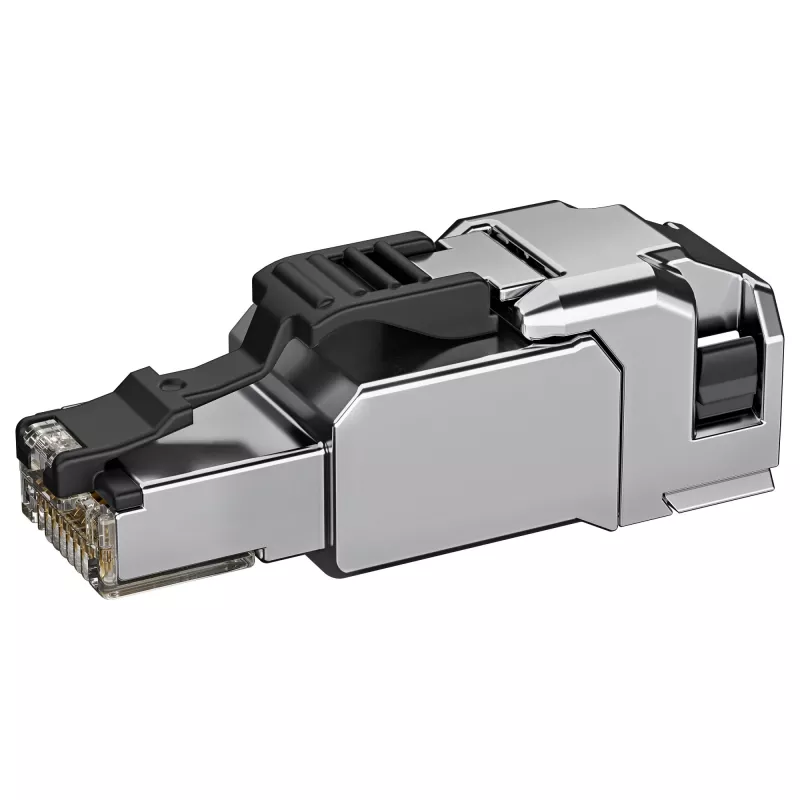

RJ-45 Connector Telegärtner 100035951 Silver Male 5mm Inner Diameter

The Telegärtner RJ-45 Connector 100035951 is a silver male RJ-45 plug designed to provide a reliable physical interface for Ethernet cabling. With an inner diameter of 5 mm and an outer diameter of 9 mm, this connector is intended for use with compatible cables and patch leads where a secure mechanical fit and consistent electrical contact are required. The product is supplied individually and is suitable for professional and home networking tasks where a standard RJ-45 male termination is needed.

Advantages

The connector combines a compact metal housing with dimensions that support stable insertion and retention in RJ-45 sockets. Its silver finish offers corrosion resistance and consistent conductivity for data signals. The defined inner and outer diameters enable predictable cable preparation and assembly, reducing variability during installation and ensuring repeatable terminations.

Suitable for

• Terminating stranded or solid Ethernet cables that match the connector's inner diameter
• Repairing or replacing male RJ-45 plugs on patch leads and short network cables
• Use in structured cabling, small office/home office (SOHO) networks, and equipment connections

Key specifications

• Connector type: RJ-45 male
• Housing finish: silver
• Inner diameter: 5 mm
• Outer diameter: 9 mm
• Supply: sold individually

How to use

Prepare the cable by stripping the outer sheath to expose the twisted pairs and trim conductors to the recommended length for the specific RJ-45 style. Insert the prepared conductors into the connector body according to the wiring standard in use (e.g., T568A or T568B) and ensure full seating to achieve proper contact. Use the appropriate crimping or assembly tool specified for metal RJ-45 plugs to secure the connector onto the cable, applying steady force until the termination is complete. Verify continuity and signal integrity with a network tester before final deployment.

Recommendations

Match cable diameter and conductor type to the connector's inner diameter to ensure mechanical fit. Use recommended tools for metal RJ-45 terminations, and test completed cables for continuity and pair integrity. Store unused connectors in a dry environment to avoid contamination or corrosion of contact surfaces.
