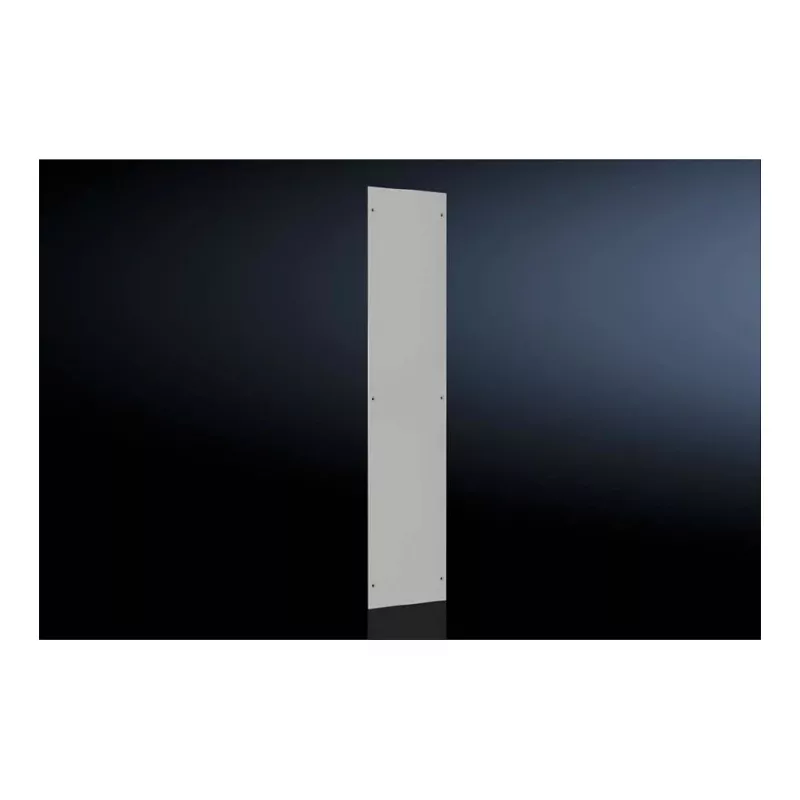

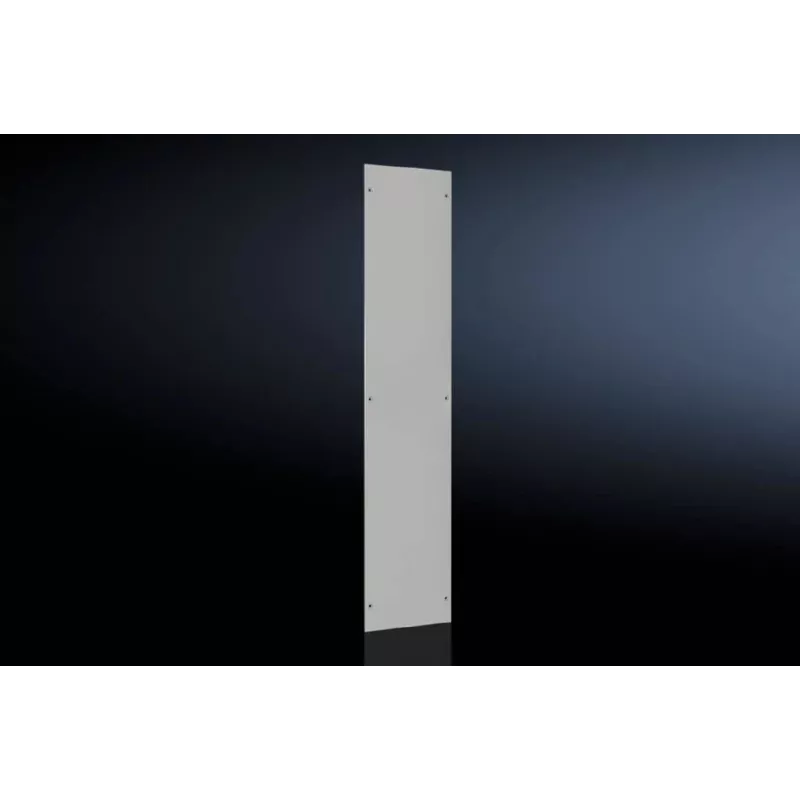

Rittal VX25 Side Panels, Screw-Fastened, for 1800x400mm Enclosures, 2-Pack, RAL 7035

Rittal VX25 Side Panels, Screw-Fastened, for 1800x400mm Enclosures, 2-Pack, RAL 7035
Rittal VX25 Side Panels, Screw-Fastened, for 1800x400mm Enclosures, 2-Pack, RAL 7035
Rittal VX25 Side Panels, Screw-Fastened, for 1800x400mm Enclosures, 2-Pack, RAL 7035
Rittal VX25 Side Panels, Screw-Fastened, for 1800x400mm Enclosures, 2-Pack, RAL 7035
R3,174
IP55 and NEMA 12 protection for your control cabinet starts with these Rittal VX25 side panels. Screw-fastened and solid, they seal the sides of 1800x400mm enclosures without ventilation openings, keeping dust and moisture out.OverviewThis 2-piece set is crafted from 1.5 mm sheet steel with a dipcoa... Read More
Stock 23 Code 3306862 Brand RITTAL Model 8184245 Warranty 2 Years

Shipping & Returns

Estimated delivery Thursday, October 22
You will be kept updated through our detailed tracking system
Payment options
EFTPayFastBank CardSnapScanZapperGoogle PayApple PayMobicredMoreTymePay on Arrival

IP55 and NEMA 12 protection for your control cabinet starts with these Rittal VX25 side panels. Screw-fastened and solid, they seal the sides of 1800x400mm enclosures without ventilation openings, keeping dust and moisture out.

Overview

This 2-piece set is crafted from 1.5 mm sheet steel with a dipcoat-primed, powder-coated finish in light grey (RAL 7035). The panels mount externally on the enclosure frame, and all assembly components are included for quick installation. They are designed specifically for the Rittal VX25 enclosure system, ensuring a precise fit and a professional appearance.

What stands out

  • Quick and easy screw-fastened installation
  • Solid design without ventilation openings
  • Compatible with Rittal VX25 enclosure system
  • Protection category IP55 / NEMA 12 when used with enclosure
  • Durable sheet steel construction with powder-coated finish

Technical details

  • Product Type: Side Panels
  • Enclosure System Compatibility: Rittal VX25
  • Mounting Type: Screw-fastened
  • Material: Sheet Steel
  • Material Thickness: 1.5 mm
  • Surface Finish: Dipcoat-primed, powder-coated
  • Colour: RAL 7035 (Light Grey)
  • Compatible Enclosure Height: 1800 mm
  • Compatible Enclosure Depth: 400 mm
  • Quantity per Pack: 2 pieces
  • Design: Solid, without ventilation openings
  • Installation Location: External
  • Protection Category (with enclosure): IP55 / NEMA 12
  • Supply Includes: 2 side panels, assembly components

Our verdict

For reliable side protection and a clean finish, these Rittal VX25 side panels are a solid choice. They install in minutes and maintain the integrity of your enclosure's ingress protection.

Specifications
Brand
RITTAL-WERK
Category
Panel & Plate
Certification
IP55 / NEMA 12
Country of origin
Germany
Depth
400 mm
EAN
4028177827752
Height
1800 mm
Model
8184245
Mounting type
Screw-fastened
MPN
8184245
Package depth
1900 mm
Package height
50 mm
Package width
450 mm
Product colour
Light Grey
Product type
Side Panels
Quantity
2
Weight
20.5 kg
Width
25 mm
