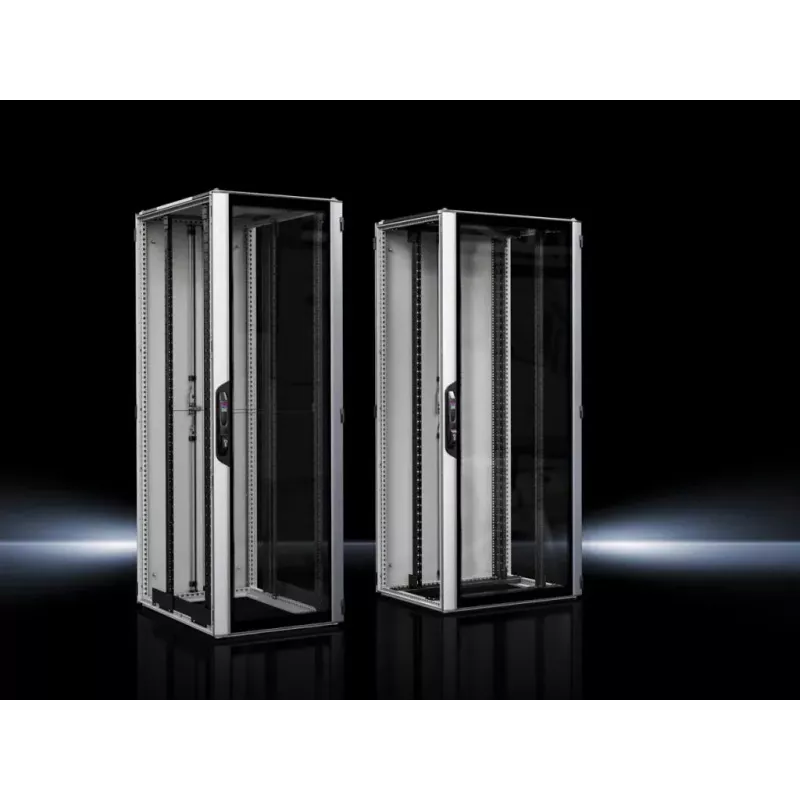

Rittal VX IT Network Cabinet 24U 19 inch 800x800x1200mm Light Grey/Jet Black

The Rittal VX IT network cabinet is a high-quality, versatile enclosure designed for professional IT and network installations. With 24U of rack space and a 19-inch mounting width, it provides ample capacity for servers, switches, and other network equipment. The cabinet features a robust self-supporting frame made from sheet steel and aluminium, ensuring stability and durability. Its symmetrical design allows for baying on all sides, making it ideal for building larger rack systems. The front and rear doors are perforated with 85% ventilation, ensuring optimal airflow for cooling. Side panels are removable and lockable for easy access and security. Cable entry is provided at the top and bottom with brush seals to prevent dust ingress. The cabinet includes two pairs of depth-adjustable 19-inch mounting rails, levelling feet, a baying kit, and 25 M5 cage nuts. With a static load capacity of 1000 kg and IP20 protection rating, this cabinet is suitable for demanding environments.

Advantages

High load capacity of 1000 kg, excellent ventilation with 85% perforated doors, flexible baying capability on all sides, and easy cable management with brush-sealed entries.

Suitable for

• Data centers and server rooms
• Network and IT infrastructure
• Industrial automation and control systems

Key specifications

• Rack Units: 24U
• Rack Standard: 19 inch (48.3 cm)
• External Dimensions (W x D x H): 800 x 800 x 1200 mm
• Colour: Light Grey (RAL 7035) / Jet Black (RAL 9005)
• Material: Sheet steel, aluminium
• Static Load Capacity: 1000 kg
• Protection Rating: IP20
• Front Door: Perforated single door, 85% ventilation
• Rear Door: Perforated split door, 85% ventilation
• Side Panels: Removable, lockable
• Cable Entry: Top and bottom, brush-sealed
• Mounting Rails: Two pairs of 19" mounting rails, depth-adjustable
• Frame Construction: Symmetrical, self-supporting frame
• Baying Capability: Yes, bayable on all sides
• Grounding: Central grounding point, pre-configured grounding straps
• Included Accessories: Levelling feet, baying kit, 25x M5 cage nuts

Recommendations

For optimal performance, ensure proper ventilation and use cable management accessories to maintain airflow. This cabinet is ideal for medium to large network deployments requiring high density and scalability.
